Kjeldahl Nitrogen Analyzer for Protein Testing
Kjeldahl Nitrogen Analyzer for Protein Testing

Kjeldahl Nitrogen Analyzer for Protein Testing

Brand:NANBEI

Model:KDN

Application:Agriculture,Industrial,Medicine and Acakemy

product details

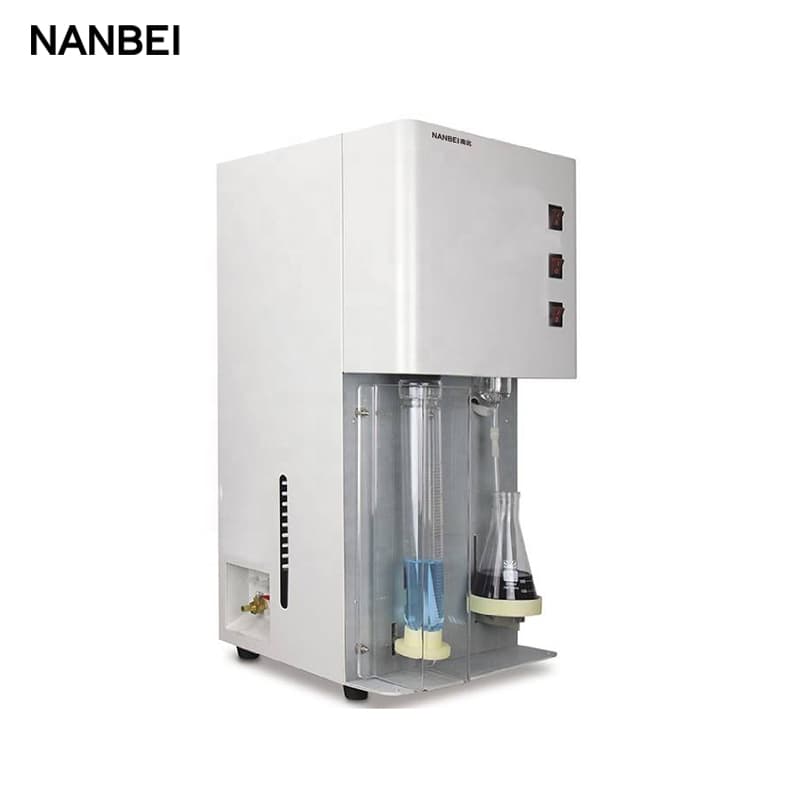

Kjeldahl Nitrogen Analyzer for Protein Analysis

Application

Kjeldahl Nitrogen Analyzer widely used for protein content and nitrogenious compounds testing analysis in soil,feed,food,grain,milk,drink,water,medicine and chemical industry.

Product introduction

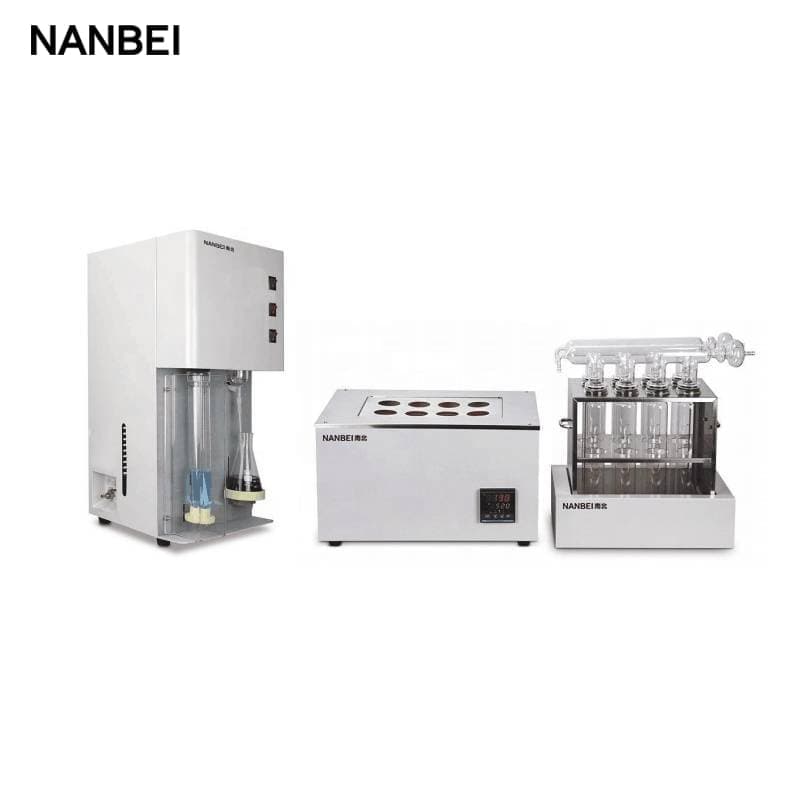

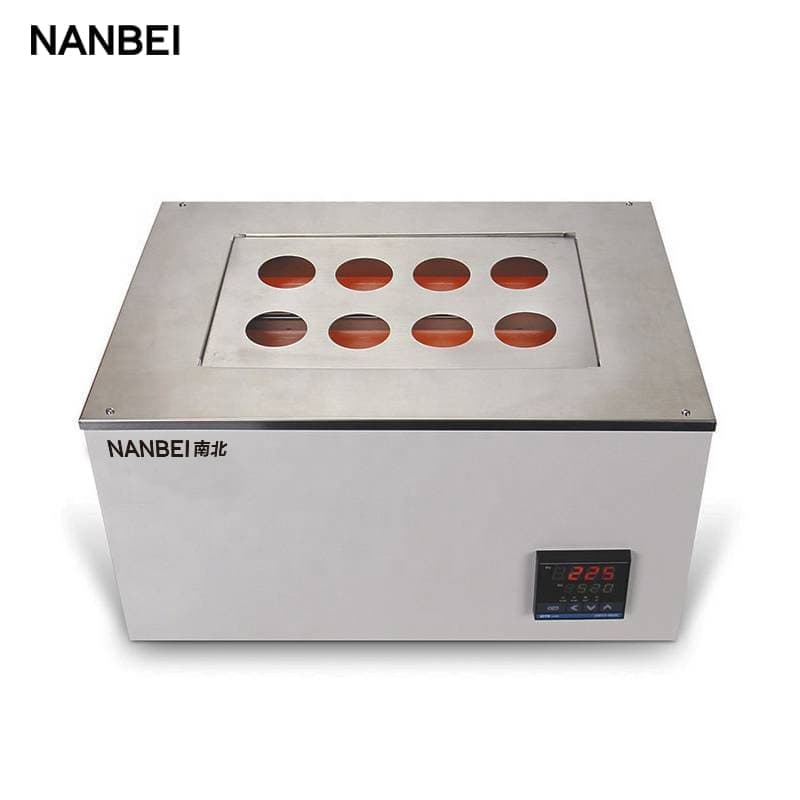

Tap water source supply,including 4holes digital Digestion furnance.For process control by microcomputer,Automatic water distillation control, automatic water level control, automatic water-break control and water pressure too low alarm automatically.

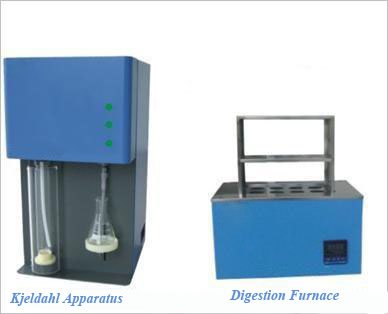

kdn 1.jpg

Model

KDN-04C

KDN-04D

KDN-08C

KDN-08D

KDN-12C

Description

Tap water supply, 4holes digital digestion furnance

Tap water supply,4holes digital Graphite digestion furnace



Tap water supply, 8holes digital digestion furnance

Tap water supply,8holes digital graphite digestion furnance

Tap water supply,12holes digital digestion furnance

Techincal parameters

Measure item:Food,feed,milk,drink,soil,water,meat,grain,medicine,chemical and so on;
Work type:Semi-automatic
Water input type:Tap water,distilled water
Sample capacity: Solid : 0.20g~2.00g;Semi-solid : 2.00g~5.00 g;Liquid : 10.00ml~25.ml
Measure range:0.1mgN~200mgN
Recovery:≥99%;
Distillation speed:5~ 15 min/sample
Cooling water consumption:3L/min
Repeatability:<±1%
Power supply:AC220V/50Hz
Power:1000w
Water supply:Water pressure >1.5MPa;Water temperature < 20°
Dimension:380*320*670mm
Weight:20kg

kjeldahl nitrogen analyzer
