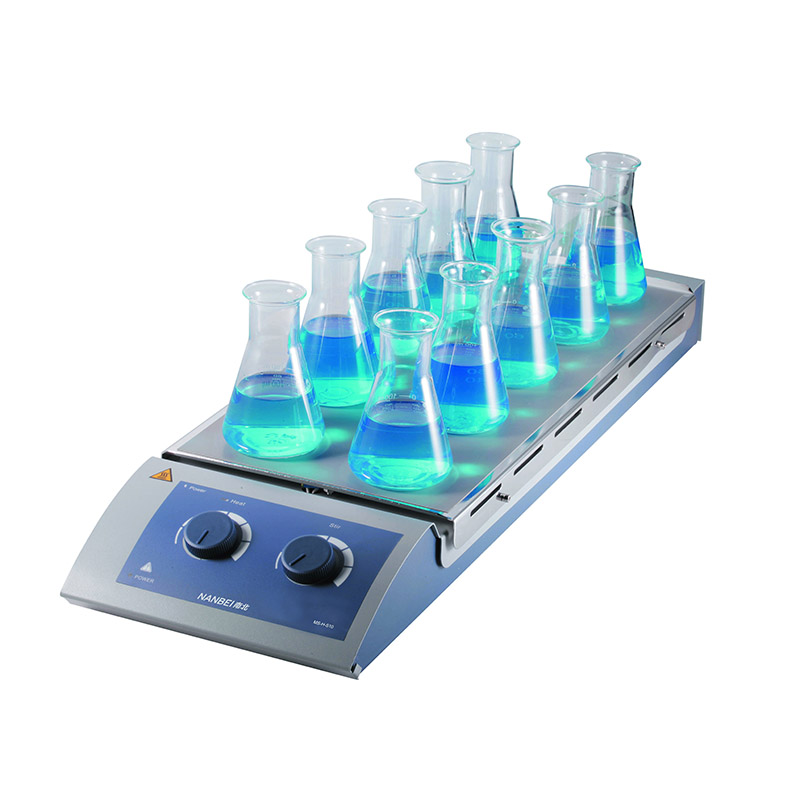

10 channel heated magnetic stirrer NB-H-S10
10 channel heated magnetic stirrer NB-H-S10

10 channel heated magnetic stirrer NB-H-S10




product details

Key Features
•   Maintenance-free brushless DC motor
•   Max speed 1100rpm
•   Max.temperature 120°C
•   Stainless steel work plate, covered with silicone cushion, provides the excellent performance of heating uniformity and skid resistance


Work plate Dimension180x450mm
Work plate materialStainless  steel with silicone
Motor typeBrushless DC motor
Motor rating input12W
Motor rating output4W
Heating output470W
Voltage100-120/200-240V  50/60Hz
Stirring positions10
Max. stirring quantity[H2O]0.4Lx10
Max. magnetic bar[length]40mm
Speed range0-1100rpm
Speed displayscale
Temperature displayscale
Heating temperature rangeRoom temp.-120°C
Over  heat Protection140°C
Temperature  display accuracyIP42
Dimension [W x D x H]182×622×65mm
Permissible ambient temperature and humidity
5-40℃ 80%RH

Order Info

Cat. No.P/NDescriptionsPower supply
8030140000NB-H-S1010-Channel Classic Hotplate Magnetic Stirrer, stainless steel plate with silicone film,heating temperature up to 120°CUSA plug,100V-120V/50Hz/60Hz
Cn plug,200V-240V/50Hz/60Hz
Euro plug,200V-240V/50Hz/60Hz
UK plug,200V-240V/50Hz/60Hz
Cat. No.P/NDescriptions
18900006MSBAR10Stirrer bar(10mm x 6mm),1pc/pk
18900007MSBAR15Stirrer bar(15mm x 8mm),1pc/pk
18900008MSBAR20Stirrer bar(20mm x 8mm),1pc/pk
18900009MSBAR25Stirrer bar(25mm x 8mm),1pc/pk
12500005MSBAR30Stirrer bar(30mm x 6mm),1pc/pk
18900011MSBAR40Stirrer bar(40mm x 8mm),1pc/pk
