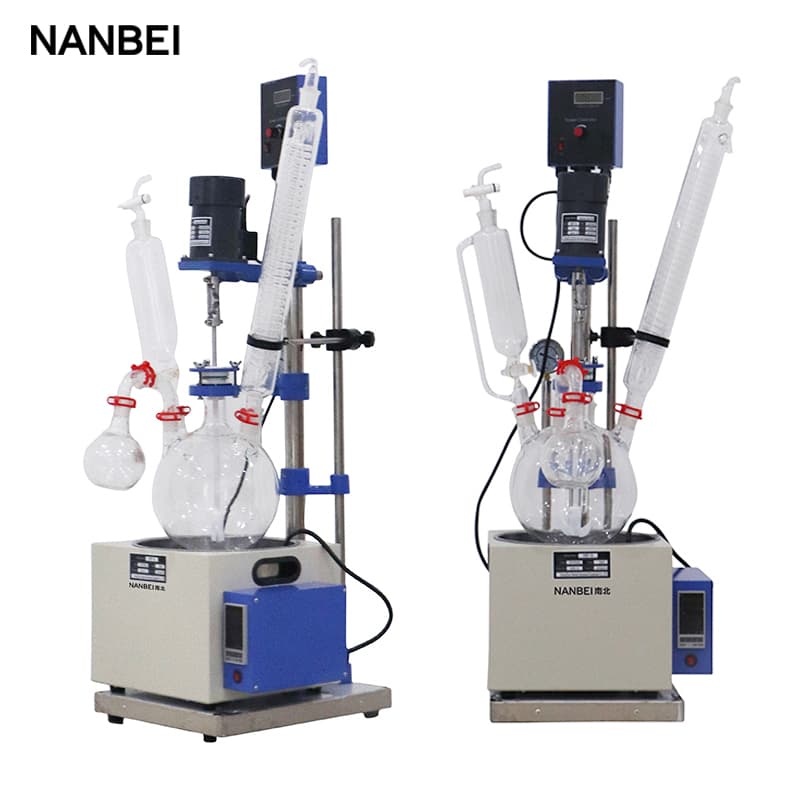

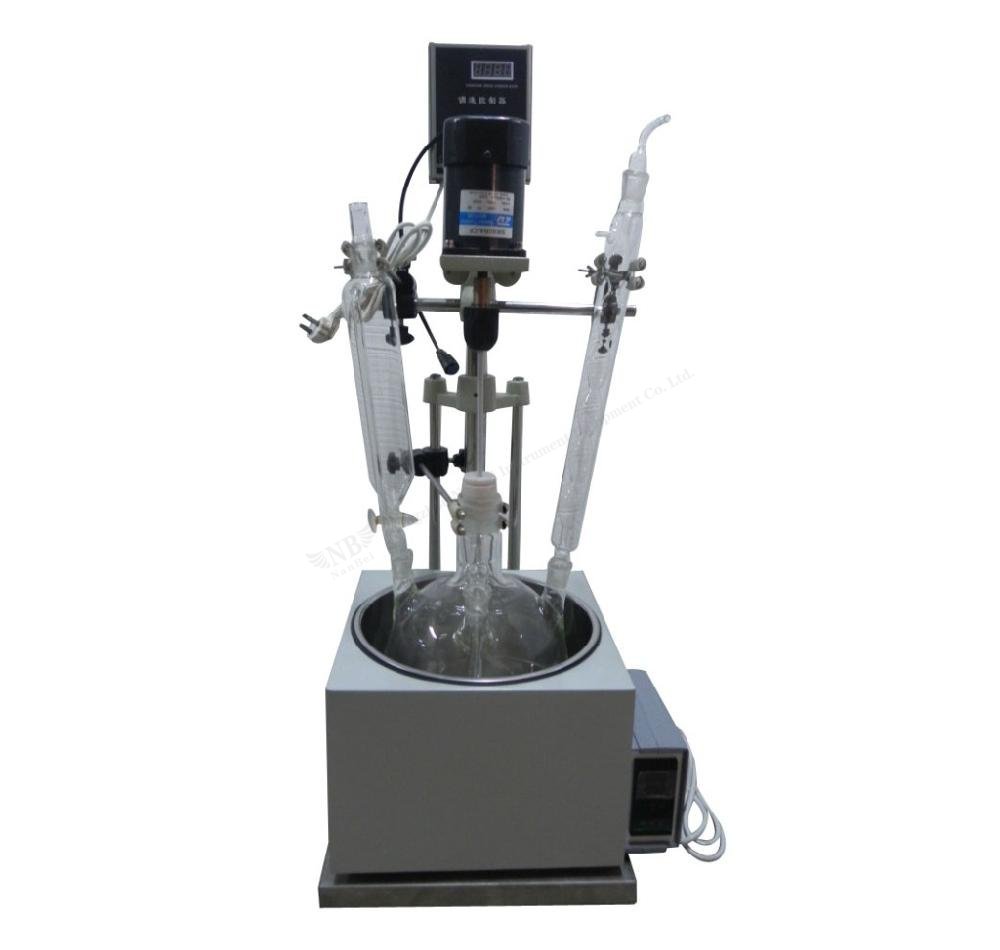

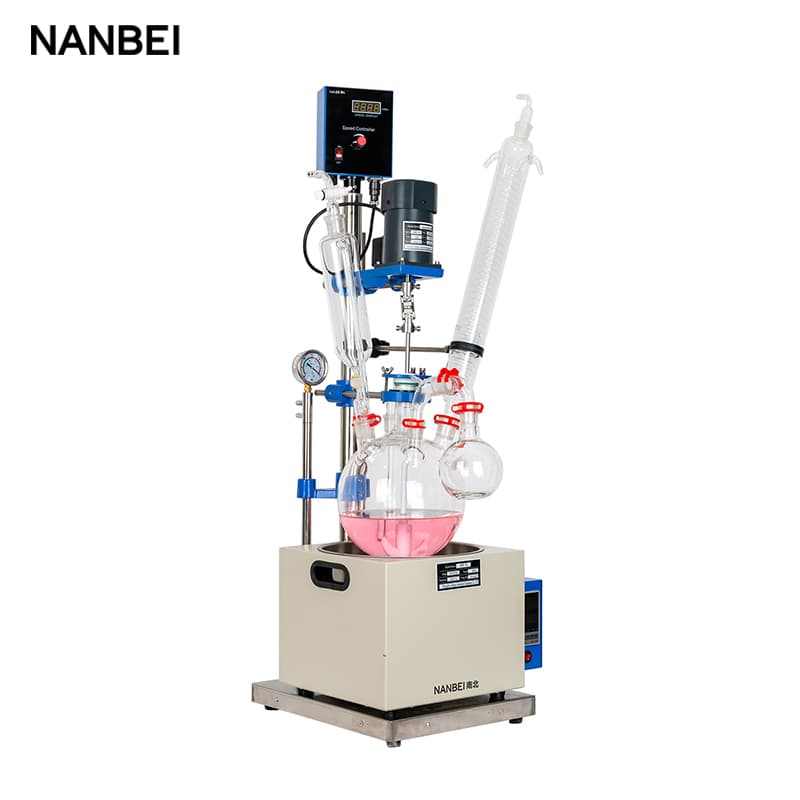

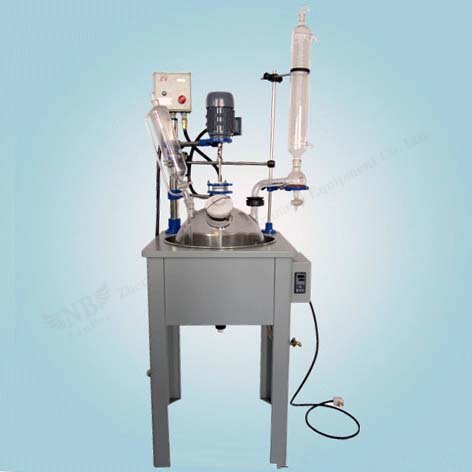

5L Single Glass Reactor
5L Single Glass Reactor

5L Single Glass Reactor

Brand:NANBEI

Model:NBF-5L

Application:

product details

5-100L Single glass reactor multifunctional glass reactor


Brief Introduction:

Single glass reactor inner placed reaction solvent which can be stirred, interlayer can be filled with cold or hot liquid(frozen liquid, water, gas or hot oil) to do the thermostatic heating/cooling reaction, single layer glass reaction kettle is heated by computer control oil bath or electric heating. At the same time, it can be worked at atmospheric pressure or vacuum state, to control the reaction solution reflux and distillation, it is the ideal equipment for modern synthesis chemical, biological pharmaceuticals and making new materials, used for preparation experiment and production equipment.

Working principle:

Under the condition for setting the constant temperature, in a closed glass container, at atmospheric pressure or negative pressure by stirring, reaction, it can control the reaction solution's evaporation and reflux.

06-IMG_9769 (1).jpg

Product Features:

1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;
2. Supporting glass using GG3.3 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)

 glass reactor

Technical parameters:

Model

NBF-5L

NBF-10L

NBF-20L

NBF-30L

NBF-50L

NBF-80L

NBF-100L

Stirring Power(W)

40W

90W

90W

90W

120W

120W

120W

Rotational Speed(rpm)

1000

600

600

600

600

600

600

Stirring Shaft Diameter(mm)

Φ8

Φ12

Φ12

Φ12

Φ12

Φ12

Φ12

Heating Power(W)

2000

3000

3000

3000

7000

7000

7000

Power Supply(V/Hz)

220V/50Hz,110V/60Hz(can be customized)

Remark: This product is for civilian use only


 Related instruments:

Jacketed glass reactor Ex-proof single glass reactor

single layer glass reactor

jacketed glass reactor
More details, pls click here More details, pls contact us

Matched instruments:

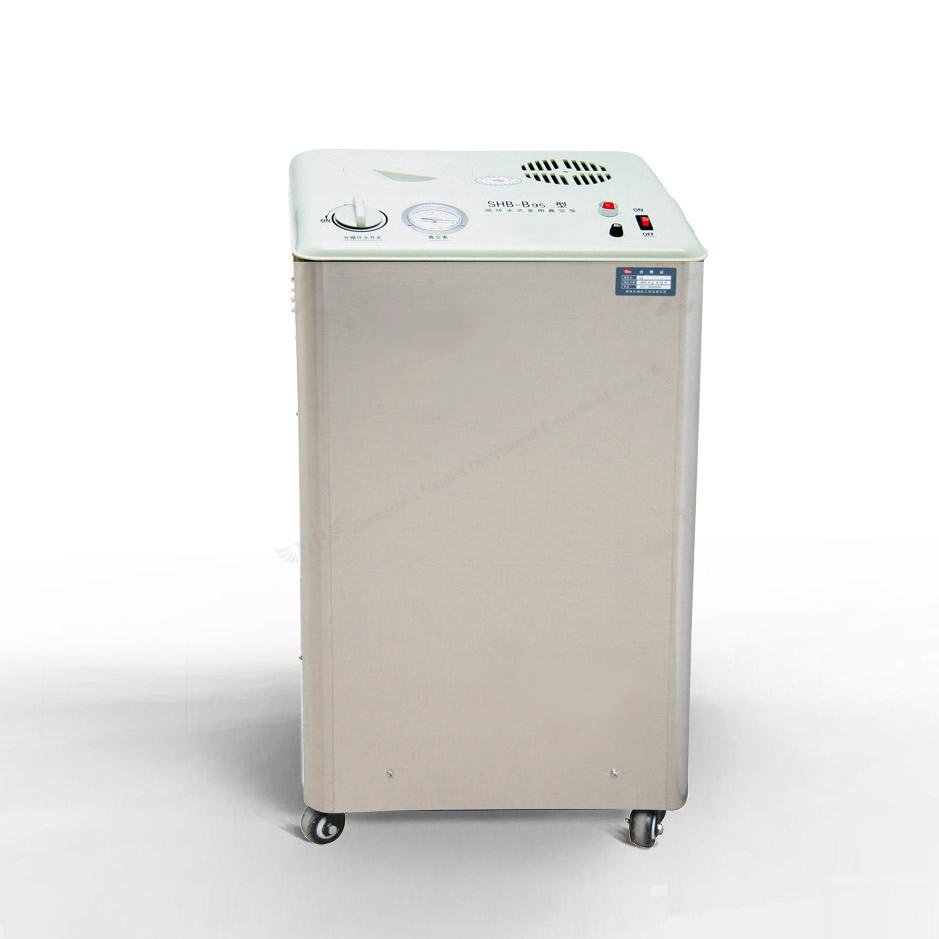

Cooling instrument Heating instrument Vacuum pump
