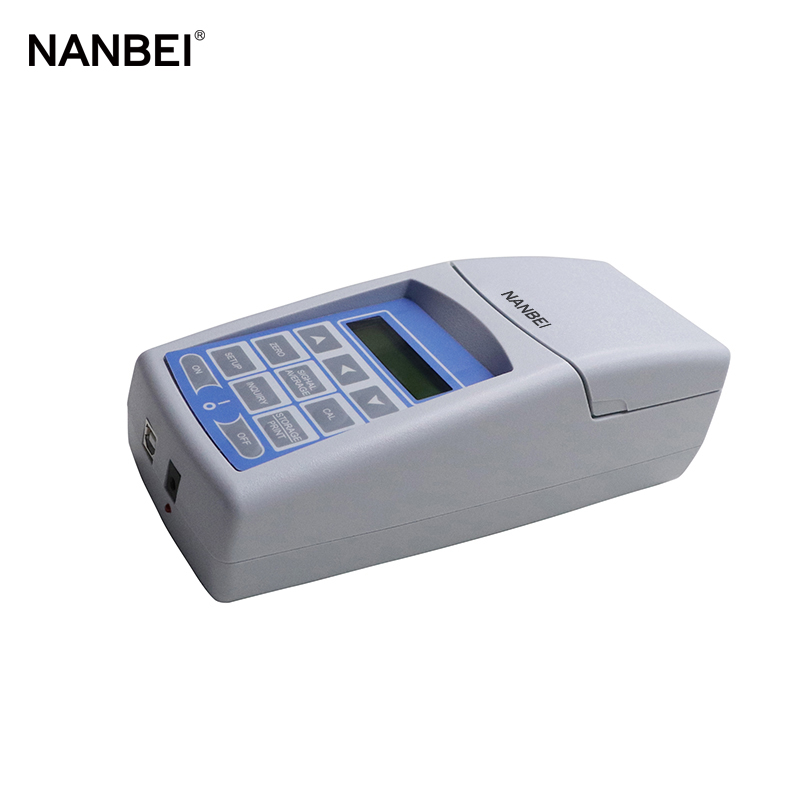

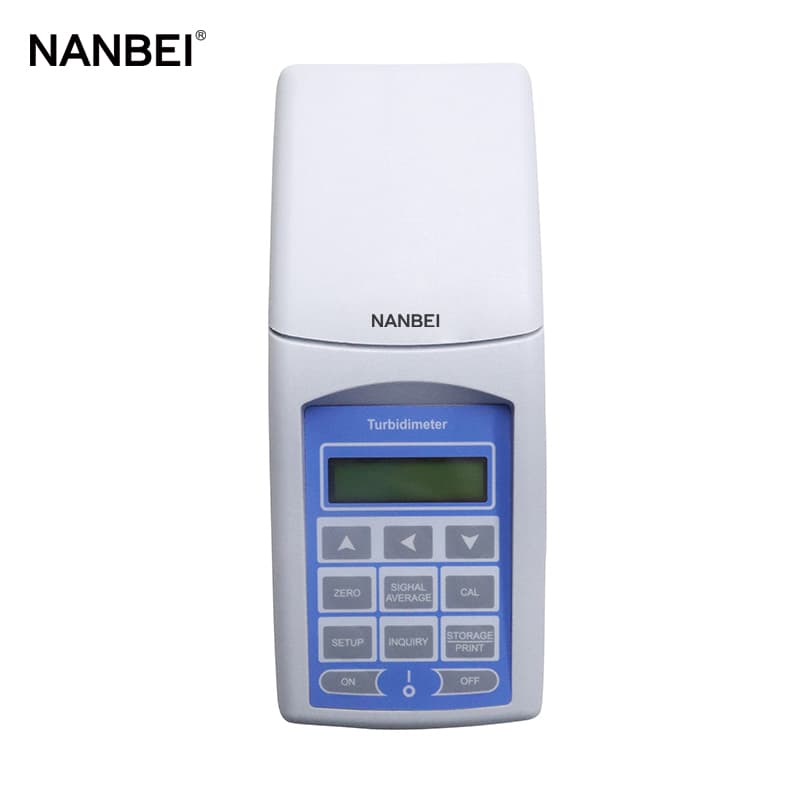

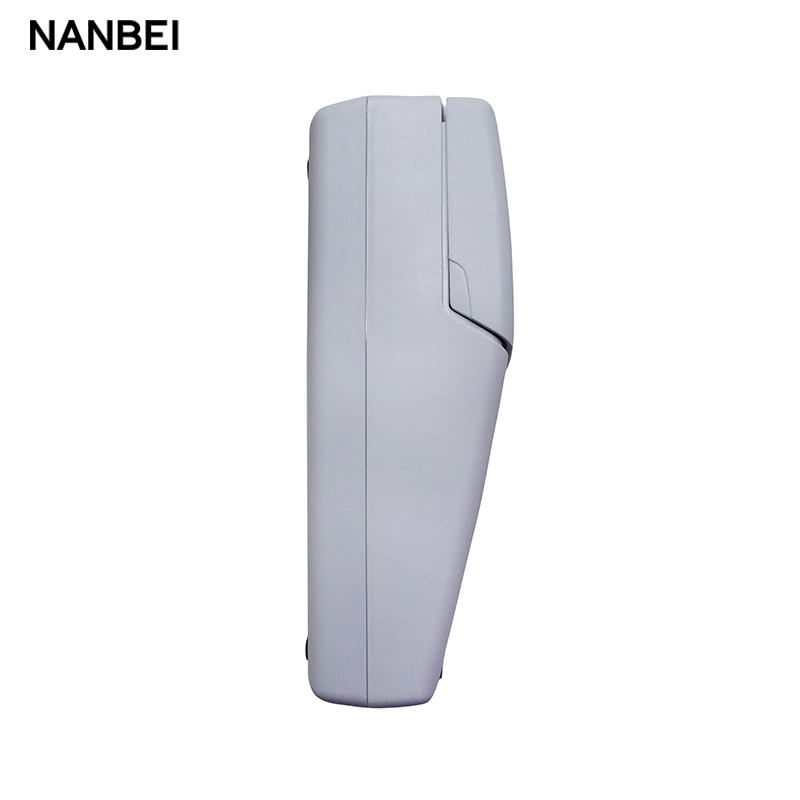

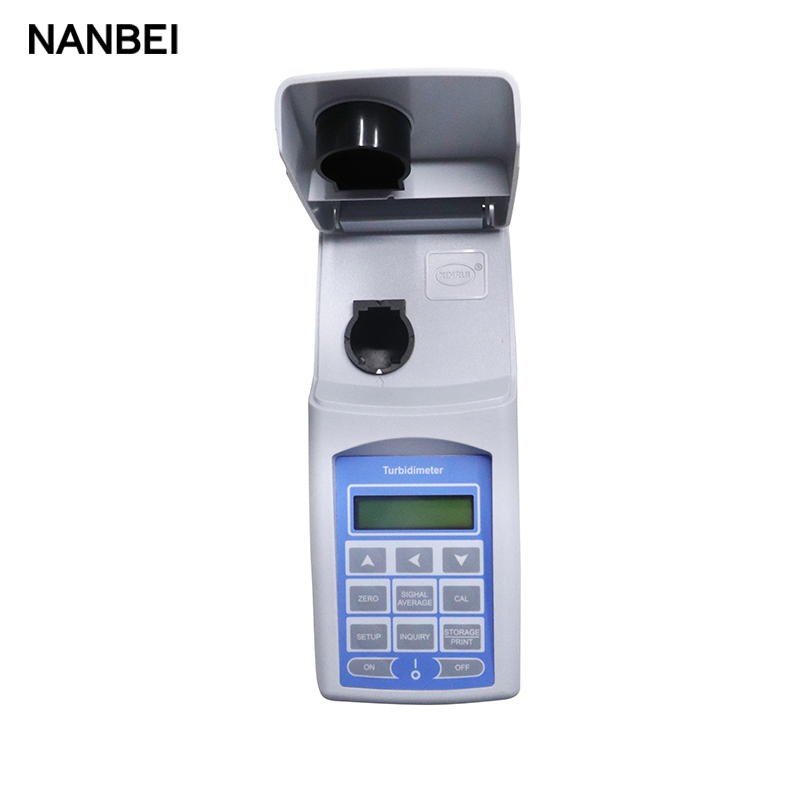

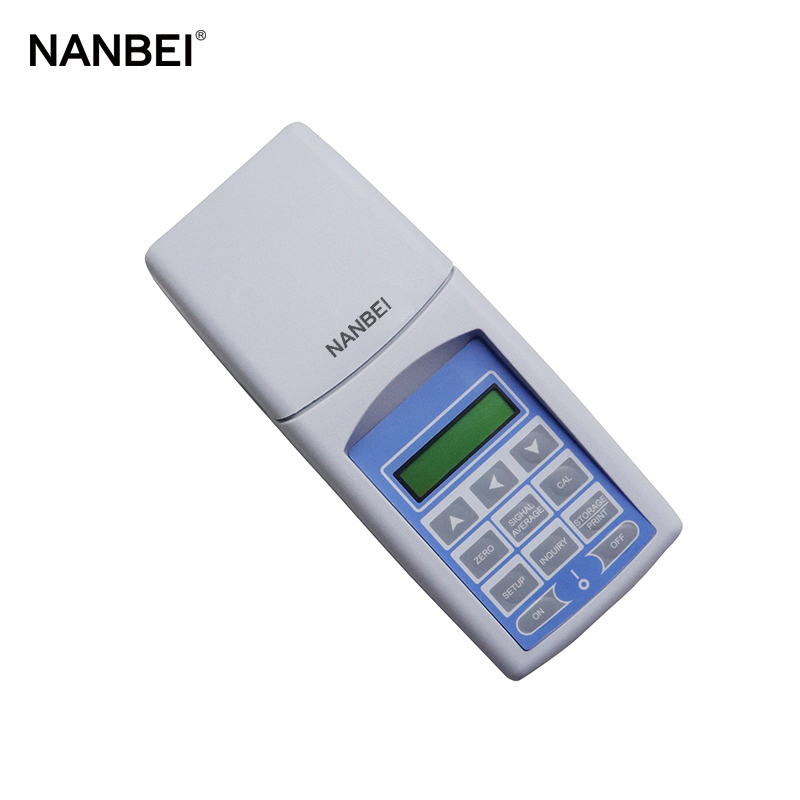

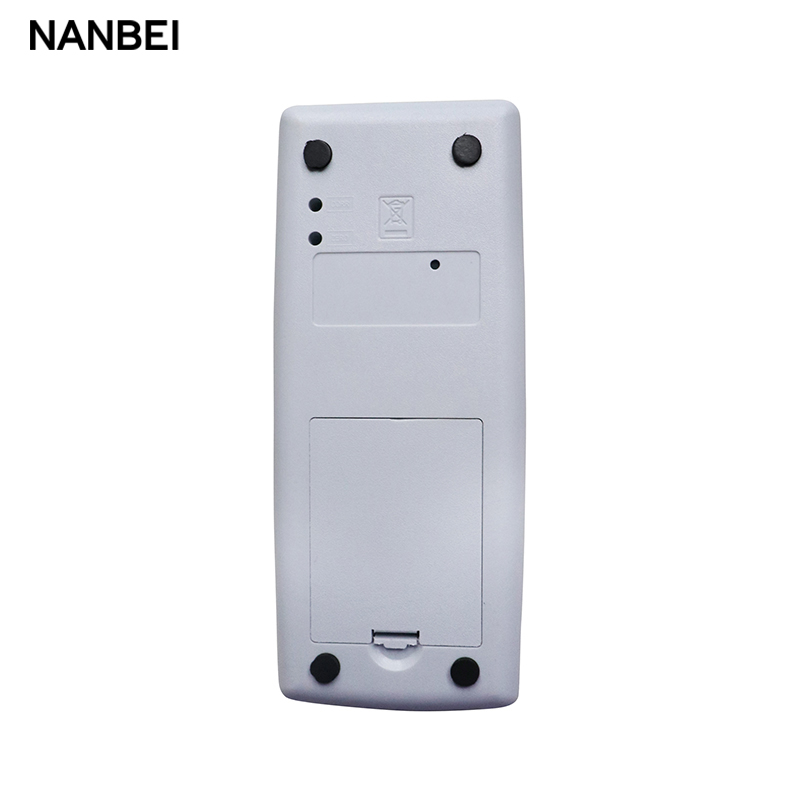

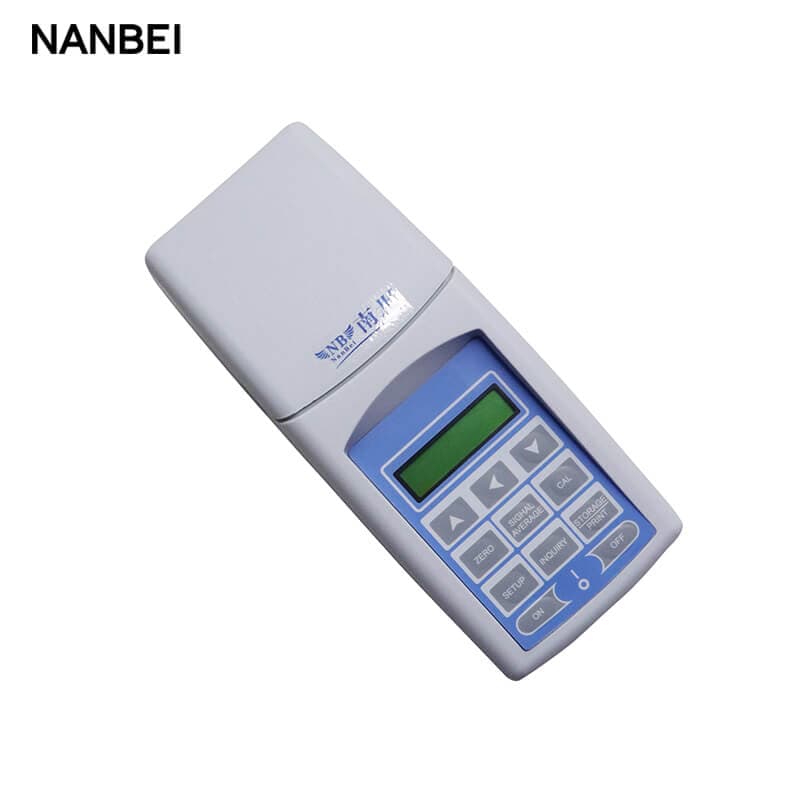

WGZ-500B Portable Turbidimeter
WGZ-500B Portable Turbidimeter

WGZ-500B Portable Turbidimeter

Brand:NANBEI

Model:WGZ-500B

Application:

product details

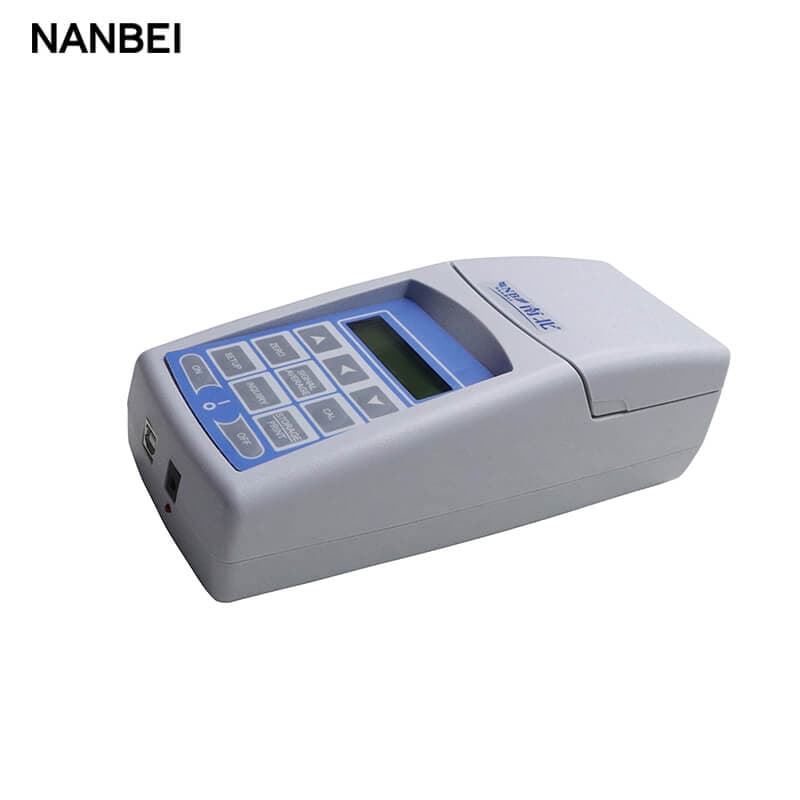

WGZ-500B Portable Turbidimeter



Summary of functions

Scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters. It adopts the Formazine standard solution of turbidity specified in international standard ISO7027, and NTU as the measure unit

It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.


Product characteristics

A、 AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

B、 Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

C、The configuration with the high-automatic & multi-function microcomputer, equipped with the RS232 serial communication interface to connect the printer.

D、The imbedded clock memory & storage system can store the measurement & correction data in real time, and can store and transfer 20 groups of the measurement data for long time, and can be used for the historic reference.

E、The quick automatic correction, with the prompt of the self-diagnosis information, rapid and stable response, reliable maintenance-free operation


Specifications

Model

WGZ-500B

WGZ-2B

WGZ-3B

WGZ-4000B

Minimum Principle

90°scattered light

Minimum readout(NTU)

0.01

0.001

0.01

0.001

Measuring range(NTU)

0-50

0-500

0-10

0-100

0-500

0-10

0-100

0-1000

0-10

0-100

0-1000

0-4000

Basic error F.S

±6%(±2%F.S)

Repeatability

≤0.5%

Zero draft(NTU)

±0.5%F.S

Power supply

DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter

characteristics

Microcomputer configuration, with average measurement mode, on time display,

data storage and query functions, range switch, automatic to zero and 1 to 5 automatic calibration, equipped with RS232 communication interface,

data can be allocated to external micro printer.

Similar types

WGZ2000/2000A/4000/4000A

WGZ-200A/2A/2/3/3A/100

WGZ-20S/1A/200S

 turbidity meter

 benchtop turbidimeter

 turbidity meter 4000ntu

WGZ-20B/1B/200B

WGZ-1/200/800

WGZ-2PJ/2PJP

portable ratio turbidimeter



automatic turbidimeter

ntu online turbidity meter

WGZ-2XJ/2XJP

WGZ-1C/2C/3C/200C

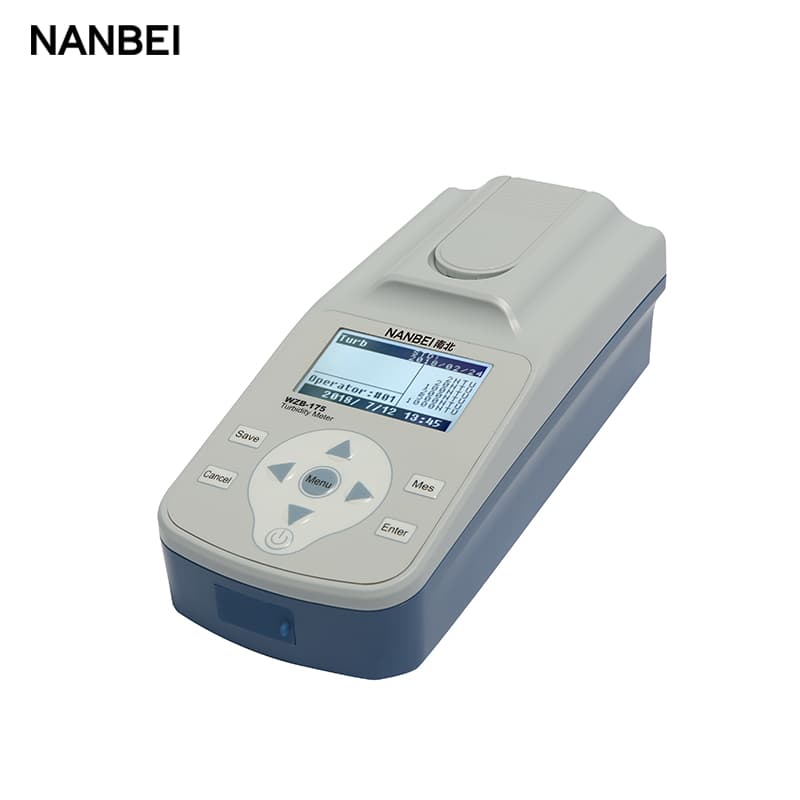

WZB-175
