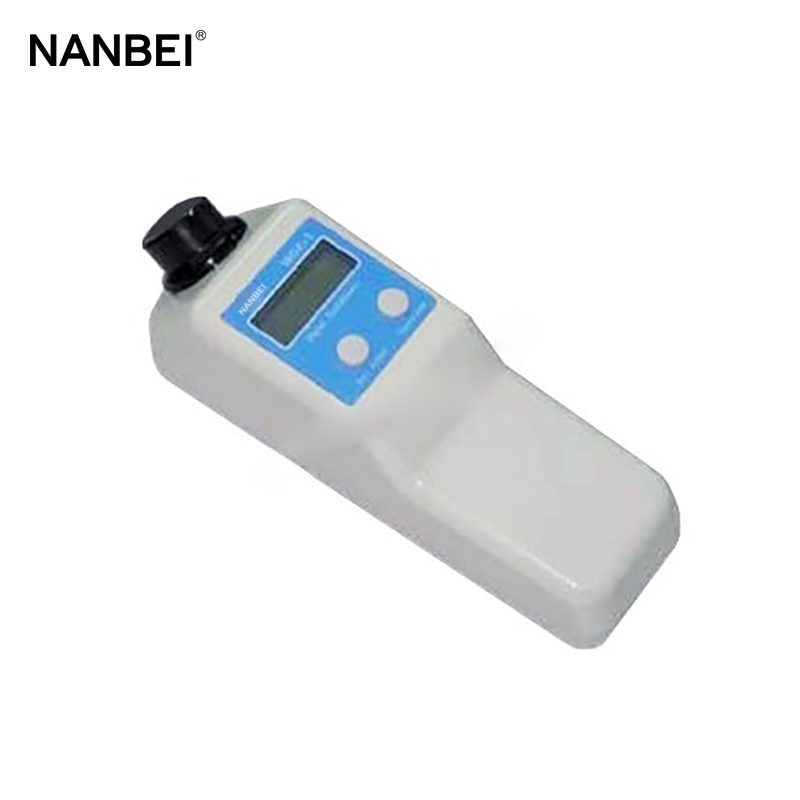

WGZ-20B Portable Turbidimeter
WGZ-20B Portable Turbidimeter

WGZ-20B Portable Turbidimeter

Brand:NANBEI

Model:WGZ-20B

Application:

product details

Summary  of  functions

WGZ Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters

It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.

Product  characteristics

a) AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

b) Configured with auto power-off function and low power dissipation circuit, able to effectively prolong service life of battery;

c) Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

d) Adopting low-drift and high-accuracy integrated circuit, efficient and timeproof light source, effectively ensuring long reliable performance

e) Unique locative structure and high-accuracy light path system, effectively ensuring exactness and repeatability;

f) Low voltage indication, cuing users to change battery, to ensure exact and effective measurement;

g) Configured with output port of measured values, possible to connect with recording meter

Specifications

Model

WGZ-20B

WGZ-1B

WGZ-200B

Minimum Principle

90 º scattered light



Minimum readout NTU

0.01

0.1

0.01

Measuring range NTU

0-20

0-200

0-20  0-200

Basic error F.S

±8%(±2.5%F.S)

Repeatability

≤1%

Zero draft NTU

±1%F.S

Power supply

DC 1.5V, 5 AA alkaline dry cells AC 220/110V 50/60Hz DC7.5V 0.2A power supply adapter

External dimension

235*75*65 mm

Characteristics

LCD display, LED light source, power off automatically, AC and DC using.
