EX-TE Series Multi-functional Extraction Tank
EX-TE Series Multi-functional Extraction Tank

EX-TE Series Multi-functional Extraction Tank

Brand:NANBEI

Model:EX-TE series

Application:

product details

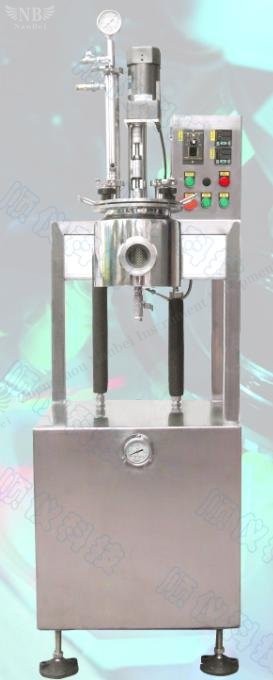

extraction tank
EX-TE series multi-functional extraction tank is special design for R & D purposes, be used in field of herbal extraction, natural material, food herbal medicine etc, including distill, water decoct, hot cycle, infiltrate cycle. the type of distill is dynamic, and efficiency is high.


FEATURES
1、Small volume, small batch:6 series:
     Model EX-TE-01/03/10/30/50/100
2、Simple operation, high efficiency, high automatic
3、Built in heater, no steam required
4、Distill temperature can be controlled and display
5、Tank is designed double wall to protect temperature
6 、Central control available, expansion channel reserved
    exams in batches flexible
7、Equipment components: main tank, whisk motor, condenser inlet jaw, heater, temperature controller, outlet valve, underprop etc.
8、Data as below can be logged in-line:
Temperature time   PH Value  Vacuum Degree  Mix Speed  Mix Level Inspection






TECH.DATA

TYPE

EX-TE-03 EX-TE-05

EX-TE-10



EX-TE-30


EX-TE--50 EX-TE-100
VOLUME(L) 3 5 10 30 50 100
HEAT POWER(KW) 3 4.5 5 8 12 15
MIX POWER(KW) 0.09 0.09 0.12 0.2 0.25 0.5

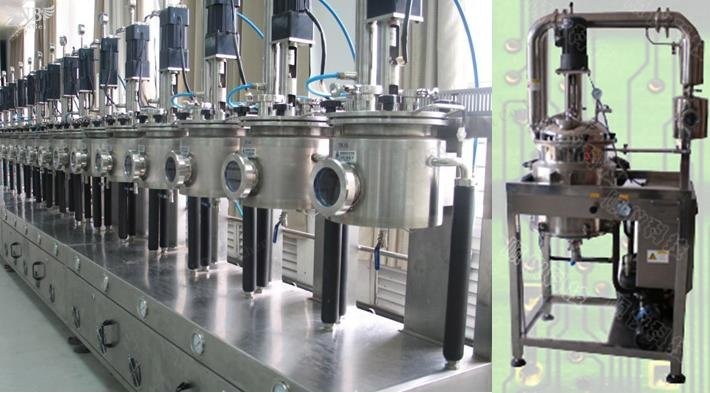

 vacuum extracting concentrator
