TM-XD35J 35L Table Top Steam Sterilizer
TM-XD35J 35L Table Top Steam Sterilizer

TM-XD35J 35L Table Top Steam Sterilizer

Brand:NANBEI

Model:TM-XD35J

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

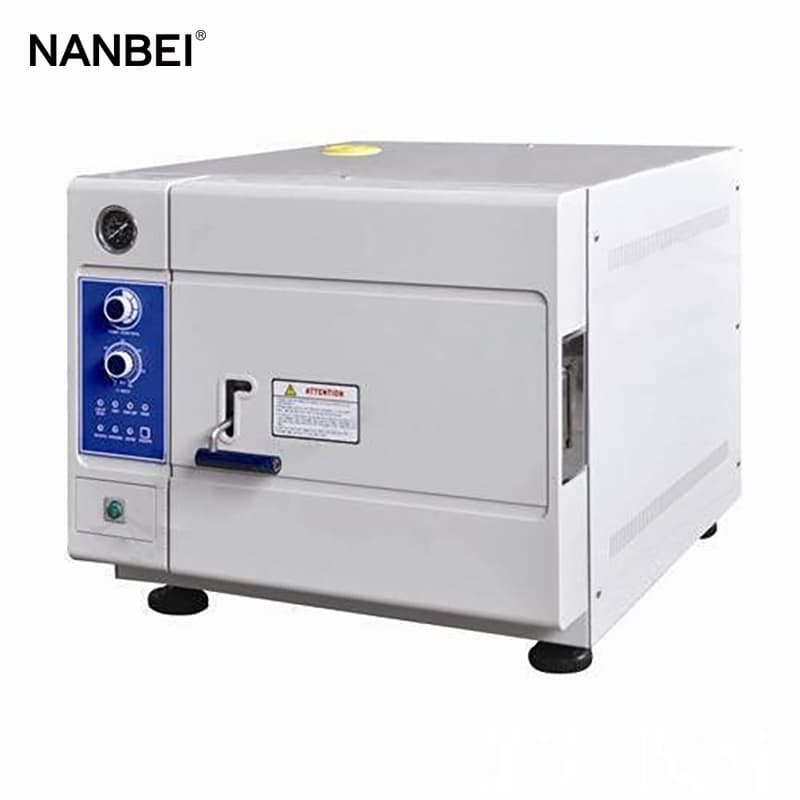

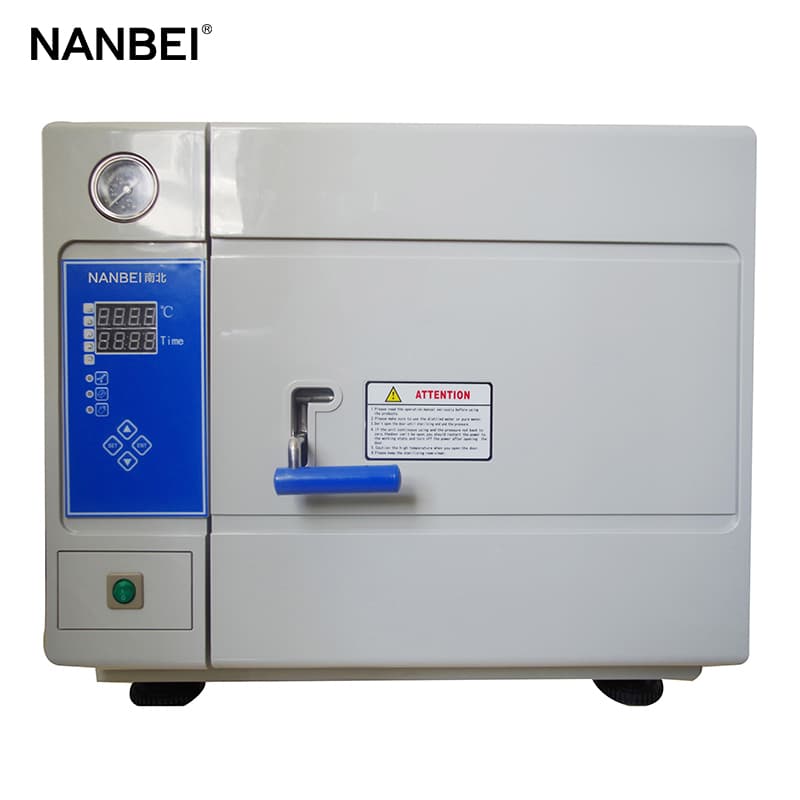

Table top steam sterilizer


Characteristics:

1.Indicator light indicates working state.

2.For 4~6 minutes rapidly sterilizing.

3.Sterilizing temperature and time can be preset.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Over temperature & over pressure auto-protection.

6.Safe protection of water lacking.

7.Exhaust the cool air automatically.

8.Door safety lock system.

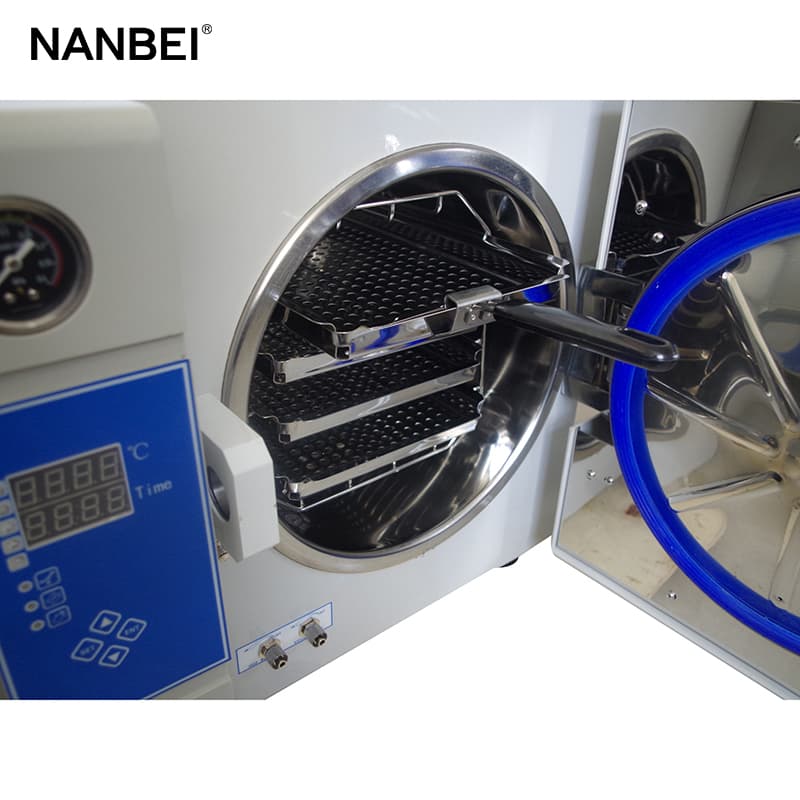

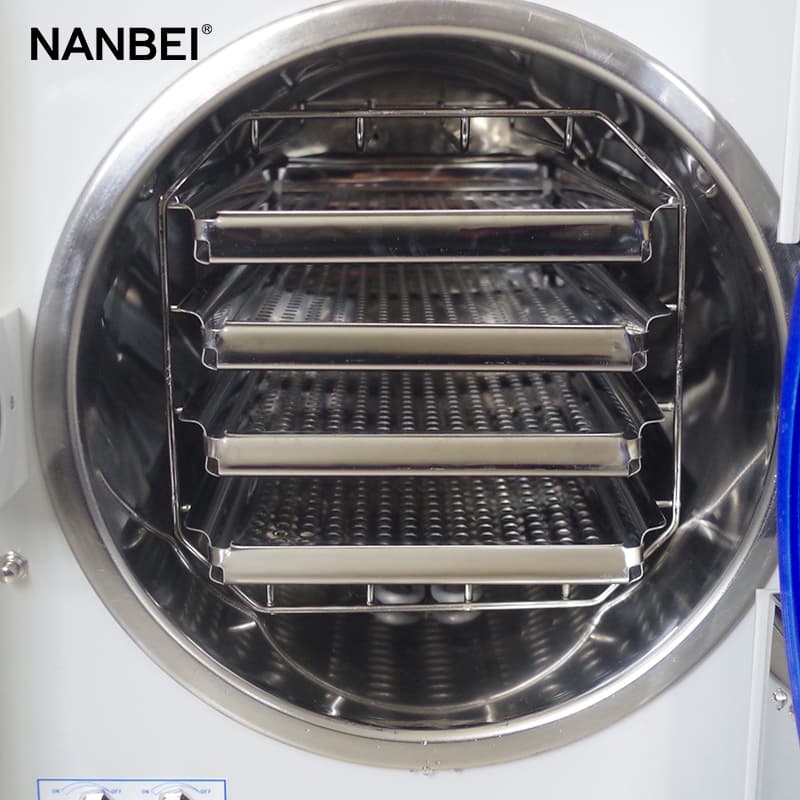

9.With three stainless steel sterilizing plates.

10.The chamber of the sterilizer is made of stainless steel.

11.Automatically shut off with beep reminding after sterilization.


Technical data:

MODEL TECHNICAL DATA
TM-XD35J
TM-XD50J
Sterilizing chamber volume
35L (φ300×500 mm)
50L(φ340×550 mm)
Working pressure
0.22Mpa
Working temperature
134℃
Adjustment of temperature
105-134℃
Timer
0-60 min
Heat average
≤ ± 1℃
Power
2.7 KW / AC220V 50Hz
Sterilizing plate
400×200×30 mm
 (4pieces)
500×250×30 mm
(4pieces)
Dimension
730×550×510 mm
770×600×540 mm
Package dimension
820×680×650 mm
880×730×700 mm
G. W/N.W
95/80 kg
112/93 kg

Details:
