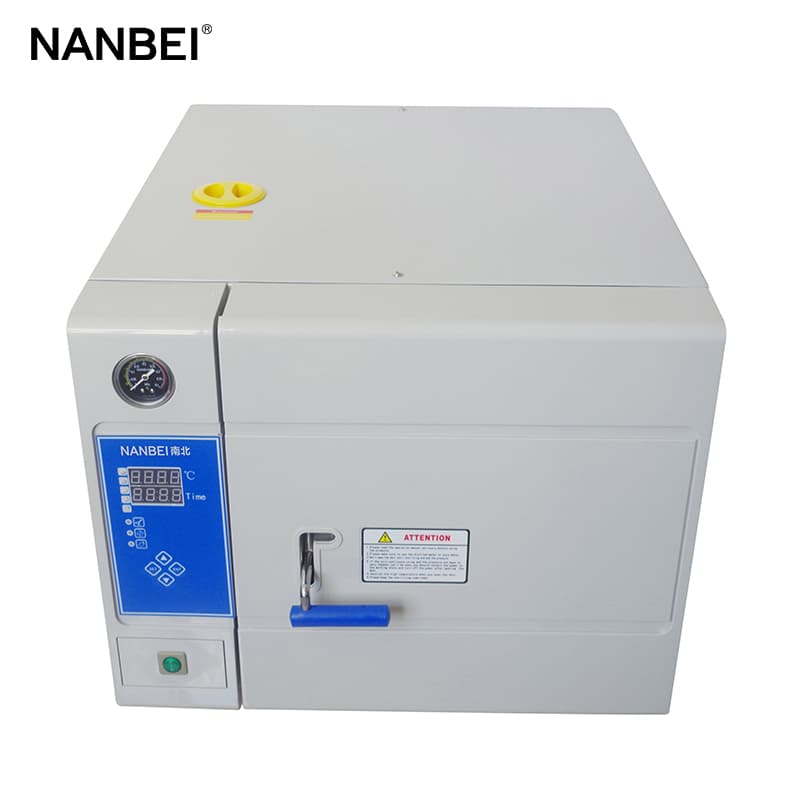

TM-XD50J 50L Table Top Steam Sterilizer
TM-XD50J 50L Table Top Steam Sterilizer

TM-XD50J 50L Table Top Steam Sterilizer

Brand:NANBEI

Model:TM-XD50J

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

Table top steam sterilizer


Characteristics:

1.Indicator light indicates working state.

2.For 4~6 minutes rapidly sterilizing.

3.Sterilizing temperature and time can be preset.

4.Steam-water inner circulation system:no steam discharge,and the environment for sterilizing will be clean and dry.

5.Over temperature & over pressure auto-protection.

6.Safe protection of water lacking.

7.Exhaust the cool air automatically.

8.Door safety lock system.

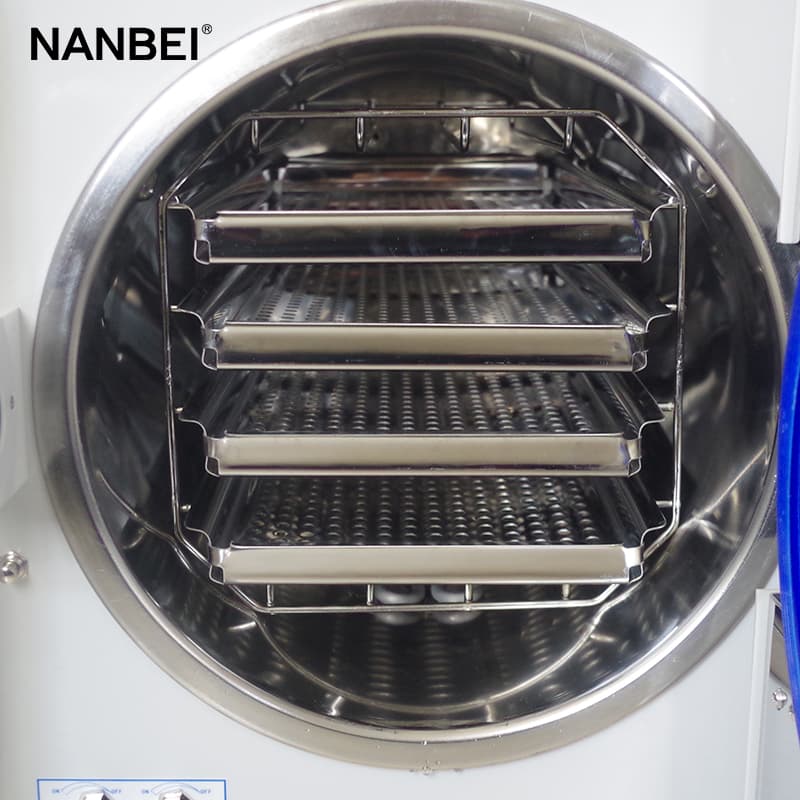

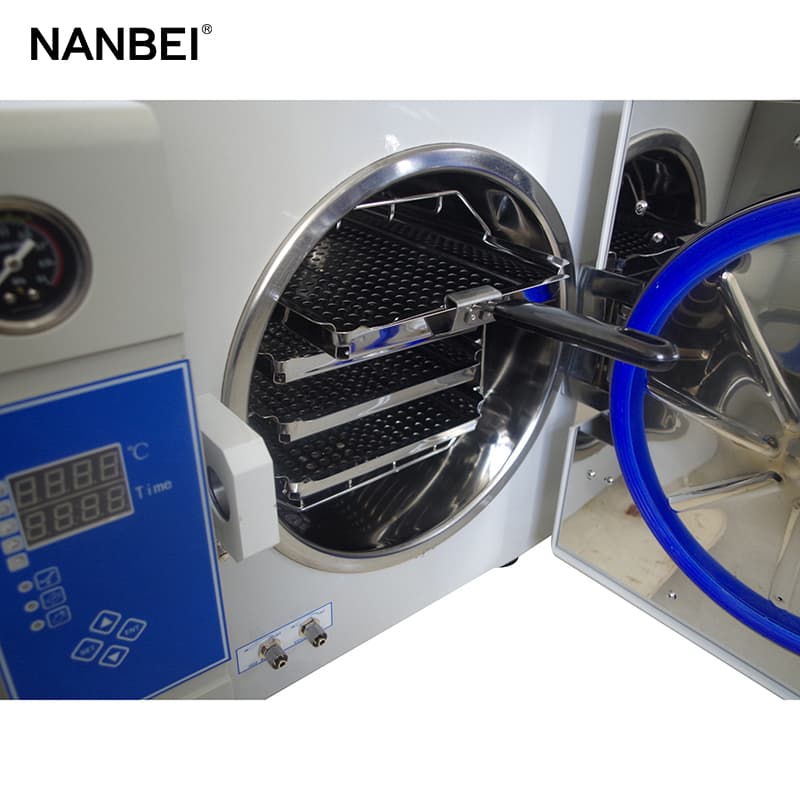

9.With three stainless steel sterilizing plates.

10.The chamber of the sterilizer is made of stainless steel.

11.Automatically shut off with beep reminding after sterilization.




Technical data:

MODEL TECHNICAL DATA

TM-XD35J

TM-XD50J

Sterilizing chamber volume

35L (φ300×500 mm)

50L(φ340×550 mm)

Working pressure

0.22Mpa

Working temperature

134℃

Adjustment of temperature

105-134℃

Timer

0-60 min

Heat average

≤ ± 1℃

Power

2.7 KW / AC220V 50Hz

Sterilizing plate

400×200×30 mm

 (4pieces)

500×250×30 mm

(4pieces)

Dimension

730×550×510 mm

770×600×540 mm

Package dimension

820×680×650 mm

880×730×700 mm

G. W/N.W

95/80 kg

112/93 kg

Details:

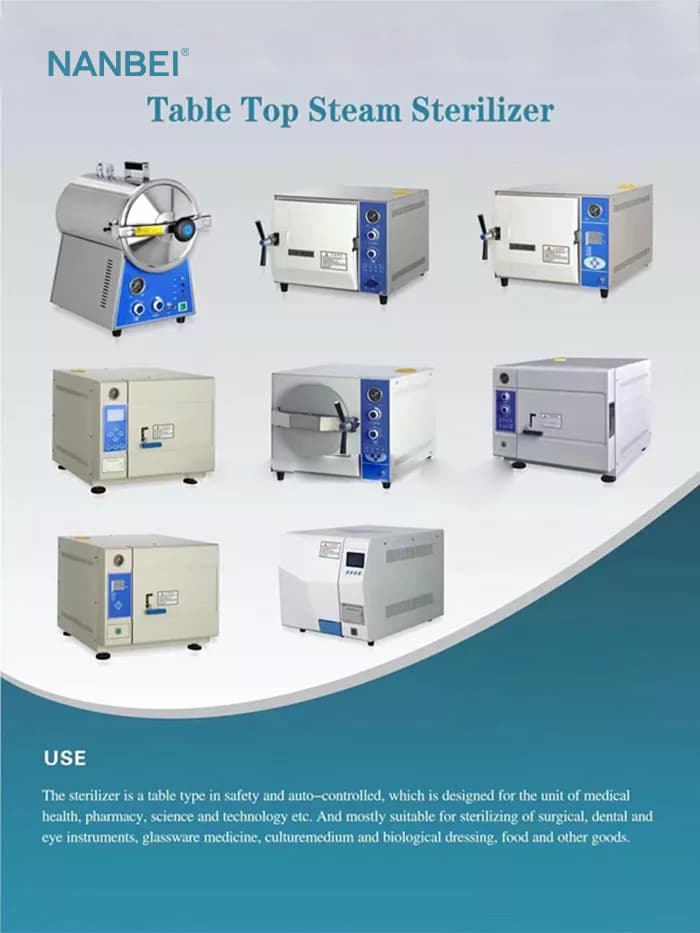

We can also supply:
