3600S digital ultrasonic flaw detector
3600S digital ultrasonic flaw detector

3600S digital ultrasonic flaw detector




product details


Product Description
The home is in the lead:
 1, high speed, the Gao Liang large screen color field sends the demonstration, under the glare normal work
2, an operation fast crack detection, momentarily prompts crack detection help information
3, 5 independent crack detection channel, 500 crack detection data storage
 4, the non-memory effect highly effective lithium battery, guarantees continuously 4 hour not power failure work
Main Specifications:
 Transmitter Pulse
 Square Wave Pulser
 Transmitter Pulse Voltage: 25 ~ 400V, continuously
 Test Modes
 Pulse echo and dual transmission
 400, 80 Ohm
 0.5 ~ 20MHz. Broadband / narrowband optional
 0.0~ 110.0dB. Steps as 0.1, 1.0, 2.0, 6.0 dB
 Material Velocity
 1000 ~ 15000m/s continuously adjustable. 30 common material velocities selectable
 0.0~ 10000mm longitudinal wave at steel velocity. Range continuously variable with minimum 0.1mm increments
 Positive halfwave, negative halfwave, full wave, RF
 Real-time alarm signal indicated by horn or LED indicator.
 5.7"  high-brightness TFT color LCD
 Pulse Shift
 -20 ~ 3000μs
 Probe Zero Offset
 0 ~ 999.9μs
 Pulse Repetition Frequency (PRF)
 25 ~ 1000Hz, auto and manual adjustment modes optional
 Vertical Linearity Accuracy
 Horizontal Linearity Accuracy
 Surplus Sensitivity
 ≥65dB (200Ф2 flat bottom hole)
 Dynamic Range
 Reject (suppression)
 0 ~ 90%
 Electric Noise Level
 C6 transducer connections, USB HOST, LAN, RF OUT, Two-dimensional encoder interface
 Power Supply
Large-capacity Li Battery, no memory effect; Battery Operating time: More than 6 hours
 Environmental Temperature
 -30 ~ 50℃
 Relative Humidity
 20% ~ 95%RH
 1.5Kg (with battery)
specifications︰ Main Features:
Small dimension, lightweight, portable, fully-sealed, highly-reliable design especially suitable for working outdoors
Up to 640MHz sampling frequency, measurement resolution of 0.1mm with minimum range of 3mm
Operating Frequency: 0.5 – 20MHz, surplus sensitivity up to 65dB
Bright, high resolution (640×480) color TFT display realizing the best measurement result in similar products
High performance square wave pulser with tuning option allows the operator to tune the pulse width of the square wave pulser to optimize transducer performance. This maximizes signal-to-noise and penetration in difficult materials such as highly-attenuated materials or thin work-pieces
LAN port allows remote data transfer and management. It provides management to instrument parameters when the instrument is used as independent square wave pulser
High-speed USB interface allows data storage on USB drive and PC communication. To interface with a mouse to secure accurate analysis on report with A-scan
Internal charger, auto switch between “charge” and “work”. Power supplied by battery or AC mains. The operating time of onboard Li battery is more than 6 hours
Multi-software functions to meet all inspection needs, unique keypad organization and rotary knob operation, user-friendly design for menu, English/Chinese language menu options, English/Chinese input and edit functions make the inspection much easier
Automatically test the transducer frequency, tune the pulse width of square wave pulse to optimize transducer performance
Thickness alarm function, continuous storage function of waveform and various measurement modes of waveforms
Automatically calibrate instrument specifications and search the peak value
Advantages︰ Remarkable performance price ratio: 3600S colored digit ultrasonic flaw detector
the performance is stabler, carries is more relaxed,
the demonstration is clearer, operation simpler
the superiority two: compare in the volume is big,
the weight heavy table model ultrasonic flaw detector, has the unequalled scene to carry the superiority (complete machine weight 1.5 kilograms)
superiority three: Gao Liang high resolution colored TFT to demonstrate
superiority four: highly effective lithium batteries, after ultra long operating time
superiority five: disposition computer communication card and communication software, (basis customer request), the crack detection data may be directTransmits to the computer printing crack detection report

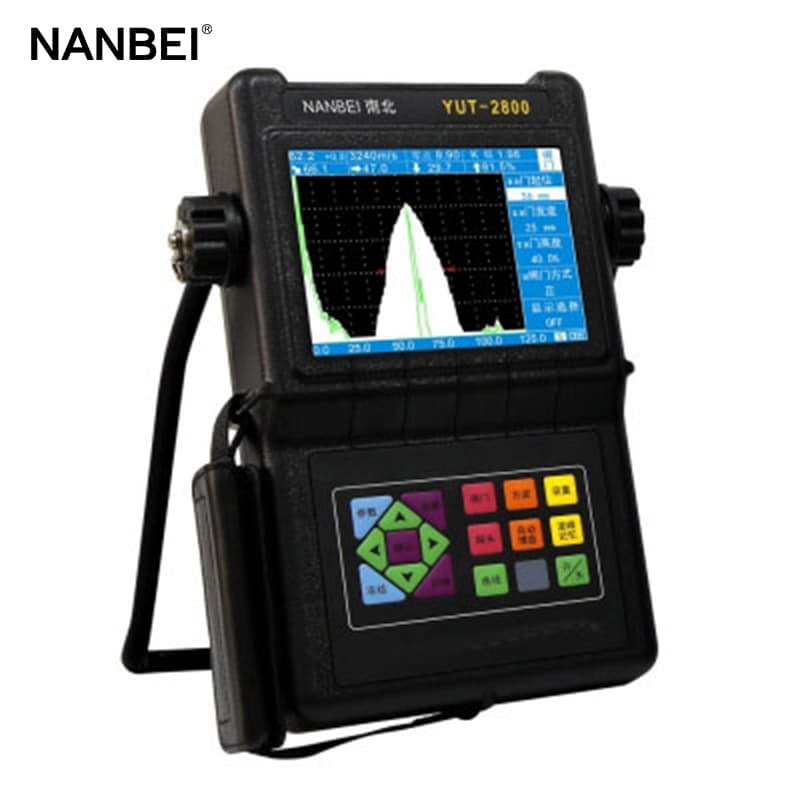

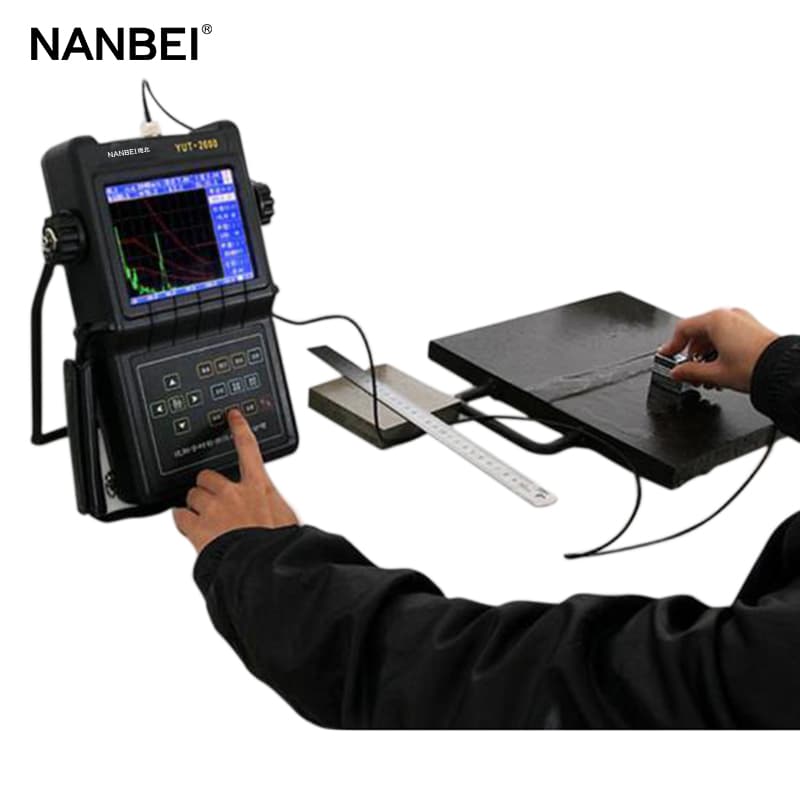

Product Image


color digit ultrasonic flaw detector
