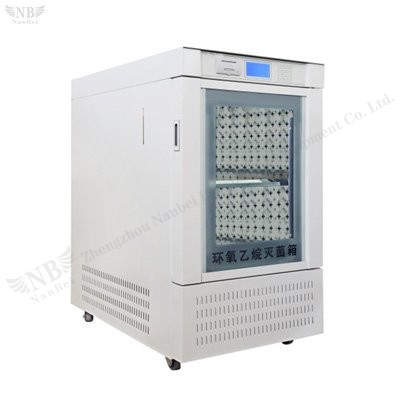

YWM60 60L Ethylene oxide sterilizer
YWM60 60L Ethylene oxide sterilizer

YWM60 60L Ethylene oxide sterilizer

Brand:NANBEI

Model:YWM60

Application:

product details

       Ethylene oxide sterilizer

The scope of application of epoxy ethane sterilizer:
1. Medical supplies: operation instrument, syringe, infusion, catheters, birth control equipment.
2. Medical devices: endoscope, cardiac pacemaker, artificial heart, medical telephone, dialyzer, aspirator.
3.Health supplies: lady napkins, disposable tableware etc..
4. Medicine: Chinese medicine and Western medicine, cosmetics.
5. Textiles and biological products: cotton fiber, leather clothing, blankets, brush etc..
6. Instruments: electronic instrument, optical instrument, telephone etc..
7. Other: money, tickets, records, files, correspondence, collection of historical relics, silk satin products, animal specimens.
The products using epoxy ethane mixed gas, flame retardant, anti explosion, safety (temperature, pressure, leakage and other abnormal automatic alarm system for sterilized articles), no corrosion, no pollution to the environment damage.

Product structure:

1.Sterilizing chamber using 304 stainless steel mirror,anticorrosion.

2. A3 steel cabinet,durable.

3. Equipped with a thermal barrier layer

4. Double protective doors,insulation,sealing and leak prevention.

Product Features Configuration:

1.Sterilization process automatic computer control,LCD display panel

2. Sterilizing effect of doubling the anti-leak vacuum pumping system

3. Sterilization efficiency of automatic humidification system

4. Sterile water cycle automatic heating system efficiency

5. Air and water vapor auto exhaust purification of ethylene oxide residue analytical sound processing system.

6. Efficiency and prevent environmental pollution discharge residue heating air purification system

7. Sterilization automatic printing system the whole process (optional)

8. Temperature,pressure,leakage and other abnormalities of the automatic alarm system

9. After the accident off the job site automatic recovery system

Product specification:

Working equipment external ambient temperature:5-60C

The equipment sterilization room temperature:20-60C arbitrarily set.

Temperature accuracy:±1C

Vacuum pressure:-7~-70Kpa, arbitrarily set.

Sterilization time regulation range:1-9h, arbitrarily set.

Sterilization humidity:60%-80%, arbitrarily set.

The number of rows of residues: arbitrarily set.

Resolution time:arbitrarily set.

Clean: arbitrarily set

Voltage: 220v/50Hz

Data:

Model

Room size(mm)

External size(mm)

Volume(L)

Power(kw)

YWM30

392*290*320

630*440*770

30

1.1

YWM60

520*320*400

780*480*1020

60

1.1

YWM65

570*320*400

830*480*1020

65

1.2

YWM150

732*420*558

900*575*1110

150

1.4

YWM200

708*450*670

880*650*1370

200

1.9

YWM240

510*300*1480

690*780*1690

240

1.9

YWM300

812*500*802

960*700*1500

300

2.1

YWM600

1030*630*930

1410*850*1700

600

2.6

YWM1000

1300*800*1000

1700*1020*2000

1000

3.1
