LS-C(III) Dry & Wet Dispersion Particle Size Analyzer


Application: The dry dispersion mode can be used to measure the samples that can’t be dispersed in liquid but in air, the wet dispersion mode can be used to measure the samples dispersed in liquid.
Principle: Uses the principle of laser light scattering to determine particle size distribution. OMEC’s instruments own the advantages of wide measurement range, good repeatability, simple operation and etc. through OMEC’s system integration and optimization for optics, mechanics, electronics and computer.
Report Items: Particle size distribution table, particle size distribution curve, median diameter, Characteristic particle size, width coefficient, SSA, industrial segmented percentage of particles, > 80μm percentage (fineness), other synthesis parameters of particle size , etc.

1. Measuring Range: 0.1-1000μm
2. Sample Feeding: dry and wet dispersion
3. Repeatability: <3%
4. Accuracy of Stepper Motor: 0.5μm
5. Pump: 200W, max speed: 5000rpm
5. Motor Power of Dry Sampling System: 2W, stepless control
6. Measurement Duration: 1-2minutes
7. Number of Detectors: 54
8. Light Source: He-Ne lase, 2.0 Mw, 0.6328 μm
9. Environmental Requirement:
Temperature: 5-35℃
Humidity: <85%


1. Adopt unique scattered light detection around a sphere surface (patent no.:95223756.3), after lens (also known as “reversal” or “converging light”) Fourier transform structure, place large angle detectors on proper spherical surface, to realize the accurate focusing of large angle scattered light.
2.Use integrative laser emitter (patent no.:00228952.0), effectively reduce the thermal deformation of laser tube, the influence of outside mechanical vibration on the stability of the instrument. Stepper accuracy of automatic centering system can reach 0.5 micron, the user’s operation is more convenient
3.Wet sample feeding system adopts booster pump, top speed can reach 5000 rpm, can effectively realize the circulation of large particles.
4.Vibration motor of dry sample feeder system is adjustable, to realize effective control of beam obstructions
5.Measurement window material uses high quality optical materials, window components adopt full stainless steel material, wear-resisting, easy to clean, and maintenance is convenient.
6.Light path system uses fully-enclosed design, preventing dust pollution and outside light pollution.


Software functions:
1. Borland Visual C++ development environment, concise and user friendly operating interface.
2. Automatic Search of communication port
3. Automatic & manual measurement of full compatible operation display.
4. Easy switch among different types of reports.
5. Repair damaged photocell by software
6. Auto clear of Electric noise.
7. Sample parameters editing, selecting and saving function.
8. Chinese and English report.
9. Customer size grading function.
10. Free switch of control software between simulation model and control measurement.
11. Dynamic display of all test process by process bar.
12. Password protection for key information.
13. Multiple ways of selecting “measurement parameters”.
14. Multiple document formats.
15. Operating log and measuring log function.
16. Data input function.
17. Reports can be exported as Word, Excel format or other text format files;
18. Statistics of multiple documents.
19. Two distribution models: Rosin-Ramler, multi-wave crest;
20. Two report models: General report, statistics;
21. Two accumulative directions: small to large, large to small;
22. Single step adjustment
23. Single step control of the sample feeder
24. Safety password function


The Application of Patents and Proprietary Technology

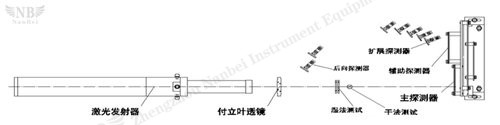

particle size analyzer for latexScattered light detection around a sphere surface (DAS)
The large angle detectors are placed in a spherical surface to get accurate focusing of large angle scattered light.

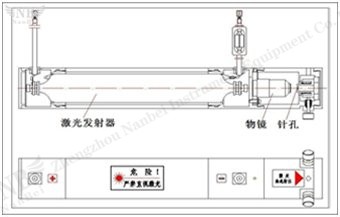

lab laser particle size analyzerIntegrated laser emitter
The beam expander and the pinhole filter are integrated in several concentric tubes, and then jointed into one tube with both ends enclosed. It is shock proof, easy to maintain and with stable laser output.。

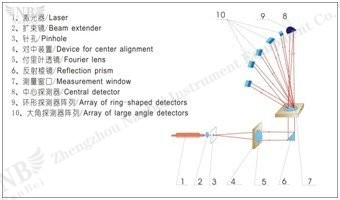

The Structure of LS-C(III) Dry Dispersion Laser Particle Size Analyzer
