Metallographic Microscope
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment

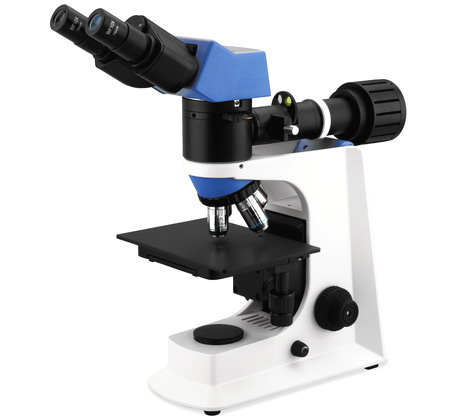

MIT 200 Metallurgical Microscope Outfits
Items |
Specification |
MIT200 | |
| Eyepiece | WF10×-18mm |
● | |
| Reticule Eyepiece WF 10×-18 mm (0.1mm) |
● | ||
| WF5× |
○ | ||
| WF12.5× |
○ | ||
| WF16× |
○ | ||
Infinity Plan Objective
(no cover glass) | 5×/0.11 | W.D=12.10mm |
● |
| 10×/0.25 | W.D=4.75mm |
● | |
| 20×/ 0.4 (S) | W.D=2.14mm |
○ | |
| 40×/0.65 (S) | W.D=0.45mm |
○ | |
Long Working Distance
Infinity Plan Objective
(no cover glass) | 20×/0.4 (S) | W.D=8.35mm |
● |
| 40×/0.65 (S) | W.D=3.90mm |
● | |
| 50×/0.7(S) | W.D=1.95mm |
○ | |
| 80×/0.8 (S) | W.D=0.85mm |
○ | |
| Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°,
Interpupilary Distance: 50 -75mm |
● | |
| Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°,
Interpupilary Distance: 50 -75mm
Light Distribution: 80:20 |
○ | |
| Nosepiece | Quadplex |
● | |
| Mechanical Stage |
Stage Size: 200×140mm, Travel : 76mm×52mm
Coaxial Coarse and Fine Focusing Knobs |
● | |
| Reflection Illumination | 6V/20W Halogen Lamp | ||
| 6V/30W Halogen Lamp |
● | ||
| Filter | Five-hole filter unit(blue, green, amber, grey, empty) |
● | |
| Polarizing Attachment | Analyzer/ Polarizer |
○ | |
| C-mount | 1× |
○ | |
| 0.47× （Focus Adjustable） |
○ | ||
| 0.5X （Focus Adjustable） | |||
