JS-2 Gelatin Gel Strength Test System
JS-2 Gelatin Gel Strength Test System

JS-2 Gelatin Gel Strength Test System




product details

This system is provided for detecting jelly strength of gelatin.

     It Consists of:
  • JS-2 Jelly strength tester
  • HW-2 Constant temperature bath
  • ZL-2 Refrigerator

     Applicable standard
  • National standard (Food additive Gelatin) GB6783-94
  • American codex/No.22/VSPXX
  • Vocation standard (Gelatin for medicine) QB2354-98
  • Vocation standard (Industrial gelatin) QB/T1995-94
  • Vocation standard (Bone gelatin) QB/T1996-94
  • Vocation standard (Photographic gelatin) QB/t1997-94
  • Corporate standard(Thickness tester) Q/12XQ0190-2010

  • A MPU is used to control all operations in Jelly strength system. It works in Bloom mode and the Bloom gram is displayed by LED. The probe is of
    British standard.
  • Using high-precision pressure sensor, auto-correcting nonlinear errors, high accuracy.
  • Any sampling depth can be preset, with five sampling speeds, three sampling mode and two sampling results.
  • Using precise mechanical transmission gear with shock absorber, operating placidly, displaying stably.
  • Precisely constant temperature bath system is composed of invariable temperature water tank and refrigerate.
  • Using magnetism pump system to circulate water for equably heating, bath temperature getting even.
  • Using high-precision temperature sensor, with little linear error and high accuracy in testing temperature.
  • Using auto frequency-conversion control technology, controlling temperature intellectually high accurately.
  • A new type of high-reliability and great-power compressor applied in refrigerator, with high speed and low noise in refrigeration.
  • Presetting temperature at will, displaying preset and real-time data alternately in time.
  • Automation: auto-test, auto-diagnose, auto-alarm.


  • Test range (5~1000)g
  • Test accuracy Max*(±0.05% )
  • Travel (1~60)mm
  • Travel accuracy ±0.1mm
  • Temperature control range (5~39.9)℃
  • Temperature control accuracy ±0.1℃
  • Cooling time 40min
  • Volume accuracy ±0.5mL
  • Power 220V/50Hz/1200W
  • Dimension JS-2 (260×260×420)mm3
                         HW-2 (530×450×280)mm3
                         ZL-2 (400×350×280)mm3


The other models we supply:

Disintegration tester

Dissolution tester

Tablet four-usage tester

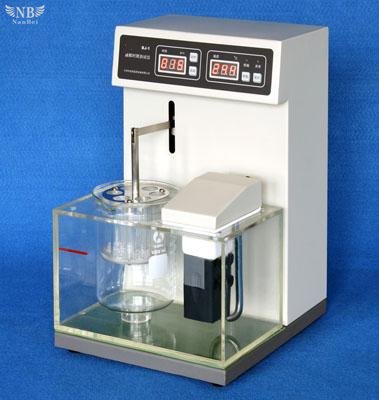

automatic tablet disintegration tester

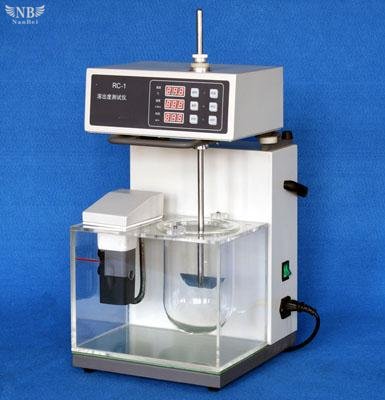

 lab dissolution tester

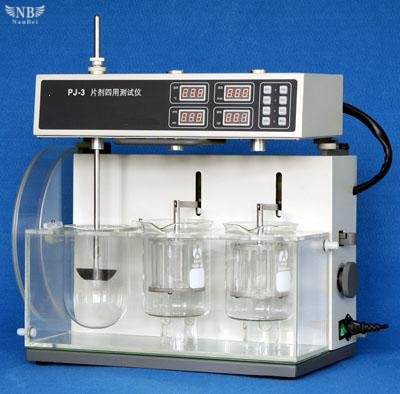

 pharmaceutical tablet tester pj3

Please click to details

Please click to details

Please click to details

Tablet friability tester

Tablet thickness tester

Clarify tester

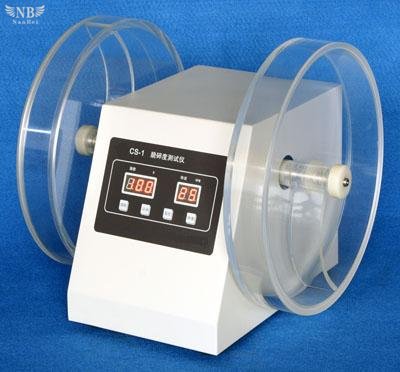

 pill tablet friability tester

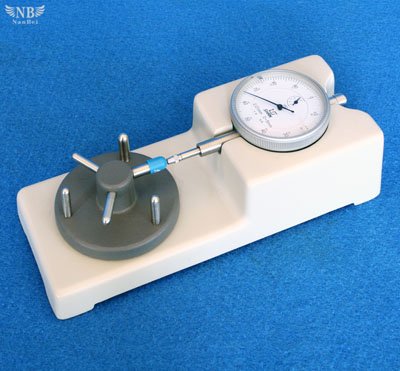

 tablet thickness tester price

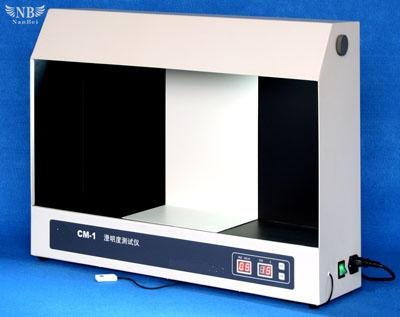

 liquid medicine clarify tester

Please click to details

Please click to details

Please click to details

Bloom viscosity testeTablet hardness tester

Magnetic stirrer

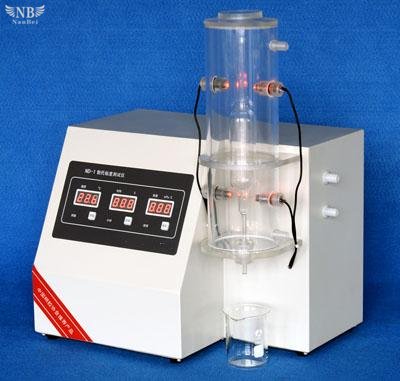

 gel bloom viscosity tester

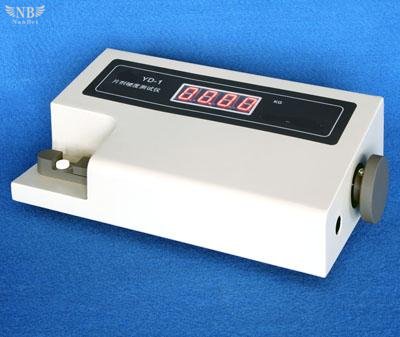

 digital tablet hardness tester

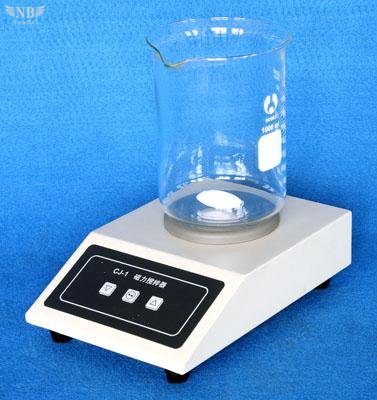

magnetic stirrer hot plate
