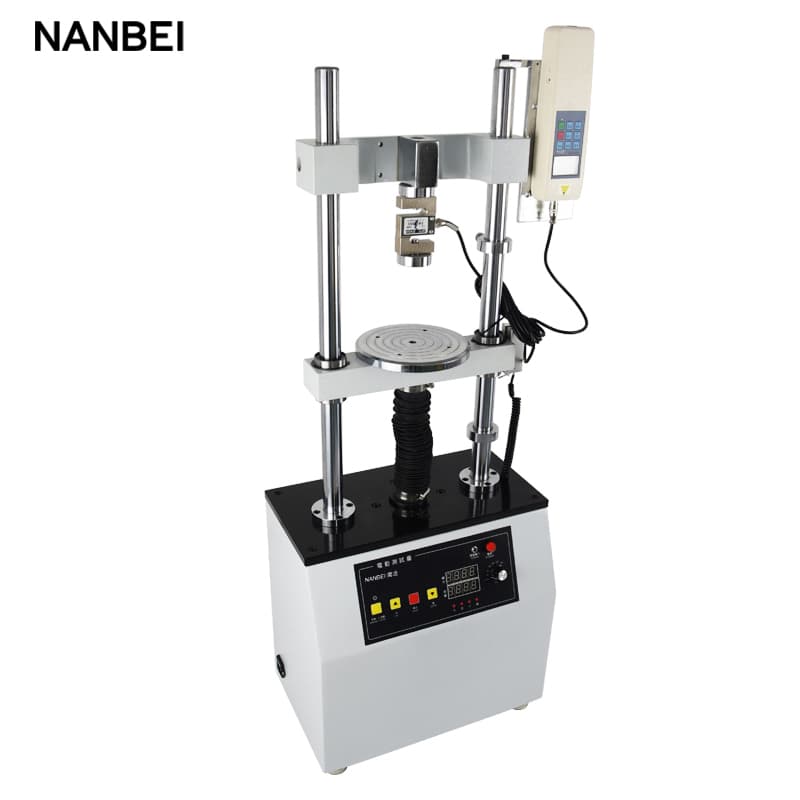

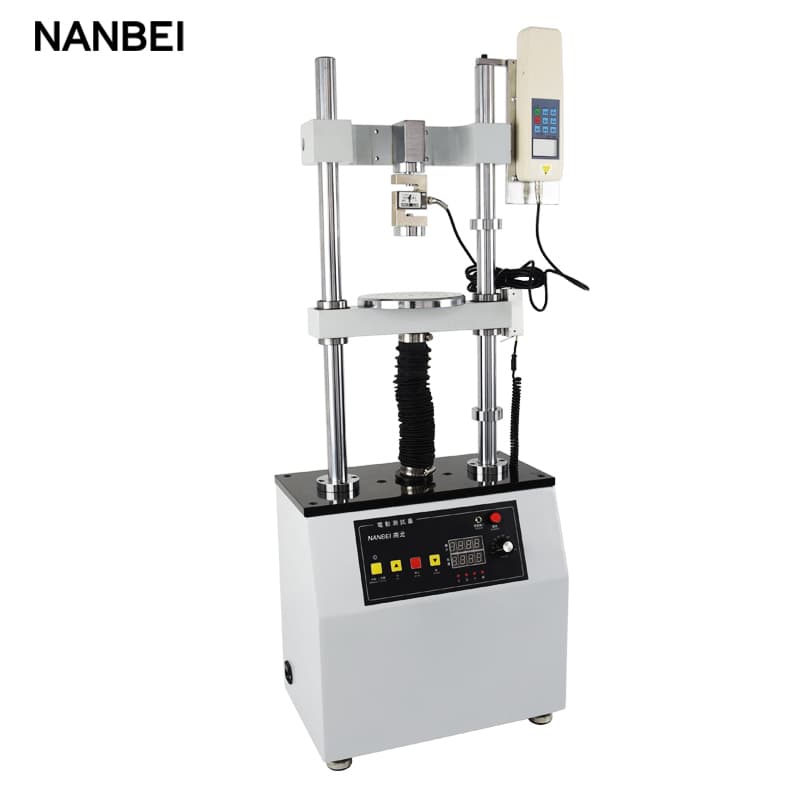

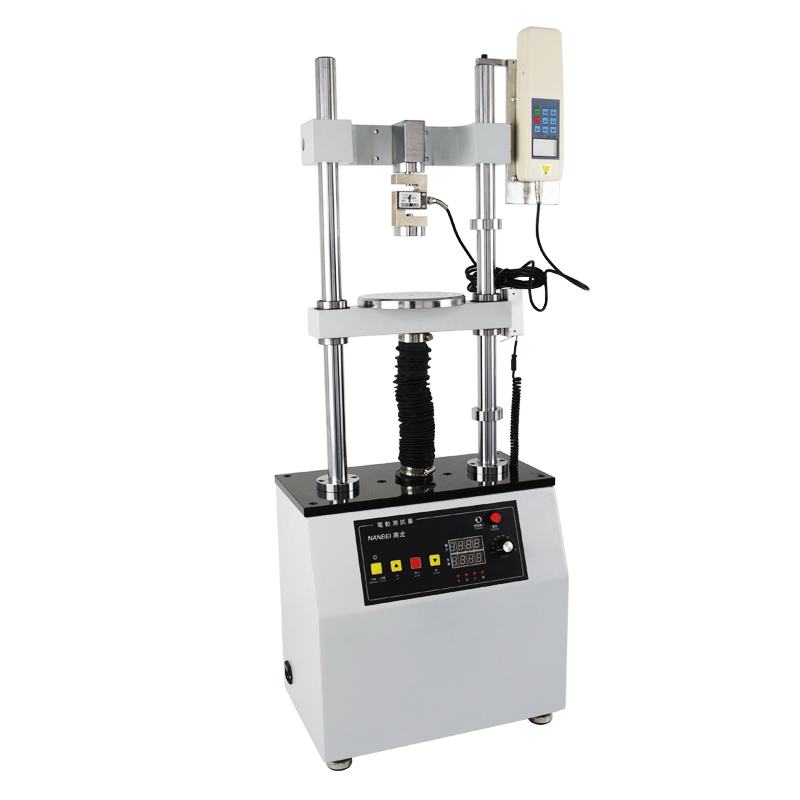

AEV Electric Double Column Vertical Test Stand



Function

The AEV electric test stand is the matching test stand of HF and NK series force gauge.

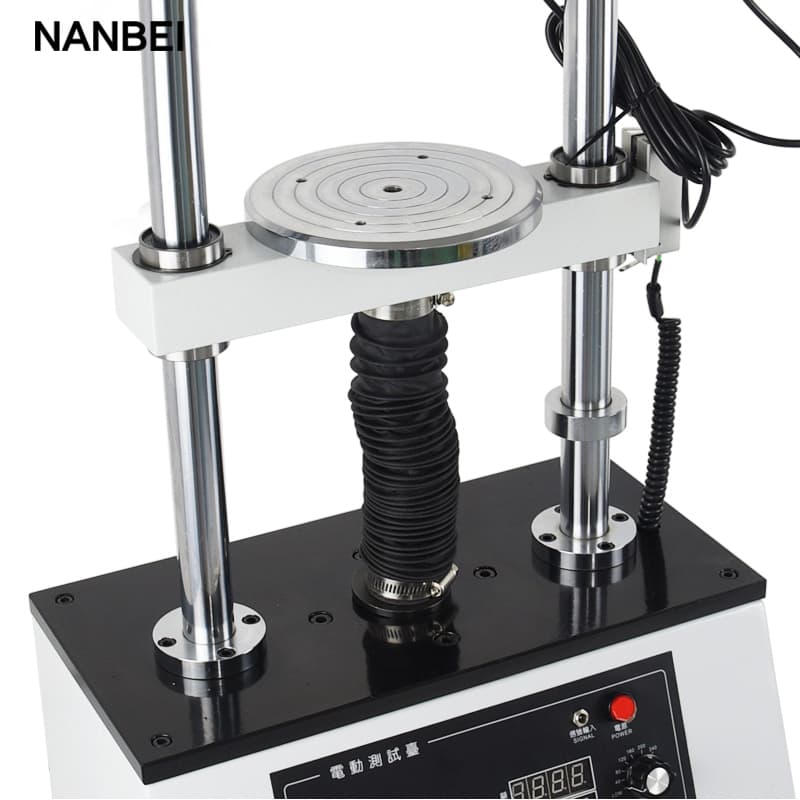

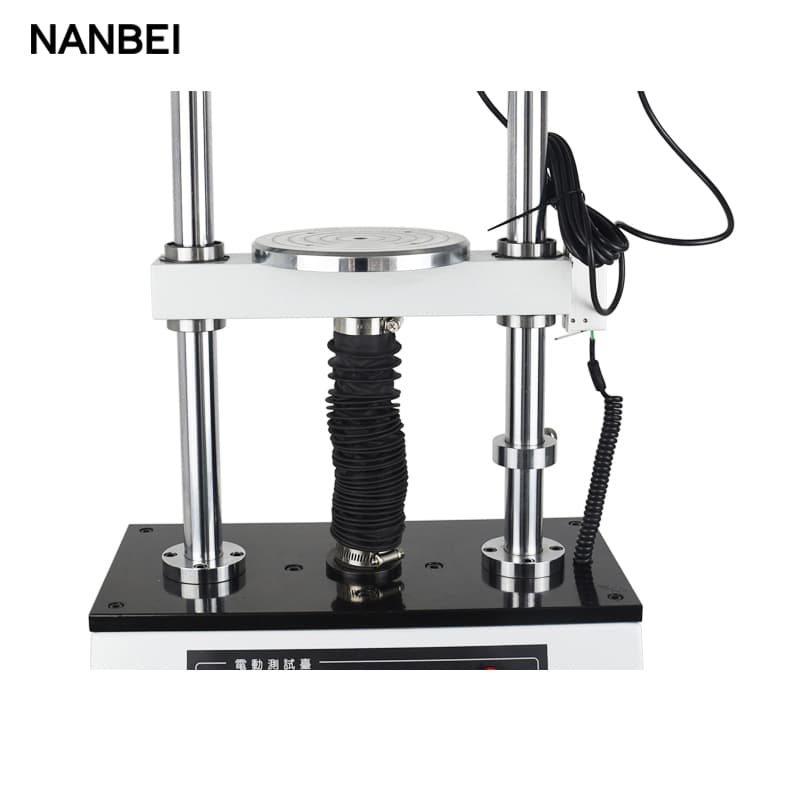

This product uses the double erecting pole structure, good stability, applies widely, easy to operate.

And have the step less speed regulation, manual (inching), and the auto control switch function.

Widely applied in rubber plastic, light industry, textile, building windows and doors,

compound materials, electric wire and cable, auto part, power generator, scientific

research institute to do the push pull force insertion force and destructive experiment.

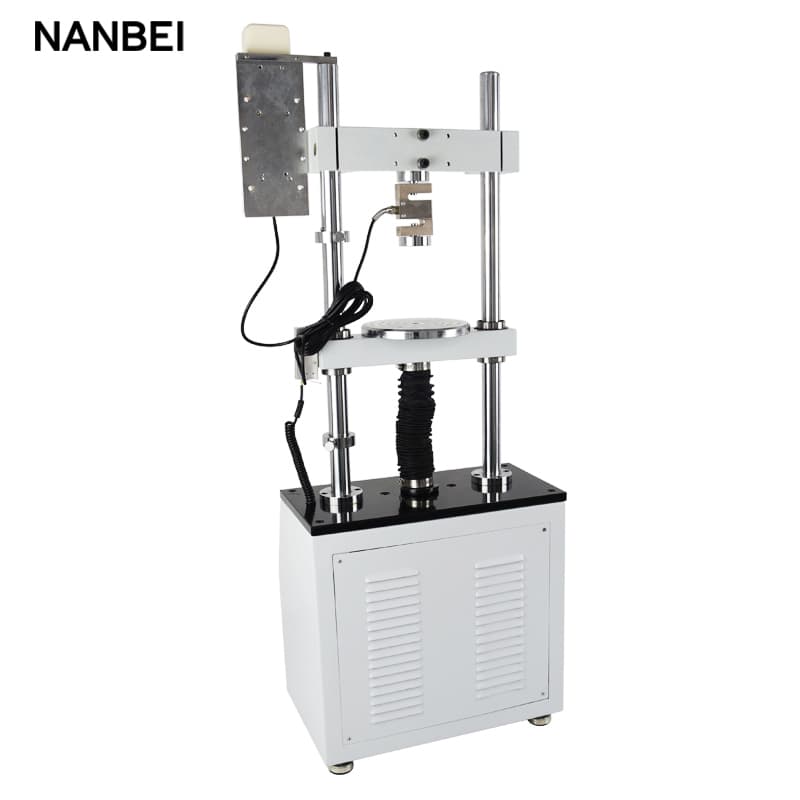

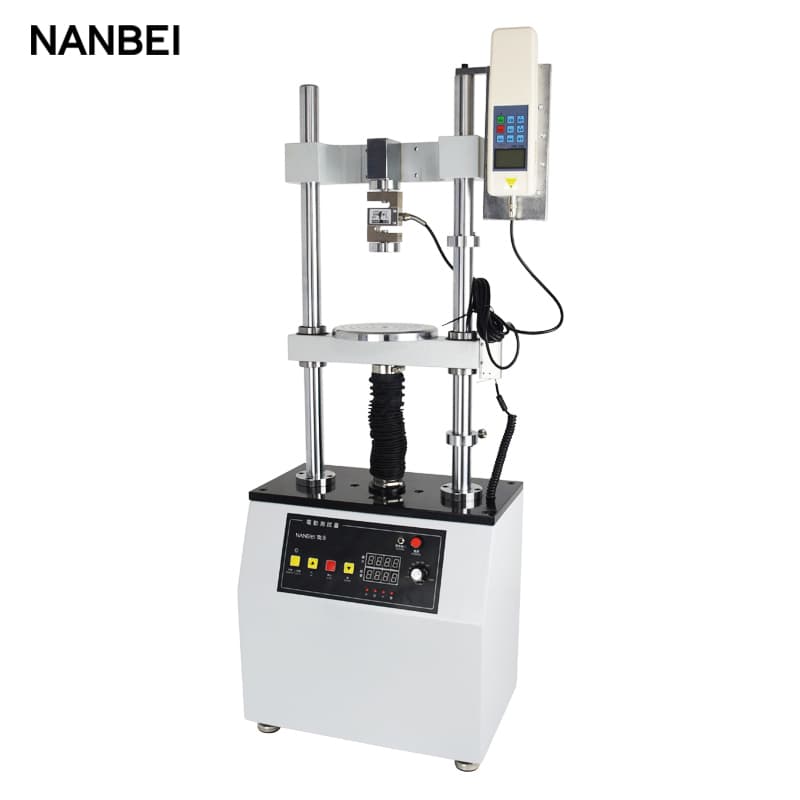

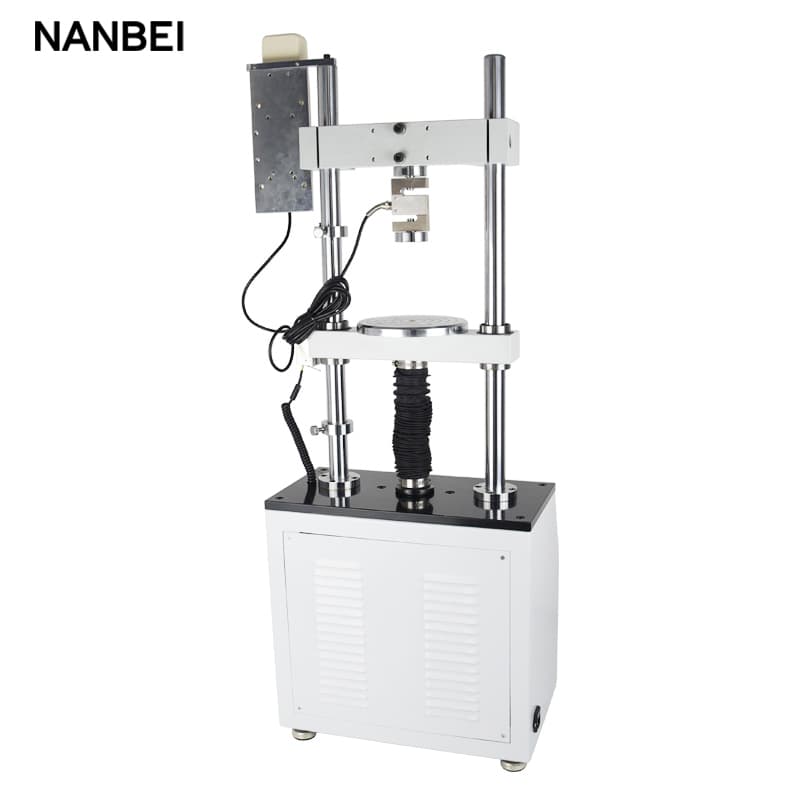

65f13e123484d.jpg 65f13e120c237.jpg

Features:

1.Electric loading, step less speed regulation, gear drive

2.Compact structure and stable drive

3.Simple operation, can be used with a variety of fixtures


Technical Data

Item No.
Effective stroke
Max. load
Testing speed
G.W. (kg)
AEV-5KN
220mm
5000N
15—240mm/min
75kg
AEV-10KN
Not fixed
10000N
90kg
AEV-20KN
20000N
AEV-30KN
30000N

vertical test stand

Other product we can supply as follows:

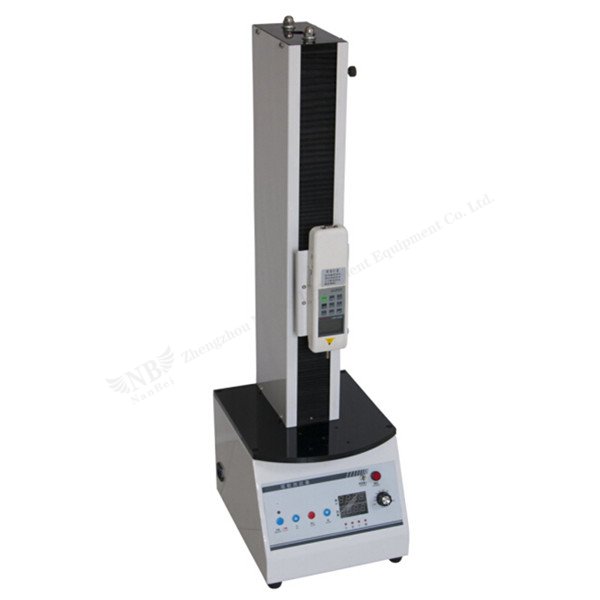

AEL Electric Single Column
Vertical Test Stand

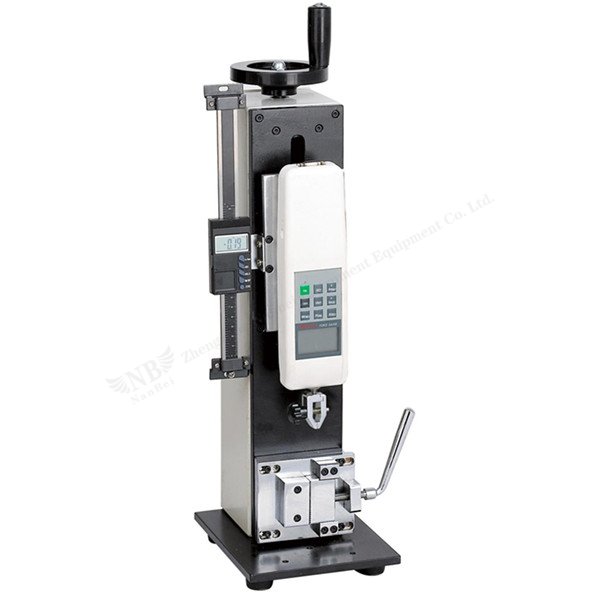

ASC Side Shake Screw
Test Stand

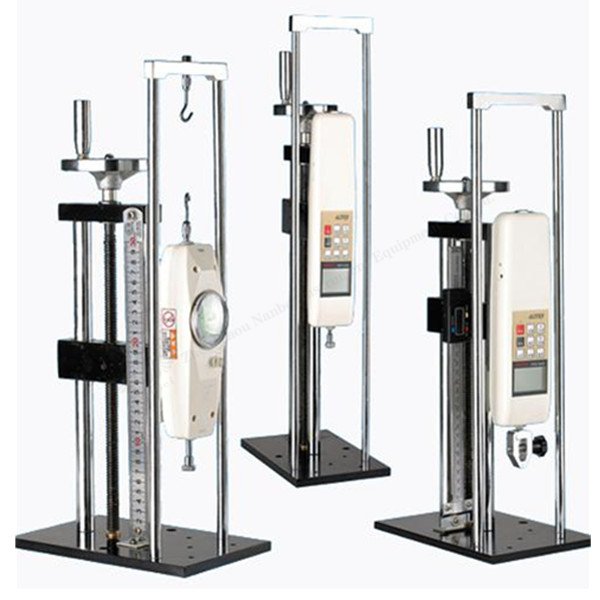

ASL Manual Vertical
(Horizontal) Dual Test Stand

single column test stand

side shake screw test stand

dual test stand

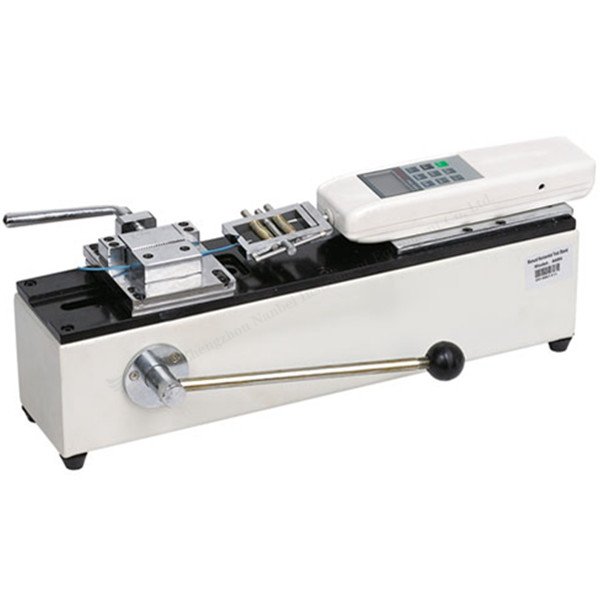

ADL Terminal Pulling
