Small-scale biological safety cabinet
Small-scale biological safety cabinet

Small-scale biological safety cabinet

Brand:NANBEI

Model:

Application:

product details

Introduction

Model: 11231 BBC86

The Class II biological safety cabinet is an open-front, ventilated cabinet. The Class II biological safety cabinet will provide personnel, environment and product protection.

According to the performance criteria:

1.US Standard ANSI/NSF 49:2002
2.European Standard EN13469:2000
3.Chinese Standard YY0569-2005


Advantage:

1. Convenient to move
2. Work area surrounded by negative pressure
3. Timer function
4. LCD display
5. Filter life inquiry
6. Motored front window

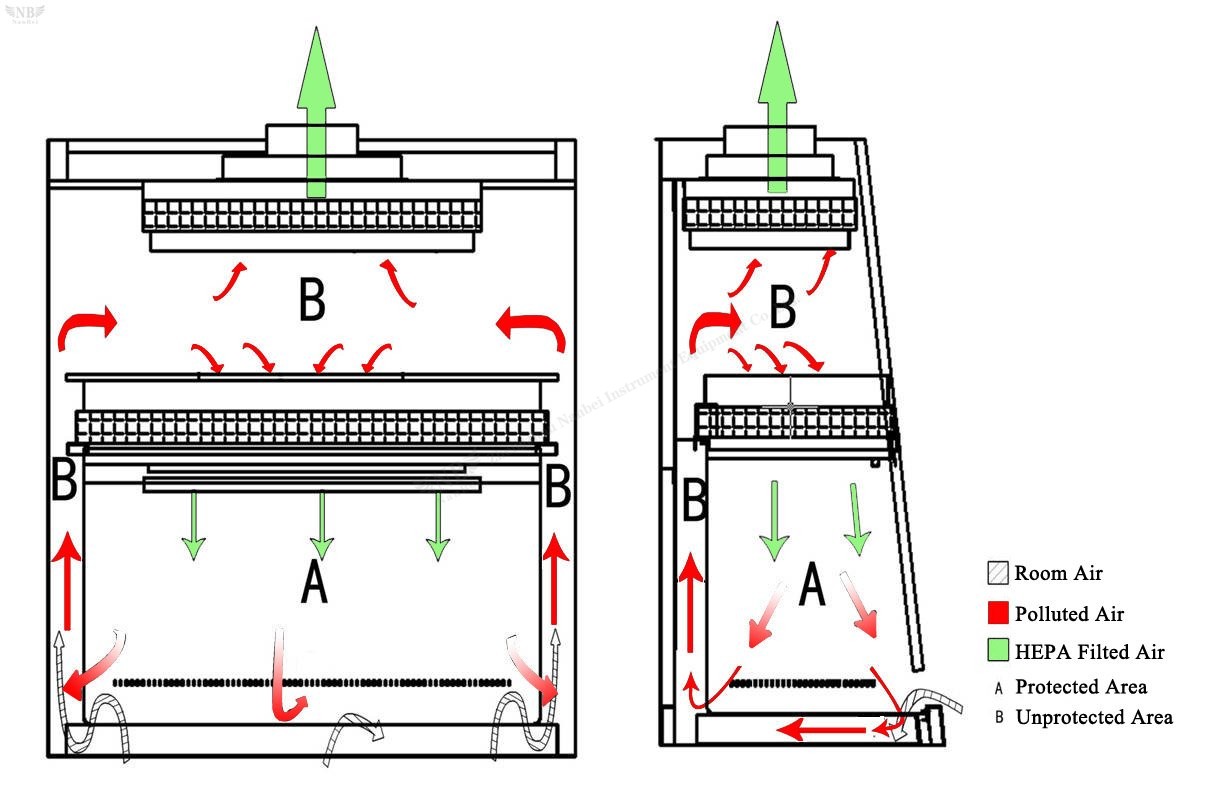

Air Pattern and Protected Area:

laboratory biosafety cabinet

Parameter of BSC-700II A2 Biological Safety Cabinet:

Internal Size(mm)

600*500*540

External Szie(mm)

700*650*1230

Tested Opening

Safety Height ≤ 200 mm

Max Opening

400 mm

Inflow Velocity

0.53 m/s

Downflow Velocity

0.33 m/s

Filter

Two HEPA filter  99.999% efficient(0.3 microns)

Front Window

Two-layer toughened glass  > 5mm

Noise

≤ 65 dB

UV Lamp

15W× 1

Fluorescent Lamp

40W× 1

Lighting(Lux)

680

Power(W)

800

Waterproof Socket

2

Display

LCD display

Control System

Microprocessor

Airflow System

70% air recirculation, 30% air exhaust

Material

Work zone interior is made of 304 stainless steel



Body: Expoxy coated cold rolled steel

Base Stand

Height: 635mm

caster Wheel

Universal Wheel

Electrical

110~240V/50~60Hz (optional)

Net Weight(kg)

80

Gross Weight(kg)

110

Package(mm)

950× 850× 1430

Standard Configuration

Body, UV lamp and Fluorescent Lamp

Optional Accessory

Armrest, Air curtain tester, Formalin fumigation sterilizer, Ammonium hydrogen carbonate neutralizer
