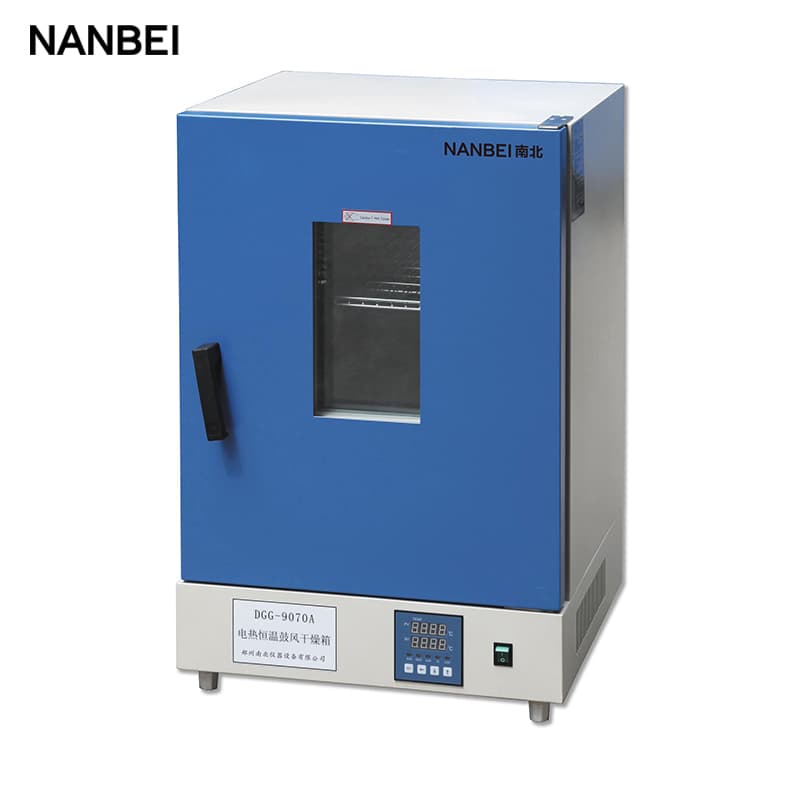

9146AD Electric Blast Drying Oven
9146AD Electric Blast Drying Oven

9146AD Electric Blast Drying Oven

Brand:NANBEI

Model:9146AD

Application:

product details

Electro-thermal Constant-temperature Dry Oven


Use outlined:

The scope of application: The equipment is widely used by biochemistry, chemical pharmaceutical, medical and health, agricultural research, environmental protection and other areas of research and application. As a glass of dry samples and thermal hardening thermal denaturizing experiments, to exclude the residual water samples, micro-organisms using the dry-heat sterilization of glassware, the warm-up before hte heating experiment, heating the food and chemical herding or softening of the experiment, exclude moisture, the extension of food in the harsh conditions of the preservation of time and building materials, electronic components, such as drying and heat drying experiment, banging, disinfection, sterilization and the uses of test material

Working principle:

The device is the use of high-temperature dry heat is drying to meet the needs of micro-organisms can produce oxidation protein denaturizing, such as electrolyte concentration in a certain period of time to kill residual microorganisms.


Features:

1. Automatic cut-off, time is running, calls the restoration, parameter memory , password-protected parameters, the temperature display correction.

2. High heat sensor and in response to environmental scanning micro-processing chips, constitute a high-precision, high temperature characteristics of intelligent.

3. All-round three-dimensional heat, fan forced circulation, high-precision temperature regulation, to ensure that the work of the indoor temperature has a good homogeneity.

4. Built-in temperature calibration, and can regulate the temperature of the small error

5. Temperature deviation  from the set temperature, the alarm automatically.

6. Out of control with auto power-off protection heater.

7. With memory function parameters can be set to avoid cumbersome.

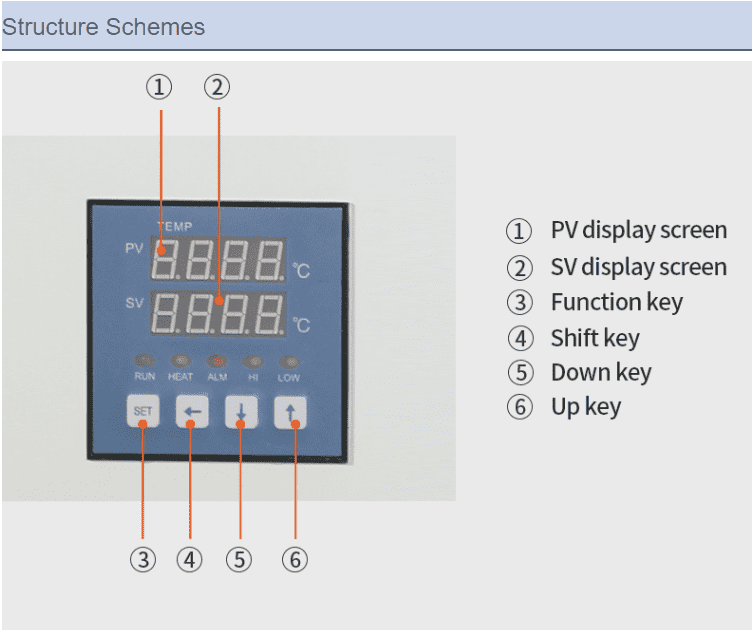

8. Led display setting temperature, measured temperature, regular time clearly, each parameter display can be facultative switch.

9. Set the time from 1 to 9999 minutes to any set working hours. From time to time when the end of the window set to close.

10. Stand-off to prevent, and stand-alone over -temperature protection, and sensor fault alarm, over-temperature alarm limit

11. Duct design and reasonable structure, light air circulation design.

12. Mirror stainless steel liner, tempered glass window.

13.Has a modular design of the ceiling temperature tracking, when allowed to deviate from the  measured temperature rang the sound the equipment(optical) alarm and automatically cut off the heating.

Ha212642c7c2247038c799f5ddc52f9a9N (1).jpg

Parameters:

Model

9030A

9036A

9070A

9076A

9140A

9146A

9240A

9246A

9420A

9426A

9620A

9626A

9920A

9030AD

9036AD

9070AD

9076AD

9140AD

9146AD

9240AD

9246AD

9420AD

9426AD

9620AD

9626AD

9920AD

Voltage


220v 50HZ

380v 50HZ

Temp. range


DGG-9000 series:RT+10-200℃


DGG-9006 series:RT+10-300℃

Temp. resolution


0.1℃ /td>

Constant volatility


±1℃

Power

600w/970w

1150w/1600w

1600w/2100w

2100w/2500w

3200w/3300w

4100w/4200w

6000w

Working Temp.


5-40℃

Inner dimension(mm)

300*300*350

400*400*450

450*550*550

500*600*750

600*550*1300

800*600*1300

1000*600*1600

Size(mm)

445*470*705

550*600*800

640*700*905

690*780*1100

780*760*1800

980*800*1800

1140*800*2150

Shelves


2pcs

3pcs

4pcs

Timing


1-9999 inures


Options:

1 intelligent LCD temperature controller (thirty)

2 intelligent temperature controller program (section thirty)

3 independent temperature limit controller

4 liquid crystal independent temperature limit controller

5 The printer

6.RS485 interface and communication software
