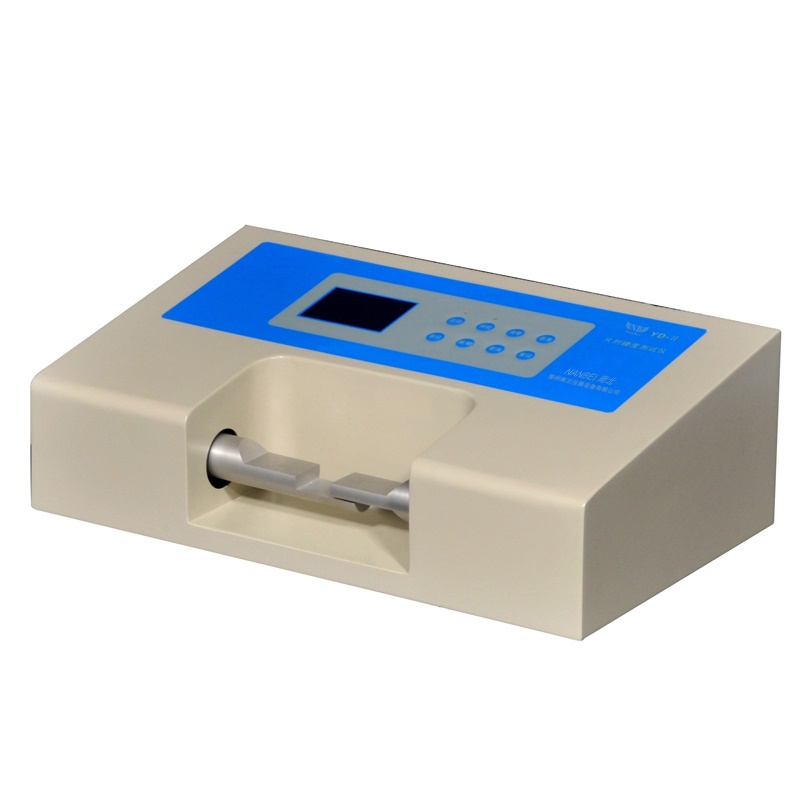

YD-3 Tablet Hardness Tester
YD-3 Tablet Hardness Tester

YD-3 Tablet Hardness Tester

Brand:NANBEI

Model:YD-3

Application:

product details

Introduction:
Tablet hardness testers are instruments for detecting breaking hardness of tablet.

Applicable standards:
Corporate standard(Tablet hardness tester )Q/12XQ0186-2010


Model:YD-1

Features:
The tablet is loaded and pressed artificially.
It has high accuracy press sensor and hardness data is displayed on LED.
It tests tablet hardness continuously.
Test data is displayed and locked automatically, so can test be reset and cycled.
Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:
Hardness range (2~199.9)N
Hardness accuracy Max. *(±0.05%)
Moving distance of probe 20mm
Power 220V/ 50Hz/ 10W or 110V/ 60Hz/ 10W
Dimension (320*200*100)mm3


Model:YD-2

Features:
The tablet is loaded artificially and pressed automatically.
There is high accuracy press sensor and hardness data is displayed on LED.
It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
Time of testing will be saved by directly measuring the diameter.
Test data is displayed and locked automatically, so can test be reset and cycled.
It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
The parameters can be preset at any time. Either preset or real data is displayed on the LED.
Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:
Hardness range (2~199.9)N
Hardness accuracy Max. *(±0.05%)
Probe procession range (3~40)mm
Test period ≯20S/P
Max number in each group 100P
Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension (500*300*160)mm3


Model:YD-3

Features:
The tablet is loaded artificially and pressed automatically.
There is high accuracy press sensor and hardness data is displayed on LED.
It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
Time of testing will be saved by directly measuring the diameter.
Test data is displayed and locked automatically, so can test be reset and cycled.
It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
The parameters can be preset at any time. Either preset or real data is displayed on the LED.
Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:
Hardness range (2~199.9)N
Hardness accuracy Max. *(±0.05%)
Probe procession range (3~40)mm
Test period ≯20S/P
Max number in each group 100P
Power 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension (400*240*160)mm3



The other models we supply:

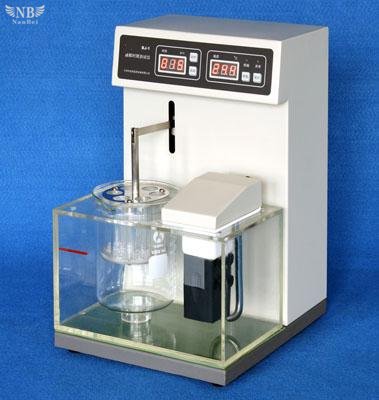

Disintegration tester

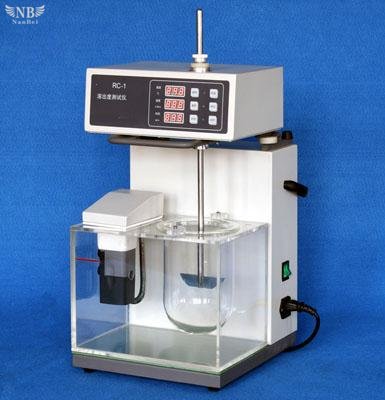

Dissolution tester

Tablet four-usage tester

2 basket tablet disintegration tester

 pharmaceutical dissolution tester

 tablet tester medical

Please click to details

Please click to details

Please click to details

Tablet friability tester

Tablet thickness tester

Clarify tester

 pill tablet friability tester

 tablet thickness tester price

 intelligent clarify tester

Please click to details

Please click to details

Please click to details

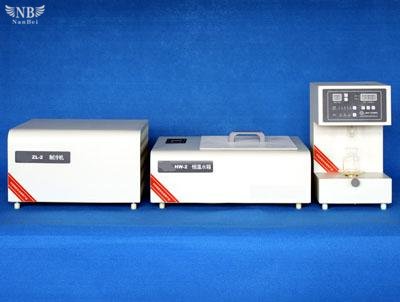

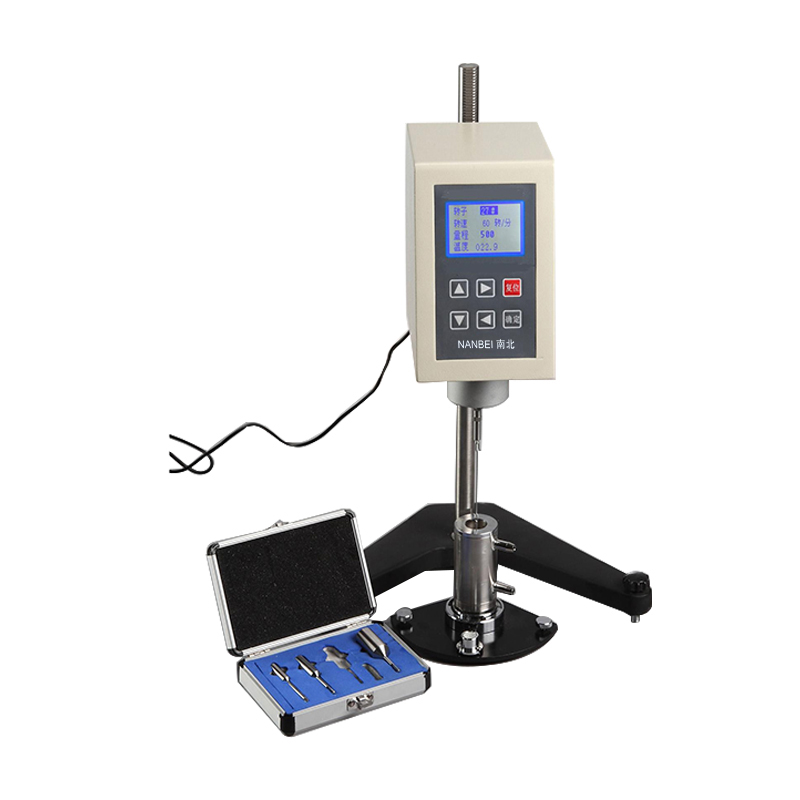

Bloom viscosity testerTransparency tester
