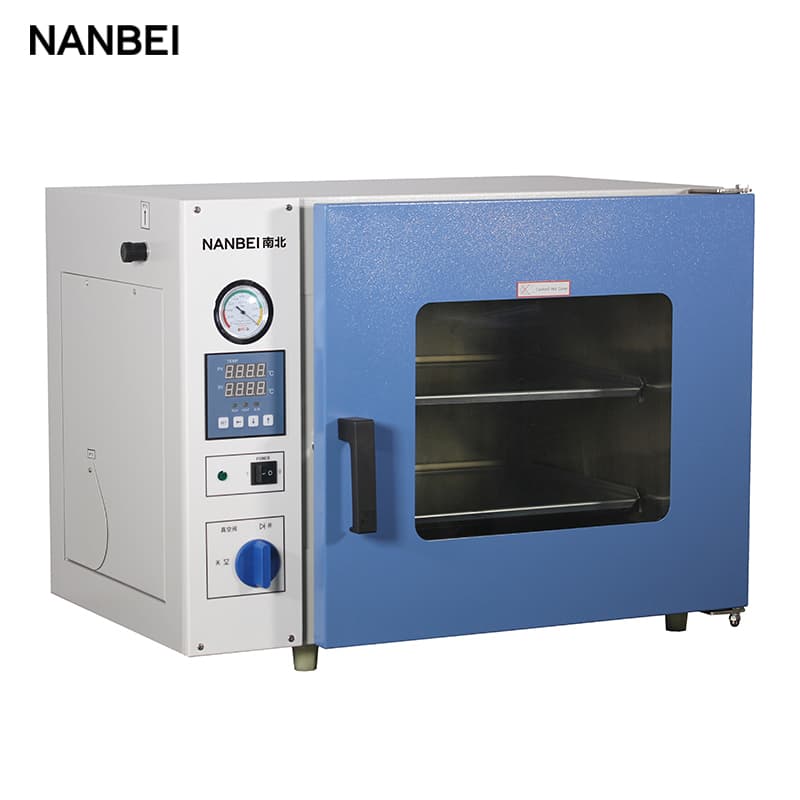

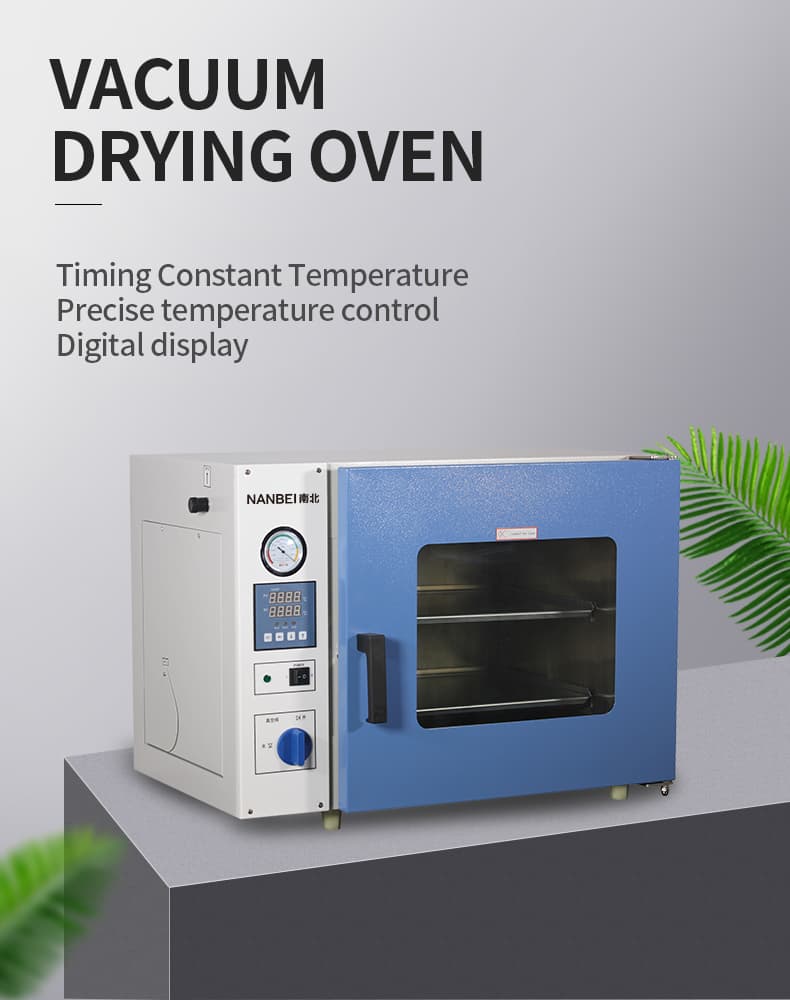

NBD-6050 Vacuum Drying Oven
NBD-6050 Vacuum Drying Oven

NBD-6050 Vacuum Drying Oven

Brand:NANBEI

Model:NBD-6050

Application:For Lab,Hospital,Medical,Pharmaceuticals, Electronics industry and Chemical industry.

product details

Vacuum drying oven

Summary:

Vacuum oven is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily, it can be filled with inert gases, which is especially for a rapid drying of some compound material, widely applied in pharmaceuticals, electronics industry and chemical industry.


Features of the vacuum drying oven:

1.digital display microprocessor temperature controller and timing function ensures a precise and reliable temperature control

2.cuboid chamber maximizes the effective cubage

3.dual-layer-bullet-proof toughened glass door ensures absolutely clear observation on objects in chamber

4.Shutting extent of oven door ifs adjustable, closed-cell silicon gasket ensures a high vacuum degree in oven

5.The chamber is made of stainless steel(or wire-drawing sheet), which allows a durable service

6.“D” series vacuum oven are multiple sections (up to 10 sections) intelligent programmable LCD controller

7.“LC”series vacuum oven are vacuum degree LCD screen controller.

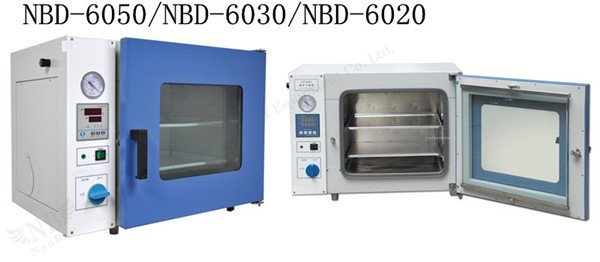

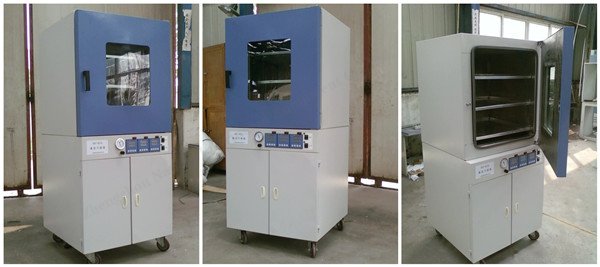

vacuum dry oven

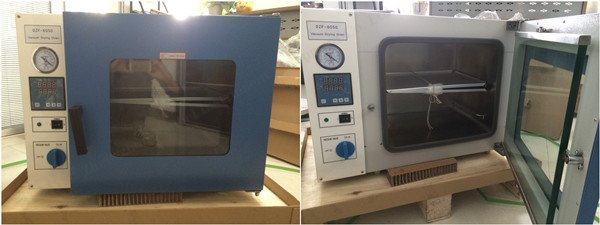

small vacuum drying oven

Technical parameters:

Model

NBD-6500

NBD-6210

NBD-6090

NBD-6050

NBD-6030A

NBD-6020

Voltage

380v 50HZ

220v 50HZ

220v 50HZ

220v 50HZ

220v 50HZ

220v 50HZ

Power

3600w

2200w

1400w

1450w

450w

450w

Temp. range

+10-200℃

+10-250℃

+10-250℃

+10-250℃

+10-250℃

+10-200℃

Temp.

resolution

0.1℃

0.1℃

0.1℃

0.1℃

0.1℃

0.1℃

Constant

volatility

±1℃

±1℃

±1℃

±1℃

±1℃

±1℃

Vacuum

degree

<133Pa

<133Pa

<133Pa

<133Pa

<133Pa

<133Pa

Working temp.

5-40℃

5-40℃

5-40℃

5-40℃

5-40℃

5-40℃

Inner

dimension

630*810

*845

560*600

*640

450*450

*450

415*370

*345

320*320

*300

300*300

*275

Size(mm)

790*1030

*1855

720*805

*1680

610*660

*1400

730*560

*550

630*510

*490

605*490

*450

Shelves

4pcs

3pcs

2pcs

DZF-6050:2pcs

1pcs

1pcs

Working

chamber

material

Stainless

steel

(1Gr18Ni9Ti)

Stainless

steel

(1Gr18Ni9Ti)

Stainless

steel

(1Gr18Ni9Ti)

Cold-rolled plate

Stainless steel

(1Gr18Ni9Ti)

Stainless

steel

(1Gr18Ni9Ti)

Timing

1-9999minutes

1-9999minutes

1-9999minutes

1-9999minutes

1-9999minutes

1-

9999minutes

Note:model 6090,6210,6500 and LC series are equipted with vacuum pump

·specification test under no load condition:ambient temperature is 20C, and relative humidity is 50%

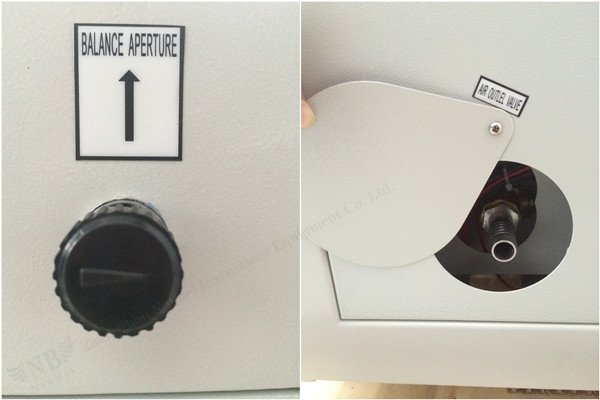

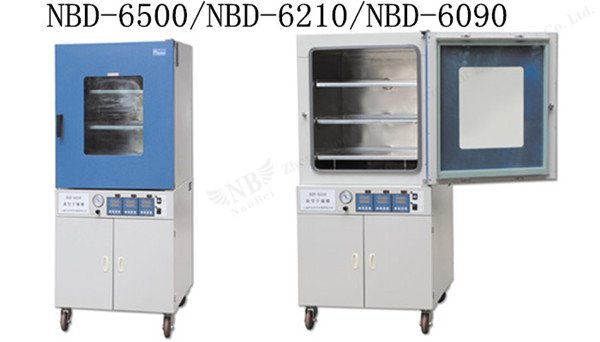

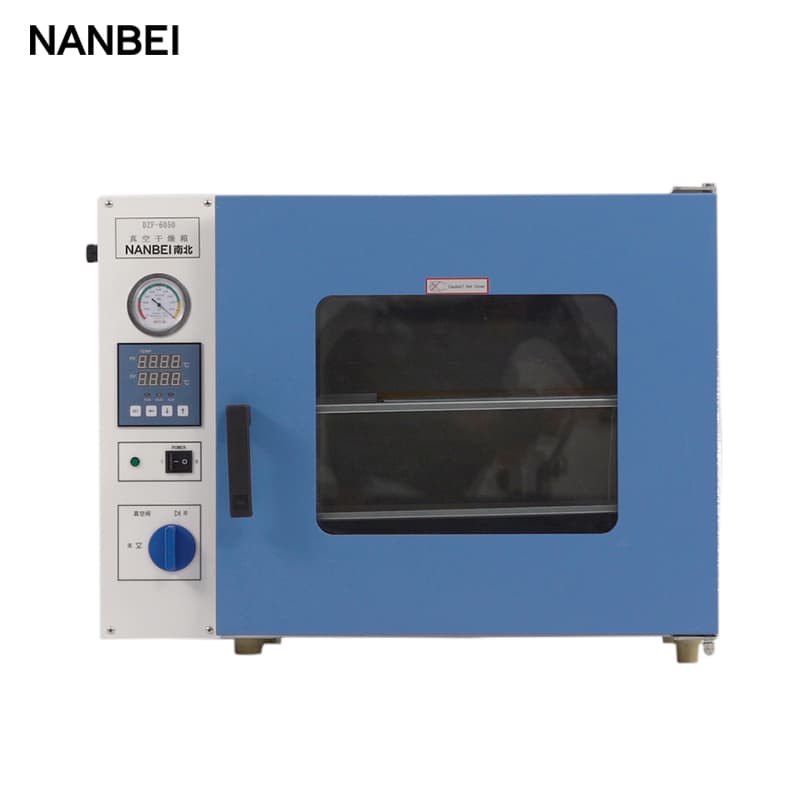

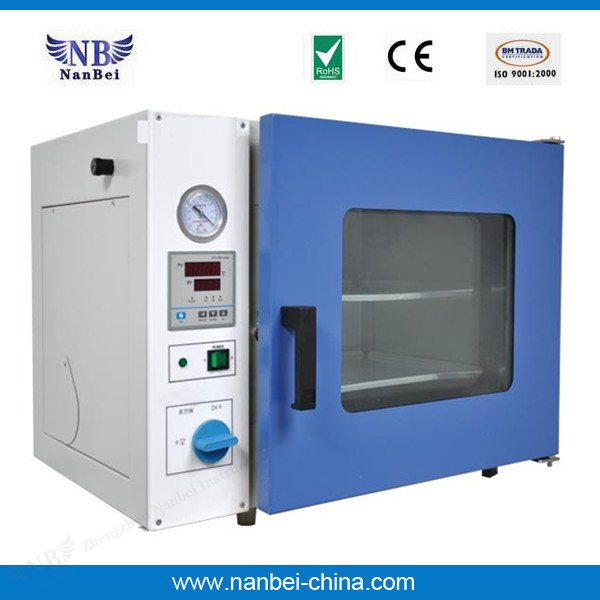

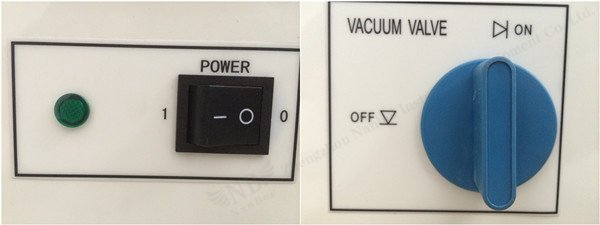

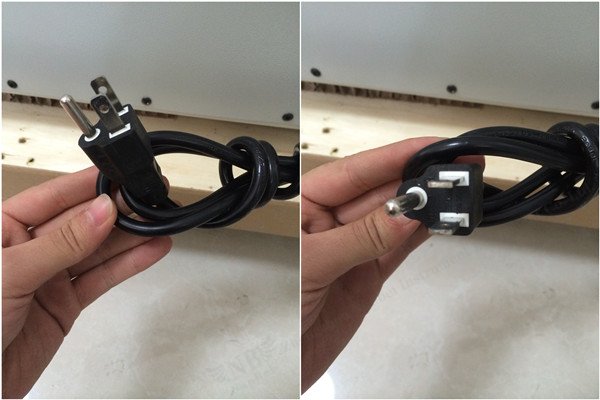

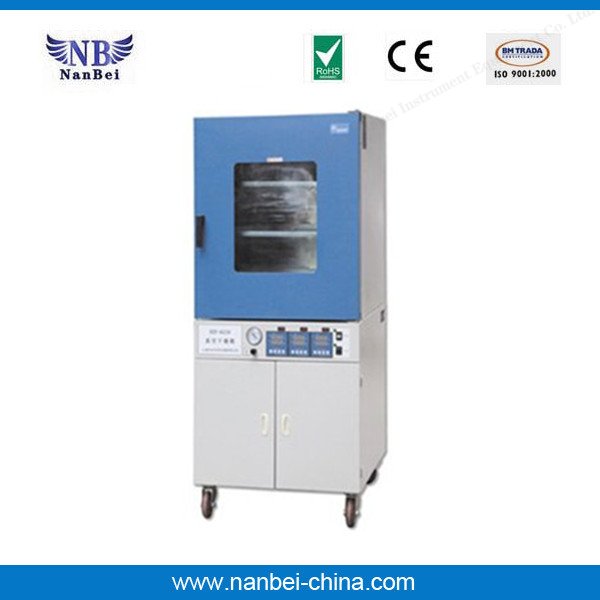

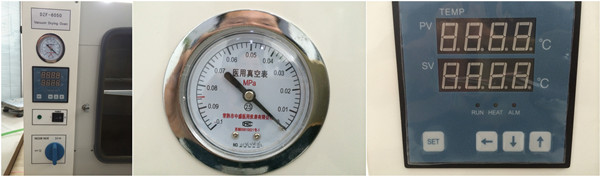

More pictures of vacuum drying ovens:



20l vacuum drying oven
vacuum drying oven for lab

vacuum lab drying oven

medical hot air oven

pharmaceutical vacuum drying oven

laboratory mini dry oven

Options:

1 intelligent programmable LCD temperature controller

2 intelligent programmable temperature controller

3 vacuum pump 2XZ-4(4L/S)  allocation special socket(shanghai)

4 dry filter-Jar

5 gas and liquid separator(vacuum liquid dust filter)

6 inert gas valve

7 RS485 Socket
