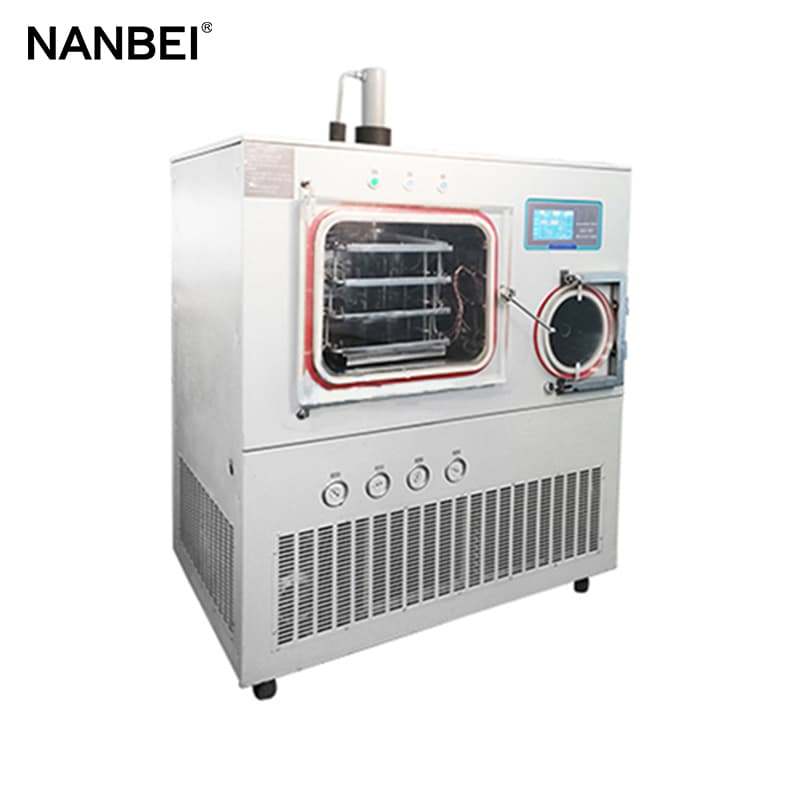

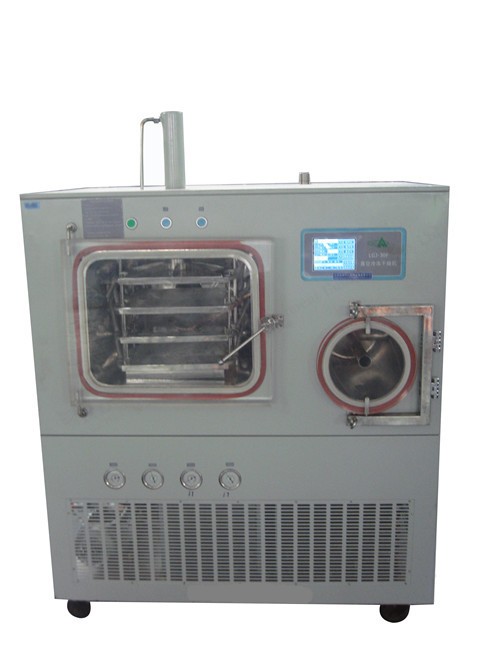

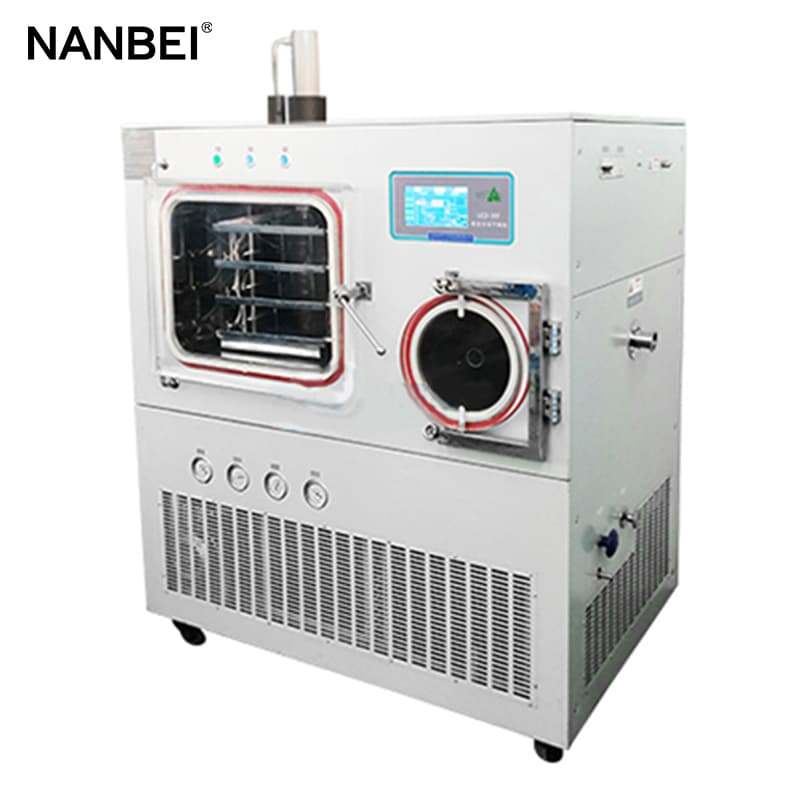

LGJ-30F Freeze Dryer is suitable for pilot scale ,small scale production.
This series is one of our patent products.This series of dryers have heating shelf,
freezing and drying process are finished in same place. It changes the traditional
complicated operation and prevents the product from pollution.
Main Features
With heating shelf and PID control standard, with programmable function
With organic glass observation window, whole process is easy to see
The shelf temperature accuracy is ≤ 1℃
Silicon oil fills hollow shelves, with most uniform shelf temp.,consistent and repeatable drying
Big touch screen LCD display drying curves
Interal surface of rectangular chamber and product tray are constructed of stainless steel
Air-let-in valve with nitrogen is available
Eutectic point test device is optional
PC software is optional to achieve remote control
Technical Parameter
Freeze drying area | 0.306㎡ |
Condenser capacity | 6 kg/24h |
Condenser temperature | Min.≤-70℃ |
Vacuum degree | ≤10 Pa |
Shelf temperature | -50℃----+70℃ |
Shelf layers | 3+1 layers; 70mm spacing |
Shelf size | 300x340x20 mm |
Bulk capacity | 3L, 10mm thickness |
Vial capacity Φ12mm | 1950 pcs |
Vial capacity Φ16mm | 1080 pcs |
Vial capacity Φ22mm | 546 pcs |
Electric defrosting | Available |
Style of press | Hydraulic |
Cooling | Air, draughty, ambient temperature≤25℃ |
Voltage | 380V, 50Hz |
Dimension | 1280x900x1630 mm |
Weight | 400 kg |
Power | 4 KW |
Remark: This product is for civilian use only
