YDS-30B-210 Large-diameter Liquid Nitrogen Biological Container
YDS-30B-210 Large-diameter Liquid Nitrogen Biological Container

YDS-30B-210 Large-diameter Liquid Nitrogen Biological Container

Brand:NANBEI

Model:YDS-30B-210

Application:Animal husbandry artificial insemination,medical hygiene career,biological engineer,Indutrial cold assembly,metal material cold processing,low temperature crush and super conductivity

product details

Liquid nitrogen tank divided into the following types, please choose the right model

1.  Storage-type Liquid Nitrogen Biological Containers

2.  Large-diameter liquid nitrogen biological containers

3.  Transport-type liquid nitrogen biological caontainer

4.  50 Liters liquid nitrogen biological containers

Large-diameter liquid nitrogen biological containers

This series product has the characteristics of relatively large diameter for the short-time cryopreservation of biological speciments, or the use of liquid nitrogen to the cold parts of a larger assembly. Conservation of biological medicine like the vaccines, bacteria, cell in Lab environments,also cryogenic protection of blood work,semens,as well as people, animals and other organs in hospital. Besides application which we said before,it has another interesting purpose,people can use a liquid nitrogen tank as a food container for very cold products such as ice cream.In fact, a liquid nitrogen tank can be used to make ice cream.  Mixing liquid nitrogen with half and half milk, sugar, and other flavors

 can result in a delicious form of ice cream.

Features

1.The use of high-strength aluminum air.

2. Can be used to put a drawer-style tube, to facilitate identification and access to independent samples.

3. It is equipped with protective cover, can avoid the bump in the use, impact.

4. Can be stored, and animal organs. Larger parts of the cold assembly.

5, High vacuum multi-layer insulation designed to provide a vacuum of not less than five years of quality assurance.

Parameters:

Model

Volume

(L)

Neck diameter

≤mm

External

Diameter

≤mm

Height

≤mm

Net weight

≤kg

Liquid stored time(days)

Liquid evaporation(L/day)

B

A

B

A

YDS-10-80

11.2

80

305

550

6.3

48

57

0.250

0.200

YDS-10-125

11.2

12.5

305

550

6.3

25

32

0.400

0.300

YDS-10-210

11.2

210

305

550

7

13

18

0.700

0.600

YDS-15-125

16

125

365

600

9

42

53

0.400

0.300

YDS-30-80

32

80

446

670

14.5

147

174

0.260

0.220

YDS-30-125

21

125

446

670

14.6

90

112

0.371

0.300

YDS-30-210

32

210

446

670

16

40

50

0.700

0.600

YDS-35

35.5

80

446

695

17

159

187

0.250

0.200

YDS-35-125

35.5

125

446

695

17

95

125

0.374

0.309

YDS-50B-80

50

80

500

850

22

147

189

0.400

0.300

YDS-50B-125

50

125

500

850

22

110

134

0.476

0.400

YDS-50B-210

50

210

500

850

22

50

60

1.000

0.833

YDS-60B-210

60

210

560

900

32

63

74

1.000

0.851



 small liquid nitrogen container

Liquid nitrogen biological containers Accessories

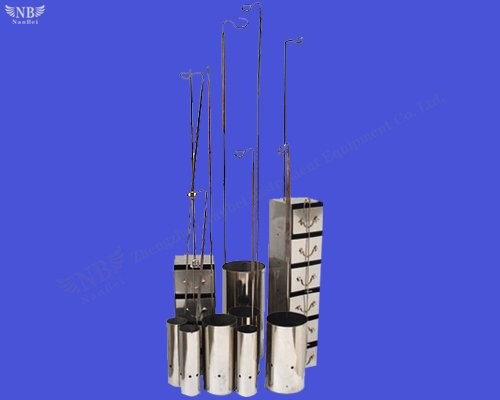

1.Canister

Made by stainless steel,can be numbered.It has Cylinder type and Multilayer square type.

Cylinder type has wide application,standard configuration of Liquid nitrogen tank.

Multilayer type has advantage of large volume samples access and storage,stainless steel square box is special design

for biology colleague and hospital.

liquid nitrogen container 35 liters

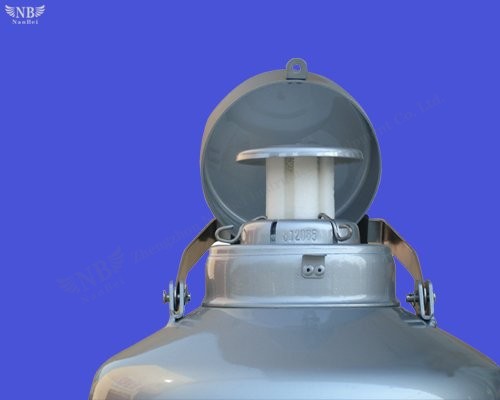

2.Locked lid

1.made by high-strong alluminum alloy.

2.Have advantages of anti-corrosion,low temperature resistance,provent from frost crack and frozen collapse.

3.Combined with up and down flip cover,lock is optional for customer, which is good for biological specimen inside safety storage and manage.

liquid nitrogen transport tank

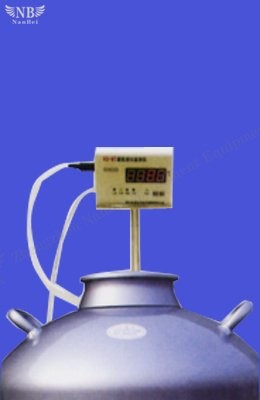

3.Liquid level alarm

Automatically inspect biological specimen which inside of liquid nitrogen tank,once the temperature inside beyond the control level,

it will alarm with sound or light to ensure specimen safety.Temperature range 0~196℃,resolution : 1℃

liquid nitrogen tank 30 litres

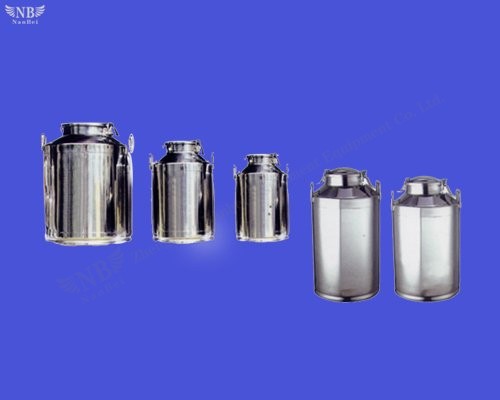

4.Stainless steel milk storage barrels:

This series product adopt stainless steel production, suitable for milk short-time storage and transportation, with large neck diameter,have advantage of  nice appearance, high intensity, easy to

clean thoroughly and reliable sealing.

Features

1.Full stainless steel products, high strength and durability

2.Milk barrels outside surface uses the polishing treatment, compact and concise.

3.Frosted internal surface , easy to clean thoroughly.

4.Food grade rubber sealing,up to health and safety stardand.

liquid nitrogen storage tank price
