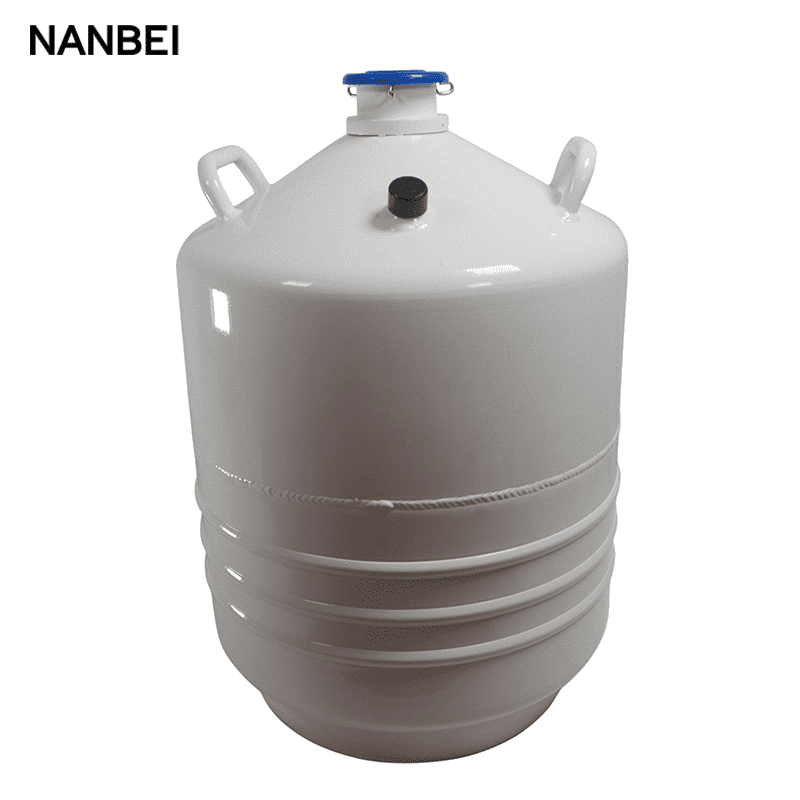

YDS-30-80 30L Large-diameter Liquid Nitrogen Biological Containers
YDS-30-80 30L Large-diameter Liquid Nitrogen Biological Containers

YDS-30-80 30L Large-diameter Liquid Nitrogen Biological Containers

Brand:NANBEI

Model:YDS-30-80

Application:Animal husbandry artificial insemination,medical hygiene career,biological engineer,Indutrial cold assembly,metal material cold processing,low temperature crush and super conductivity

product details

Liquid nitrogen tank divided into the following types, please choose the right model

1.  Storage-type Liquid Nitrogen Biological Containers

2.  Large-diameter liquid nitrogen biological containers

3.  Transport-type liquid nitrogen biological caontainer

4.  50 Liters liquid nitrogen biological containers

IMGP0171 (1).JPG

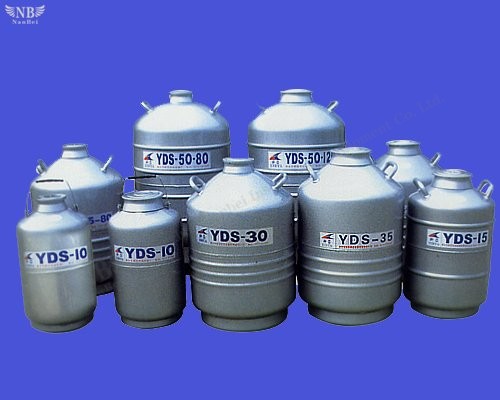

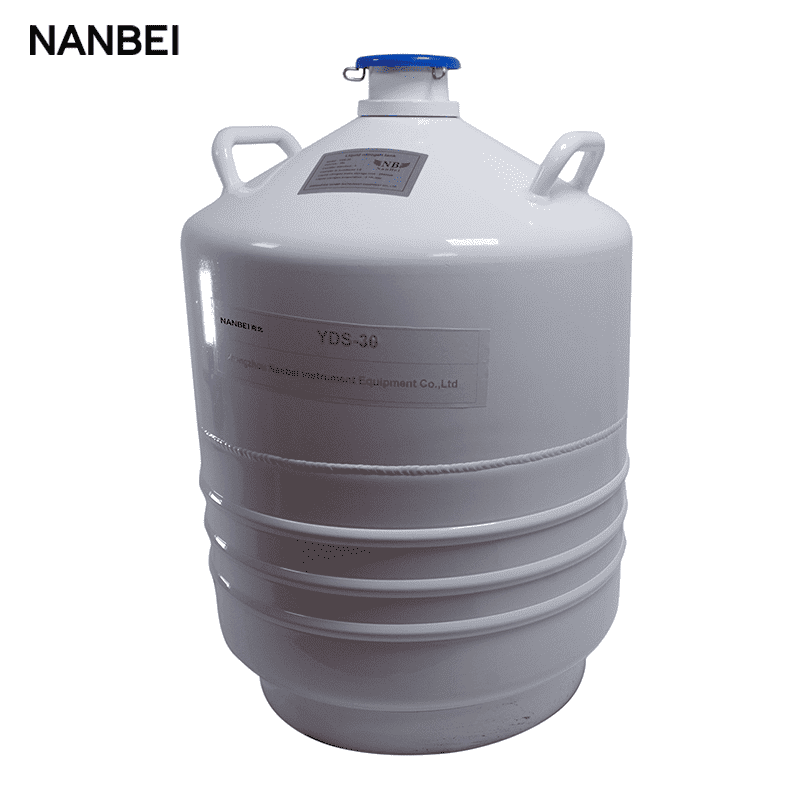

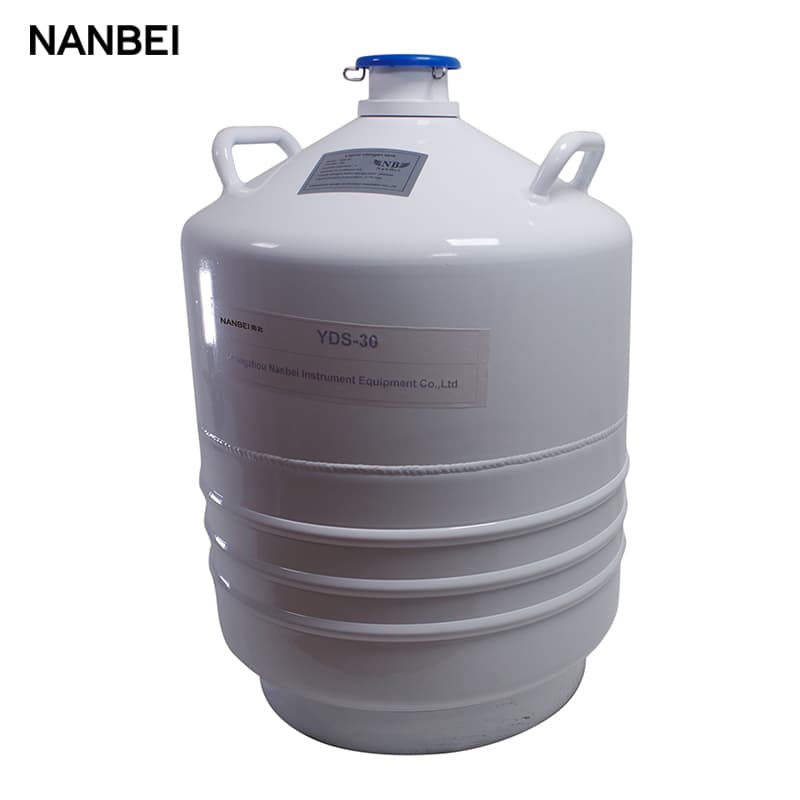

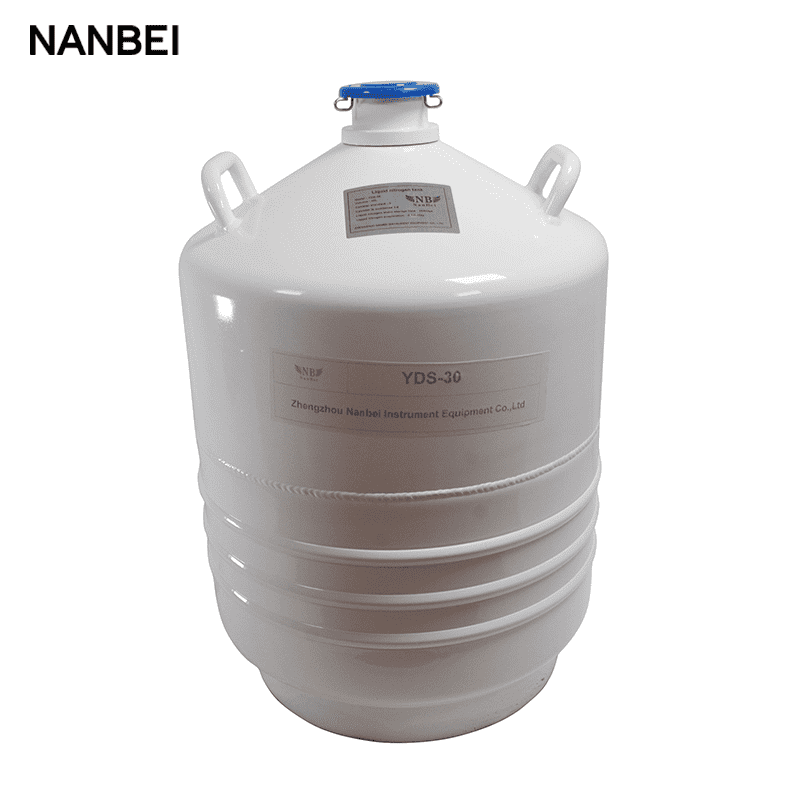

Large-diameter liquid nitrogen biological containers

The series product has the characteristics of relatively large diameter for the short-term preservation of liquid nitrogen, a large volume of short-term presevation of biological speciments, or the use of liquid nitrogen to the cold parts of a larger assembly. Conservation of biological medicine in the vaccines, bacteria, cell, as well as people, animals and other organs. With a larger caliber, the advantages of easy to operate.

1.The use of high-strength aluminum air.

2. Can be used to put a drawer-style tube, to facilitate identification and access to independent samples.

3. It is equipped with protective cover, can avoid the bump in the use, impact.

4. Can be stored, and animal organs. Larger parts of the cold assembly.

5, High vacuum multi-layer insulation designed to provide a vacuum of not less than five years of quality assurance.

IMGP0191 (1).JPG

Parameters:

Model

Volume (L)

Neck diameter

≤mm

External Diameter

≤mm

Height ≤mm

Net weight ≤kg

Liquid stored time(days)

Liquid evaporationL/day

B

A

B

A

YDS-10-80

11.2

80

305

550

6.3

48

57

0.250

0.200

YDS-10-125

11.2

12.5

305

550

6.3

25

32

0.400

0.300

YDS-10-210

11.2

210

305

550

7

13

18

0.700

0.600

YDS-15-125

16

125

365

600

9

42

53

0.400

0.300

YDS-30-80

32

80

446

670

14.5

147

174

0.260

0.220

YDS-30-125

21

125

446

670

14.6

90

112

0.371

0.300

YDS-30-80

32

210

446

670

16

40

50

0.700

0.600

YDS-35

35.5

80

446

695

17

159

187

0.250

0.200

YDS-35-125

35.5

125

446

695

17

95

125

0.374

0.309

YDS-50B-80

50

80

500

850

22

147

189

0.400

0.300

YDS-50B-125

50

125

500

850

22

110

134

0.476

0.400

YDS-50B-210

50

210

500

850

22

50

60

1.000

0.833

YDS-60B-210

60

210

560

900

32

63

74

1.000

0.851

liquid nitrogen storage tank price

Liquid nitrogen biological containers accessories

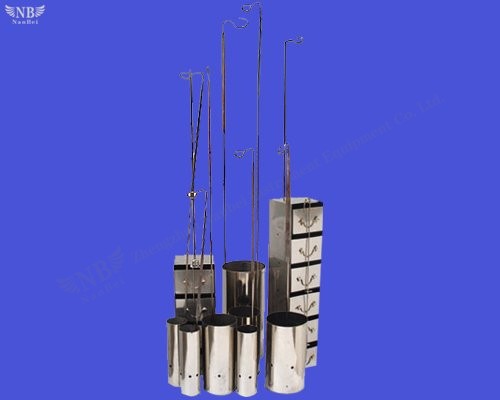

1.Reference tube:

The use of stainless steel manufacture, the middle by the low-temperature-resistant glass made of glass cloth wrapped to prevent conduction of liquid nitrogen, get the convenience. The series products are multi-layer tube to a square stainless steel box, designed for biological instifutes, the design of the hospital store.

stainless steel liquid nitrogen tank

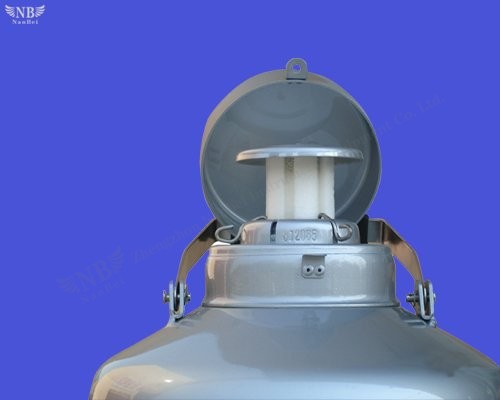

2.Cover lock:

a. The use of high-strength aluminum

b. With anti-corrosion resistance, low temperature of liquid nitrogen to prevent Frost Crack, the advantages of cold collapse.

c. By the next filp the clamshell and is composed of two parts, the user can lock(lock the other purchase by the user). In favor of biological sample storage containers to preserve the security and management.

20l liquid nitrogen container

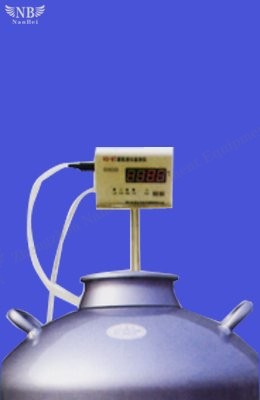

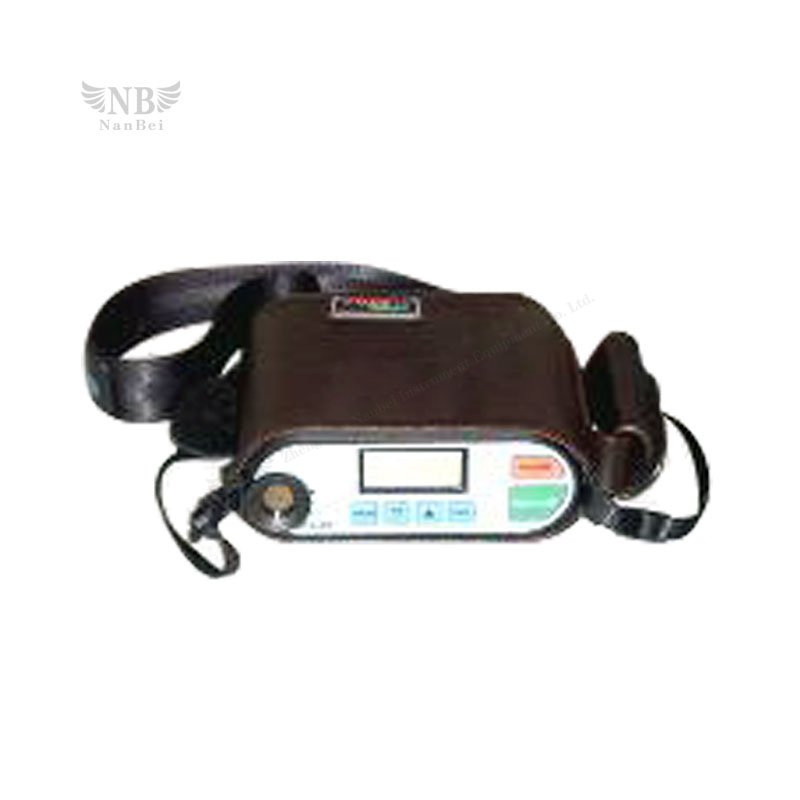

3.Liquid level alarm:

Automatically monitoring the storage of containers of biological samples when the temperature over the range of temperature control for sound, light alarm, ensure the safety of storage of samples. Adjustable temperature control range of products to 0-196℃, a resolution of 1℃.

1000l liquid nitrogen tank

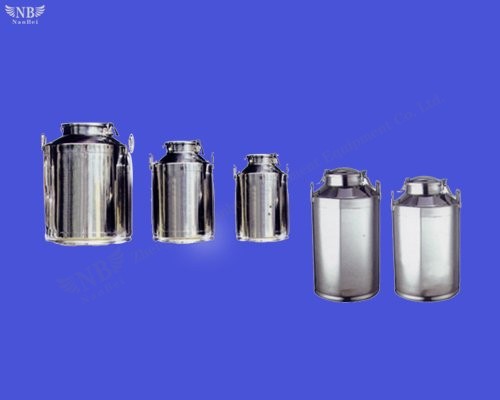

4.Stainless steel storage with milk barrels:

This series product adopt stainless steel production, suitable for storage of liquid milk and transportation, short-term operation relatively large caliber. With nice appearance, the intensity is high, easy to clean thoroughly and reliable sealing advantages.

1.Full stainless steel products, high strength and durability

2.Milk barrels outside surface uses the polishing treatment, concise and easy.

3.The pail inside surface grind arenaceous technology adopted, easy to clean thoroughly.

4.Barrel used for sealing, foodstuff rubber ring with health and safety requirements.

biological liquid nitrogen tank
