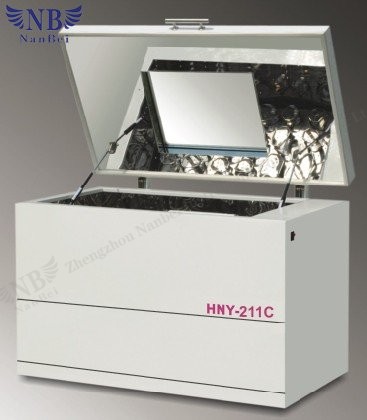

Constant temperature shaking incubator with lllumination



This type of instrument is widely used in germ culture, ferment, hybridization, and research of biochemical reaction; enzyme and cellular tissue and all those require high temperature and oscillation frequency.

Control feature:

Function of parameters memory and electricity incoming recovery when data lost because of power cut or system

Structure Feature:Sort: Microcomputer LCD type

Performance feature:

P.I.D environmental scanning micro-processing controller and intelligentized audio and visual alarm,The large LCD screen clearly indicates the preset and real parameters. The operating parameter locked by encryption prevents misoperation.7.Operating parameter memory function avoids monotonous operations AC inductive long-life motor design, broad speed regulation, constant torque, constant speed of rotation, no carbon brush and maintenance free. Over-temperature audio and visual alarming function can automatically cut off the power when the motor overheated, temperature out of control or abnormal temperature occurs. Provided with power-off recovery function, the equipment can automatically recover to run according to the originally designed programs when the external power is recovered after a sudden cut off. Wiring of the acceleration control ensures soft start, smooth acceleration and the security of samples. The luxurious streamline mould involving aesthetic designing, static plastic-spraying case and large toughened glass window. Use of microcomputer intelligent control system, powerful, strong anti-interference ability. Can achieve the 1-24 time period of the day and night free combination of temperature and illumination parameters of ten sections of programming. Whole quiet design, electrostatic spray cabinet with tempered glass observation window, always observe the inside temperature and light conditions. The top of the built-in light, special biological light source spectral characteristics, high strength, fever, particularly suitable for the experimental requirements



Control mode P.I.D microcomputer processing chip
Convection mode Forced convection
Oscillation mode convolution Reciprocate
Display LCD display
USB data download system Yes
Kudan control system Yes
Lllumination 4  12000LX(max) No
Cyclotron frequency range 30-300rpm/min
Cyclotron frequency accuracy ±1
Shake plate shimmy range(mm) Ø26



Max configuration 100ml*66/250ml*45/




250ml*45/500ml*28/1000ml*18/2000ml*11/5000ml*6 250ml*46/500ml*33/1000ml*18
Standard configuration



2000ml*8 500ml*33
Pallet size(mm) 920*510 800*520
Timing(h) 0-999
Temp. range(℃) Ambient temp.+5-60 4-60 Ambient temp.+5-60 4-60 Ambient temp.+5-60 4-60 Ambient temp.+5-60 4-60
Temp.accuracy ±0.1℃
Temp. uniformity(℃) ≤0.5(37℃)
Temp. fluctuation(℃) ≤0.2(37℃)
Plate number 1
Size(mm) 1200*740*800 1200*740*1000 1200*740*800
Volume(L) 188 260 188
Power(w) 1100 1300 650 900 650 950 650 900
Voltage AC220±10% 50-60HZ
Ambient temp.(℃) 5-25
