YDS-2 2L Storage-type Liquid Nitrogen Container
YDS-2 2L Storage-type Liquid Nitrogen Container

YDS-2 2L Storage-type Liquid Nitrogen Container

Brand:NANBEI

Model:YDS-2

Application:Animal husbandry artificial insemination,medical hygiene career,biological engineer,Indutrial cold assembly,metal material cold processing,low temperature crush and super conductivity

product details

Liquid nitrogen tank divided into the following types, please choose the right model

1.  Storage-type Liquid Nitrogen Biological Containers

2.  Large-diameter liquid nitrogen biological containers

3.  Transport-type liquid nitrogen biological caontainer

4.  50 Liters liquid nitrogen biological containers

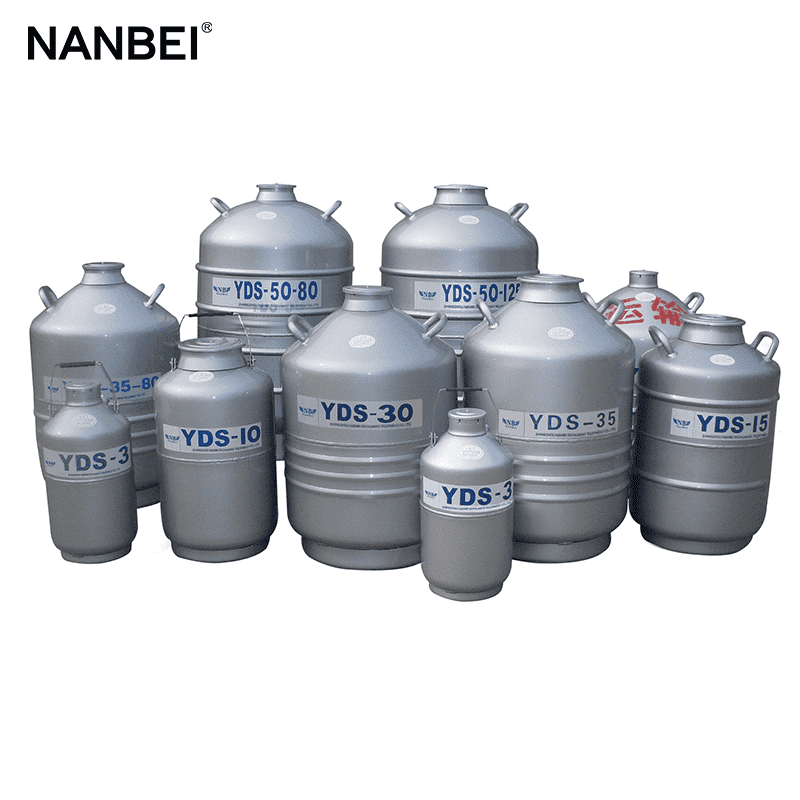

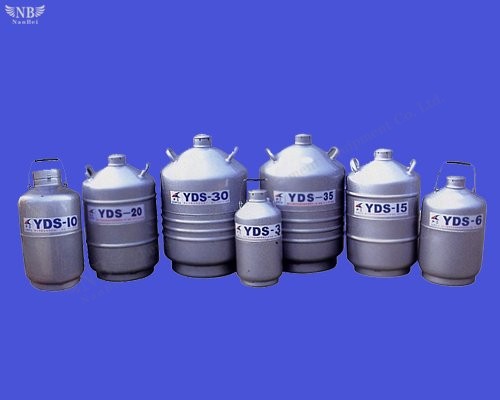

Storage-type Liquid Nitrogen Biological Containers


Application:

standing indoor long bull semen, embryos, stem cells, skin, internal organs, vaccines, laboratory specimens are preserved, the mechanical components of the cooling and cooling, cold therapy for hospital use

Features:

The series of products with small size, light weight, easy to carry, compact and lightweight, static storaqe on low nitrigen consumption, cost-effective advantages.

1.The use of high-strength aluminum air, so light weight products.

2.Products easy to long-term preservation of biological specimens, preservation of animal semen, vaccines biomedical areas/species/cell.

3.Itis equipped with protective cover, to prevent the use of the bump, bruises.

4.Cylinder can be numbered to facilitate the identification and independent access to the safety of storage of samples.

5. According to the needs of users with lock cover to protect the sample containers for storage security.

6. High-vacuum multi-layer thermal design to provide no less than five years to ensure that the vacuum.


Parameters:

Model

Volume

(L)

Neck diameter

≤mm

External

Diameter

≤mm

Height

≤mm

Net weight

≤kg

Liquid stored time(days)

Liquid evaporation(L/day)

B

A

B

A

YDS-2

2.5

50

224

370

2.8

20

25

0.12

0.1

YDS-3

3.15

50

224

420

3.4

26

31

0.12

0.1

YDS-6

6

50

305

460

4.5

52

63

0.12

0.1

YDS-10

11.2

50

305

550

6.3

85

110

0.12

0.09

YDS-15

16

50

365

600

9

134

161

0.12

0.1

YDS-20

21

50

365

610

9.5

170

210

0.12

0.1

YDS-30

32

50

446

670

14.5

254

295

0.12

0.1

YDS-35

35.5

50

446

695

17

250

310

0.12

0.1

liquid nitrogen container 2 liter

Liquid nitrogen biological containers Accessories

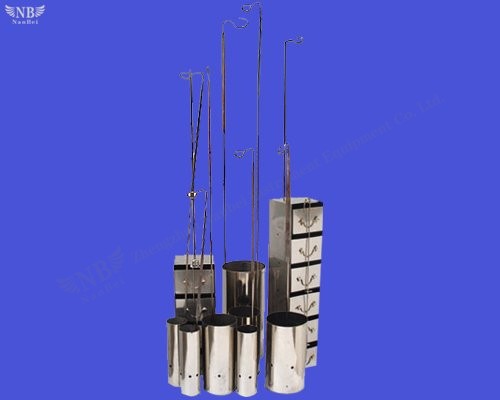

1.Canister

Made by stainless steel,can be numbered.It has Cylinder type and Multilayer square type.

Cylinder type has wide application,standard configuration of Liquid nitrogen tank.

Multilayer type has advantage of large volume samples access and storage,stainless steel square box is special design

for biology colleague and hospital.

small liquid nitrogen container

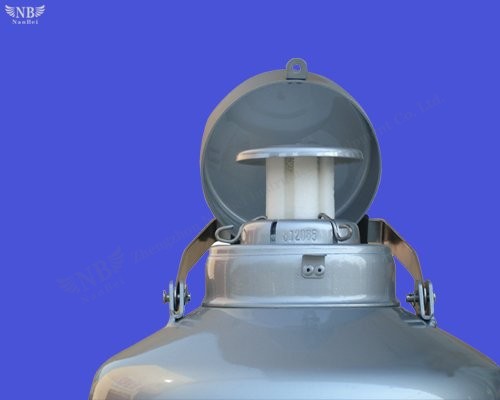

2.Locked lid

1.made by high-strong alluminum alloy.

2.Have advantages of anti-corrosion,low temperature resistance,provent from frost crack and frozen collapse.

3.Combined with up and down flip cover,lock is optional for customer, which is good for biological specimen inside safety storage and manage.

liquid nitrogen transport tank

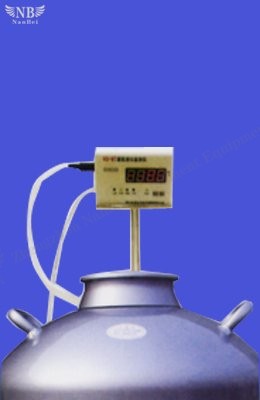

3.Liquid level alarm

Automatically inspect biological specimen which inside of liquid nitrogen tank,once the temperature inside beyond the control level,

it will alarm with sound or light to ensure specimen safety.Temperature range 0~196℃,resolution : 1℃

nitrogen tank liquid

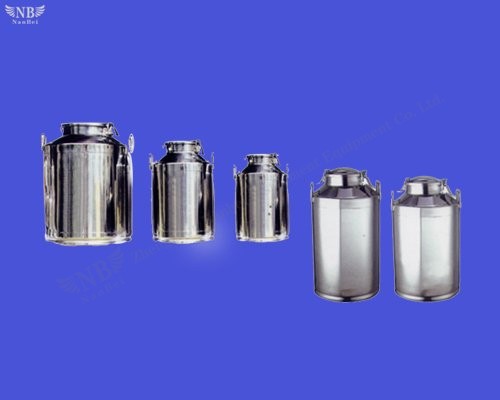

4.Stainless steel milk storage barrels:

This series product adopt stainless steel production, suitable for milk short-time storage and transportation, with large neck diameter,have advantage of  nice appearance, high intensity, easy to

clean thoroughly and reliable sealing.

Features

1.Full stainless steel products, high strength and durability

2.Milk barrels outside surface uses the polishing treatment, compact and concise.

3.Frosted internal surface , easy to clean thoroughly.

4.Food grade rubber sealing,up to health and safety stardand.

liquid nitrogen storage tank
