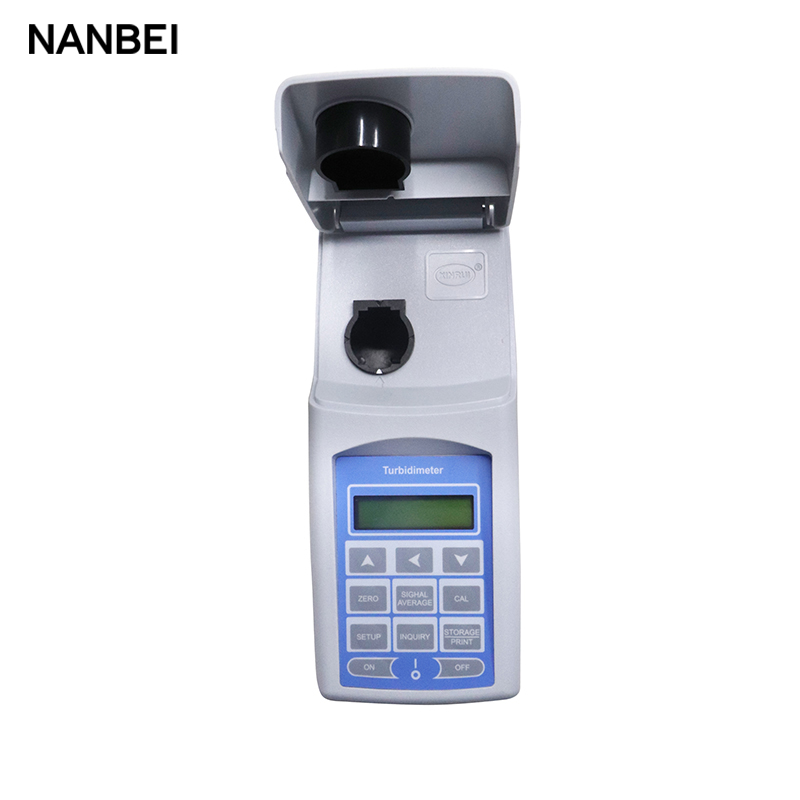

WGZ-2B Portable Turbidimeter

Brand:NANBEI

Model:WGZ-2B

Application:

CONTACT NOW Chat Now

product details

WGZ-2B Portable Turbidimeter

Summary of functions

Scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters. It adopts the Formazine standard solution of turbidity specified in international standard ISO7027, and NTU as the measure unit

It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.

Product characteristics

A、 AC & DC power supply, low power consumption, cabinet and handsome contour design, facilitating field and lab use;

B、 Adopting big-screen highly transparent LCD display, with comfortable reading, and free of ill influence from sunlight;

C、The configuration with the high-automatic & multi-function microcomputer, equipped with the RS232 serial communication interface to connect the printer.

D、The imbedded clock memory & storage system can store the measurement & correction data in real time, and can store and transfer 20 groups of the measurement data for long time, and can be used for the historic reference.

E、The quick automatic correction, with the prompt of the self-diagnosis information, rapid and stable response, reliable maintenance-free operation

Specifications

Model	WGZ-500B	WGZ-2B	WGZ-3B	WGZ-4000B
Minimum Principle	90°scattered light
Minimum readout（NTU）	0.01	0.001	0.01	0.001
Measuring range（NTU）	0-50 0-500	0-10 0-100 0-500	0-10 0-100 0-1000	0-10 0-100 0-1000 0-4000
Basic error F.S	±6％（±2％F.S）
Repeatability	≤0.5%
Zero draft（NTU）	±0.5％F.S
Power supply	DC 1.5V, 5 AA alkaline dry cells AC 220V/50Hz DC7.5V 0.2A power supply adapter
Characteristics	Microcomputer configuration, with average measurement mode, on time display, data storage and query functions, range switch, automatic to zero and 1to5 automatic calibration, equipped with RS232 communication interface, data can be allocated to external micro printer.
