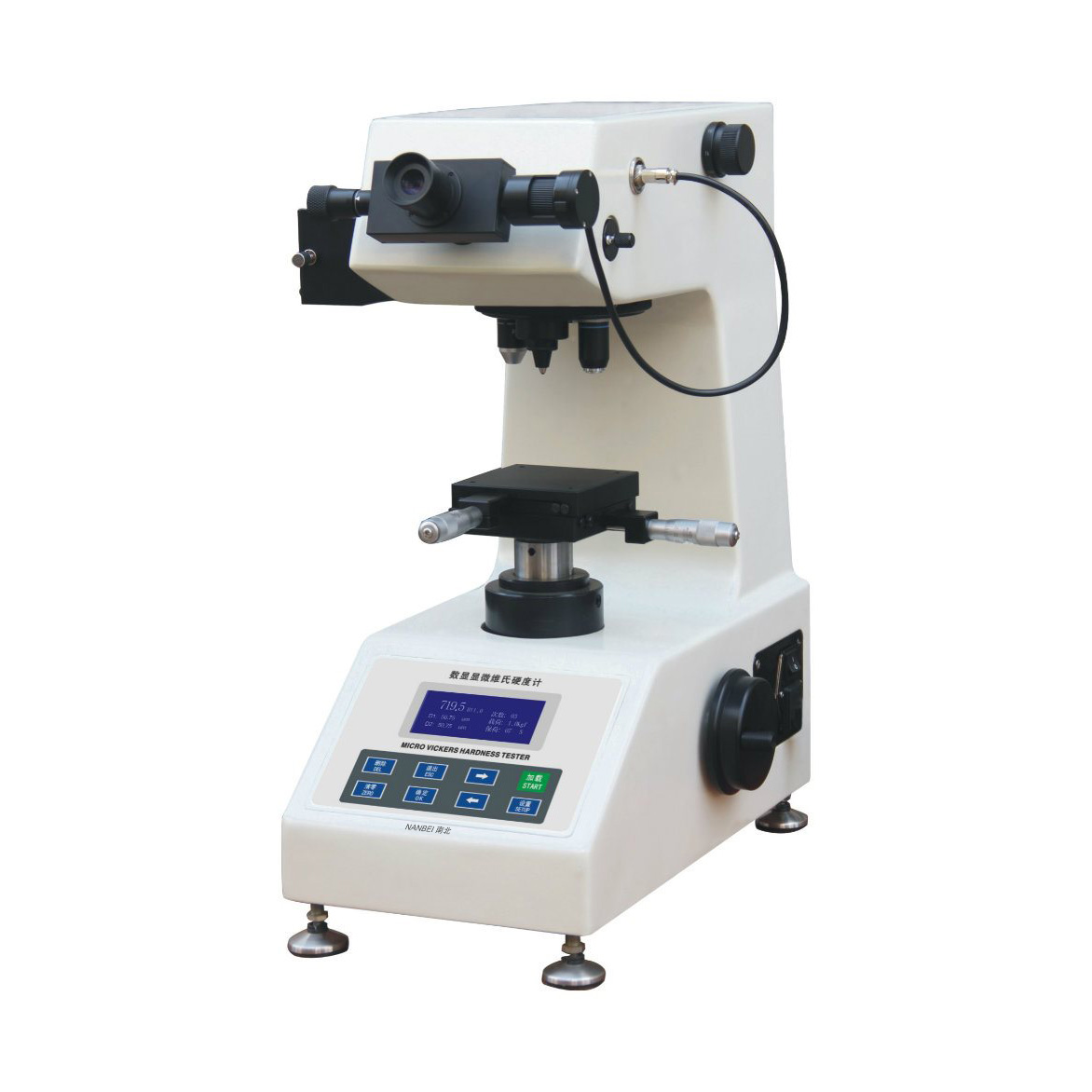

HV-1000 Microhardness Tester
HV-1000 Microhardness Tester

HV-1000 Microhardness Tester

Brand:NANBEI

Model:HV-1000

Application:

product details

Product Details:

MODEL HV-1000 MICROHARDNESS TESTER



Feature & Use:

* Frictionless loading shaft, high precision testing force

* Automatic testing process, no human operating error

* Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E384

It can be used to determine the Vickers hardness of steel, non-ferrous metals, ceramics, treated layers of metal surface, and the hardness grads of carburized, nitrided and hardened layers of metals. It is also suitable to determine the Vickers hardness of micro and super thin parts.



Specifications

Measuring range: 5-3000HV

Test force: 0.09807, 0.2452, 0.4904, 0.9807, 1.961, 2.942, 4.904, 9.807N (10, 25, 50, 100, 200, 300, 500, 1000gf)

Magnifications of the optical micrometer: 500X, 125X

Min. measuring unit: 0.25μm

Max. height of test piece: 75mm

Depth of throat: 100mm

Power supply: 220 or 110V AC, 50/60Hz

Dimensions: 340 x 160 x 375mm

Weight: approx. 40kg


Main accessories

Coordinate anvil: 1 pc.

Thin shaft anvil: 1 pc.

Thin plate anvil: 1 pc.

Flat nose pliers: 1 pc.

Large V-notch anvil: 1 pc.

Small V-notch anvil: 1 pc.

Diamond pyramid penetrator: 1 pc.

Micro-Vickers standardized block: 2 pcs.

Electronic calculator: 1 pc



Optional accessories

Knoop penetrator

SP-5 Vickers Video measuring apparatus

CCD camera and image processing system
