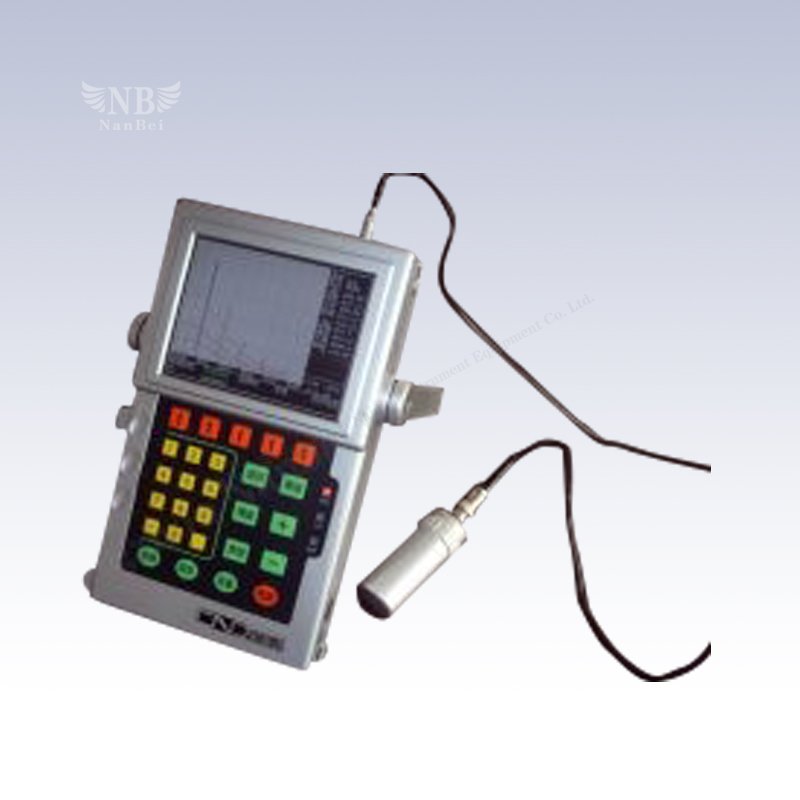

ST-2068 Digital Ultrasonic Flaw Detector

Product introduction:

The instrument can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate, evaluate and diagnose. Widely used in laboratory, hospital special prosecutor, shipbuilding, oil and gas equipment, aerospace, defense, chemical, electric power, iron and steel, metallurgy, railway, automobile manufacturing, machinery, boilers, pressure vessels, special equipment, oil pipelines, construction, mold manufacturing and other industries. Our forgings, castings, plate, pipe, bar, steel alloy type parts of the testing has a wealth of experience; customers located throughout the country, such as the National Special Inspection Institute, National Steel Testing Center, Shanghai Petroleum Machinery Manufacturing Company, Shanghai Wind electric Power Company, Zhejiang carmaker BYD, China Railway Bureau, Xinjiang Petroleum equipment manufacturers and so on.

Functions and features:

1,  Automatic test probe zero velocity and K values.

2,  Automatic production DAC curve.

3,  Automatic displays the flaw echo position (level, depth, distance, when the value).

4,  Automatic shutter sound and light alarm (door position, the door width, door height freely adjustable).

5,  Free switching 100 channel group testing process.

6,  Automatically generate standard inspection report.

7,  Free to input the industry testing standards report.

8,  All imports of original motherboard devices.

9,  Large-capacity storage, 6000 testing data space, data is not lost after power.

10, Long working hours, no memory effect efficient lithium battery, ensure that continuous working time is more than eight hours

11, Channel password, testing personnel can be stored their inspection channels, permanently kept not is modified by someone else.

12,  Built-in communications software, connect the network cable directly to your computer to print and save all testing data.

13,  Two-way communication, users can edit their own inspection report format.

14,  Testing waveforms save time dynamic video.

Technical parameters:

Gain range

0-120dB,0.1,2.0,6.0dBStepping

Frequency Range

0.420.0MHz

Detection range

0.59999mm

Sensitivity margin

62dB

Resolution

40dB

Dynamic Range

32dB

Horizontal linear

1m within 0

CUI linear

3

Pusler

Variable pulse generator

Work Mode

Single / Dual Penetrate

Damping

50/100/400Ω automatically match

Detection method

Half-wave / Radiofrequency

suppression

0 to 99% linear inhibition

Display ambient temperature

-20 ~ 50

The charger

220 ~ 240V AC input

Operating Voltage

7.4± 0.3V

Size

215 * 175 * 33mm

Weight

1kg

Standard configuration:

main engine

1set

Probes

2(straight probe, angle probe each one)

Probe line

2

Removable lithium polymer battery

2

Charger

1

Power cable

1

Certificate

1

Instructions

1

Instrument package

1

Instrument case

1

Instrument strap

1

Inspection list

2

Packing List

1
