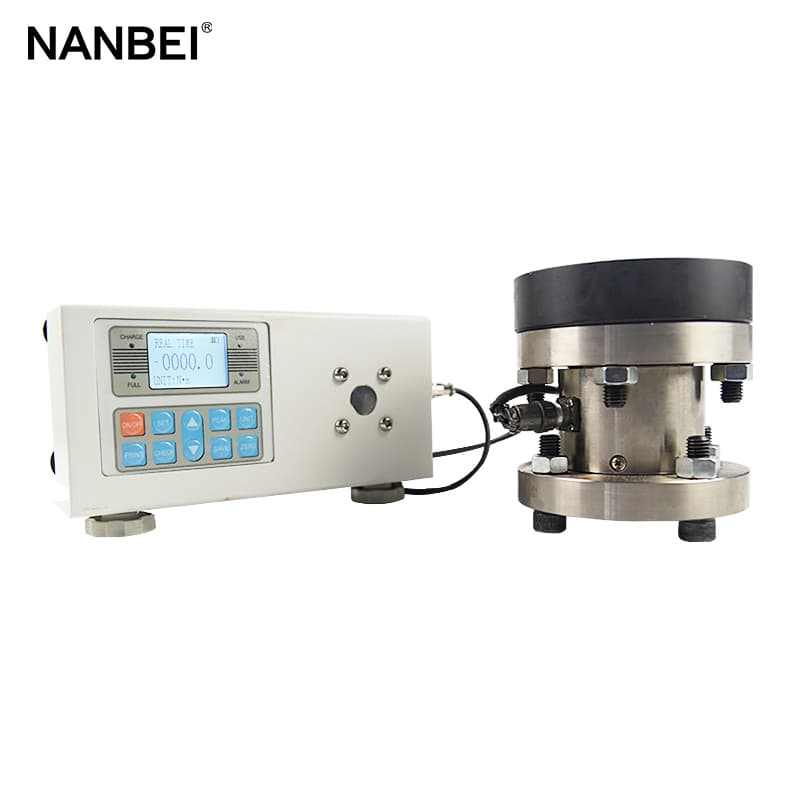

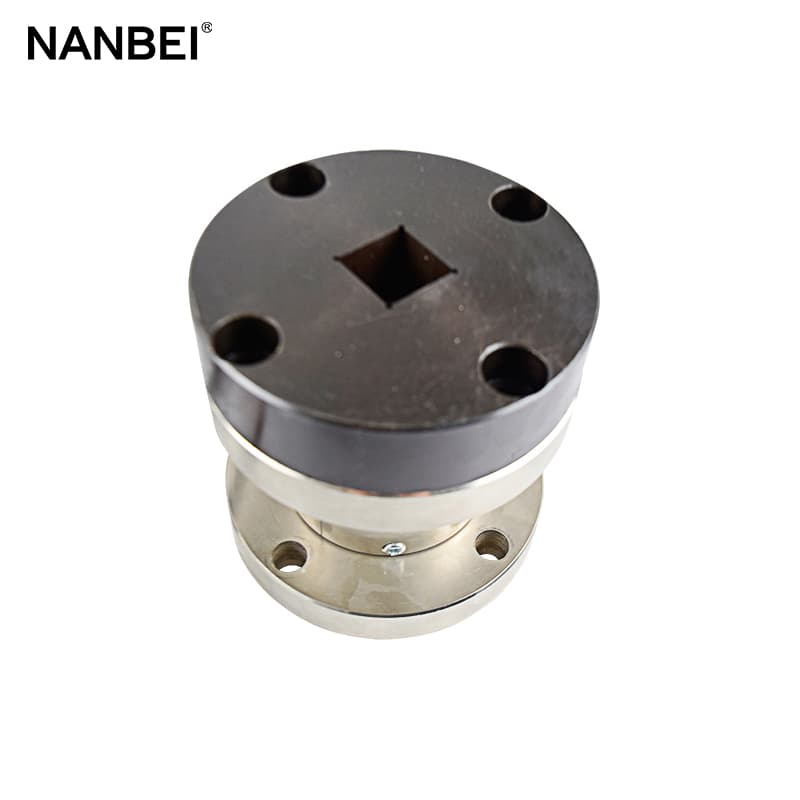

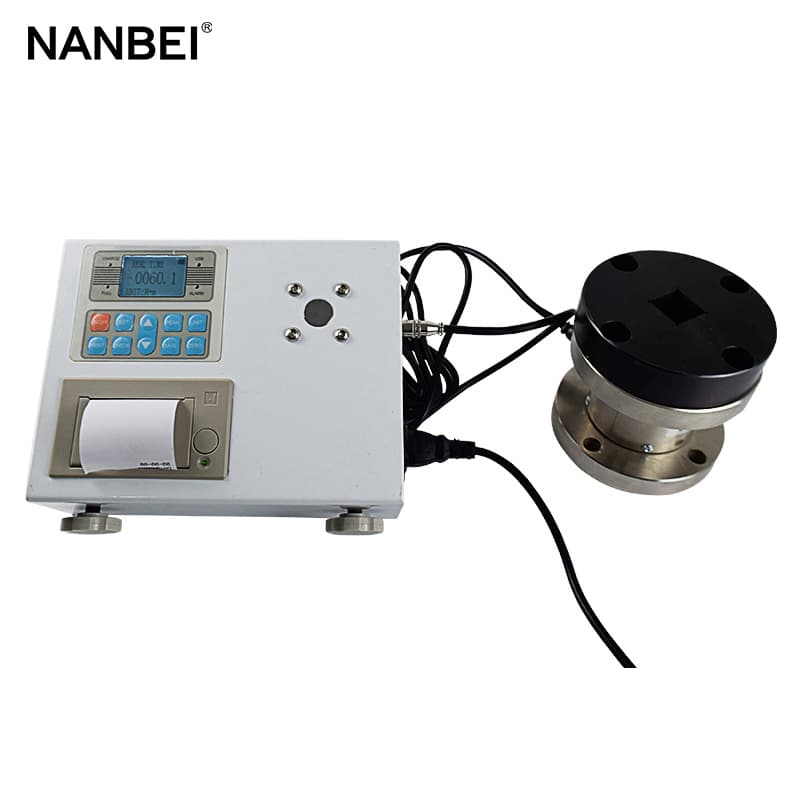

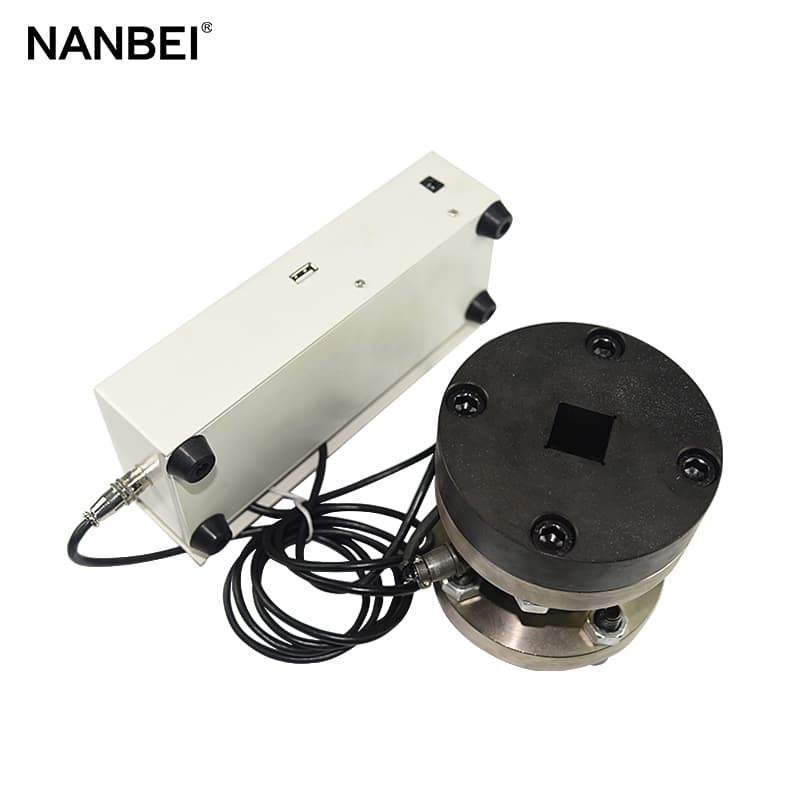

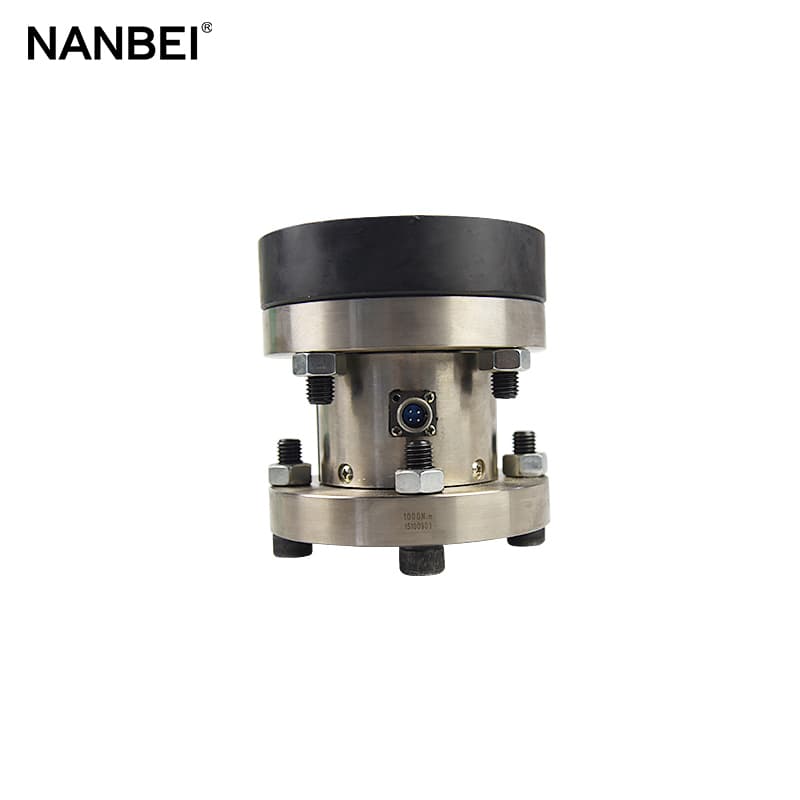

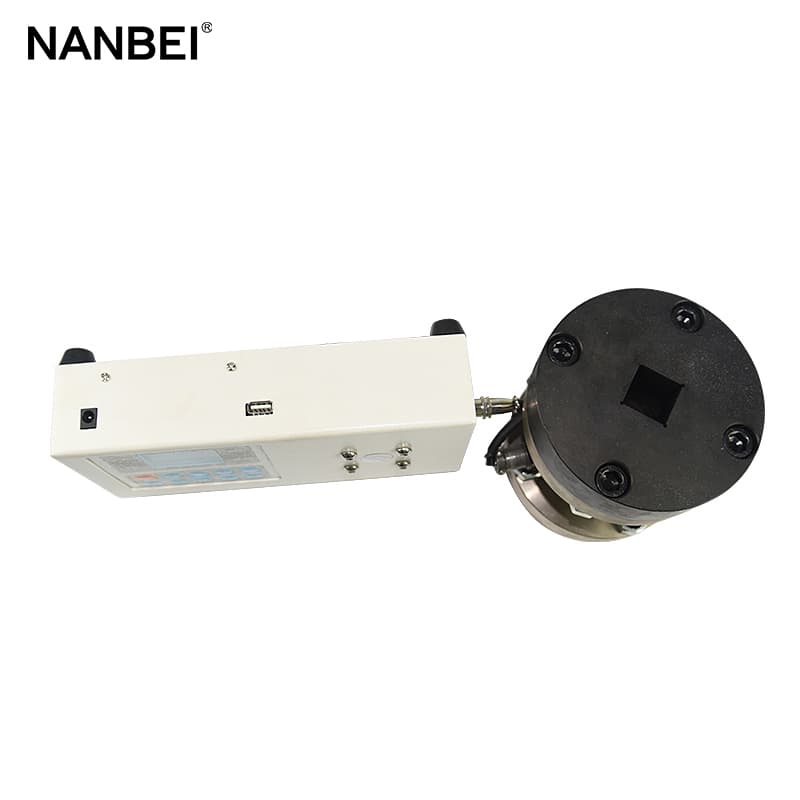

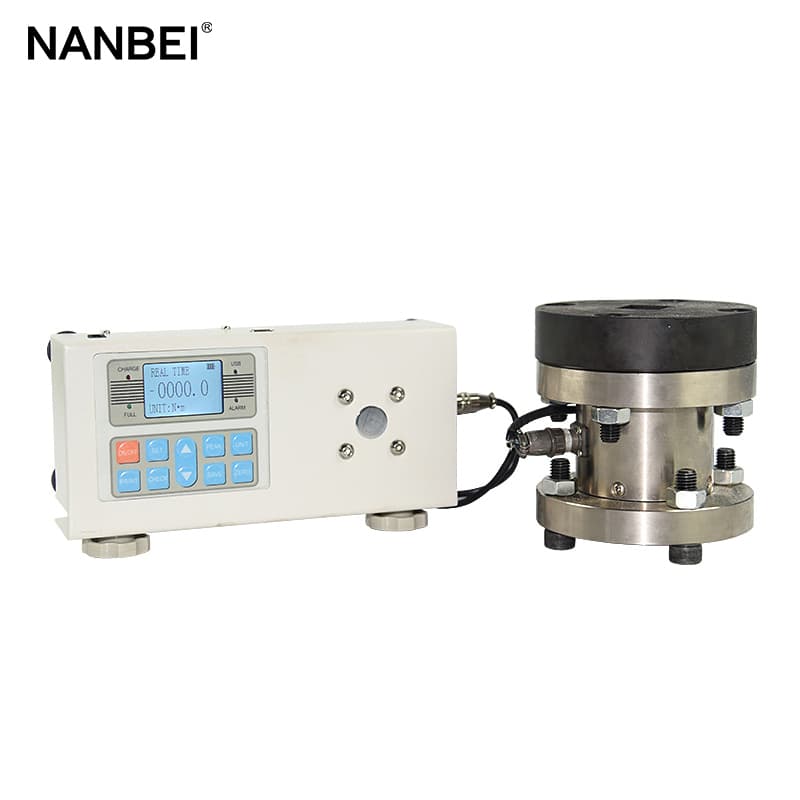

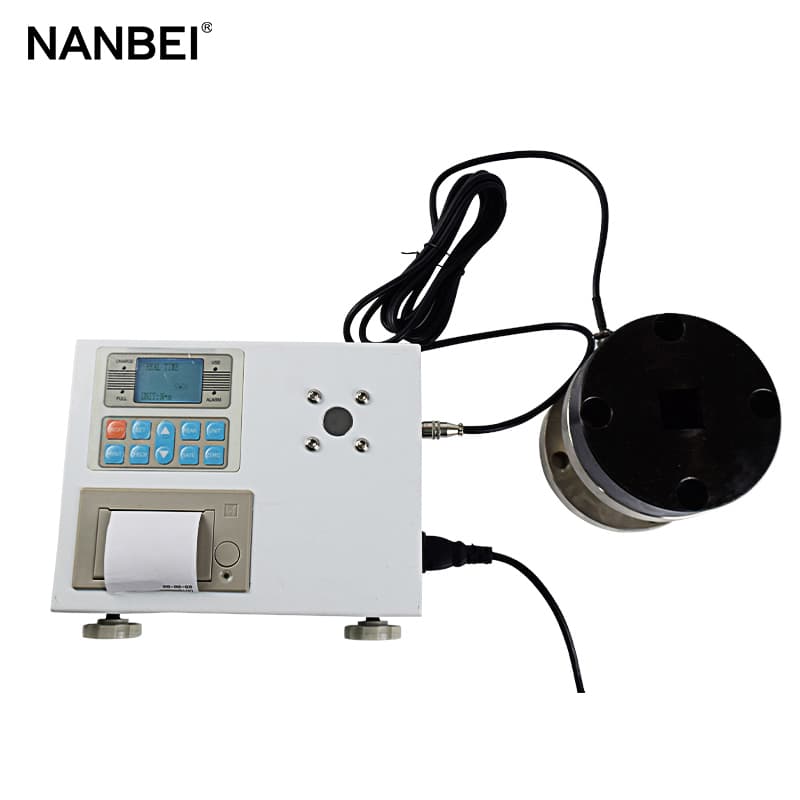

NNL-1000-5000 Digital Torque Meter
The NNL digital torque meter is specially designed for measuring all kinds of torque.
It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on.
This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench,
tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture,
the automobile light industry and the specialized scientific research and industry.
1:High accuracy, high resolution, and stability. The sampling speed can be set.
2:Fluctuate limiting value set, has the acousto-optic alarm device.
3:Lattice type LCD, the back light can be set.
4:Torque directions identify.
5:Three kind of unit: N · m, kg · cm, lb · in automatic conversion.
6:Many kinds of front values maintain.
7:Power source shows and low power prompt.
8:No-operation close automatically, can set the close time.
9:Saves and prints 100 test data, can clean out at will.
10Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data:
such as prints, statistics and so on.
Measuring range / Division value
Peak Value Sampling Frequency
8.4V 1.2VX7 Ni-MH Battery group
Continuous using time of battery
About 10 Hours
With printer：Host display part 230mm×95mm×180mm
No printer：Host display part 230mm×70mm×125mm
With printer：36KG No printer：34KG
Input：AC 220V 50HZ Output：DC 10V 300mA
