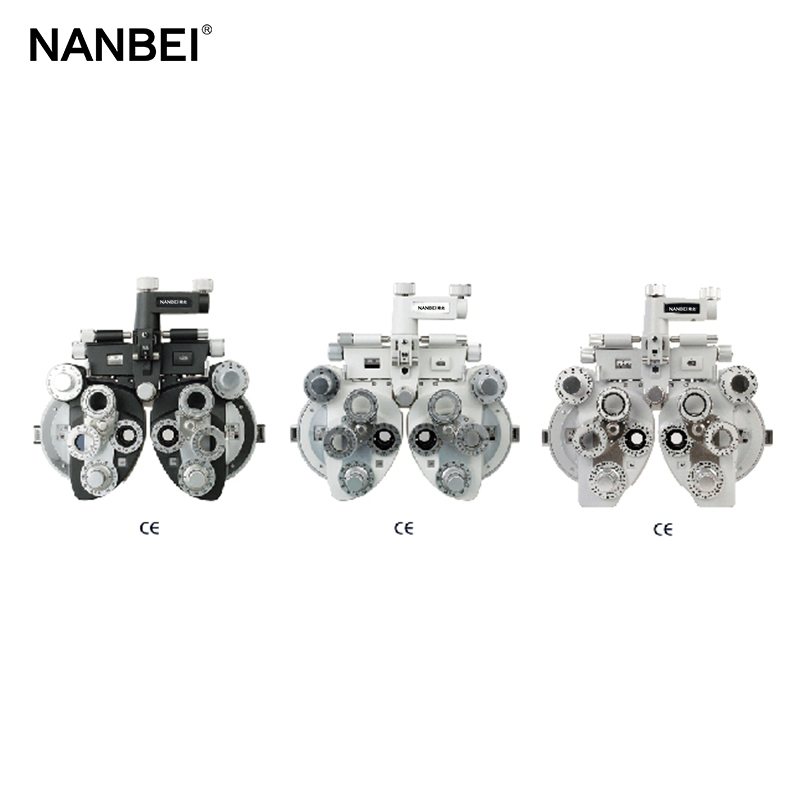

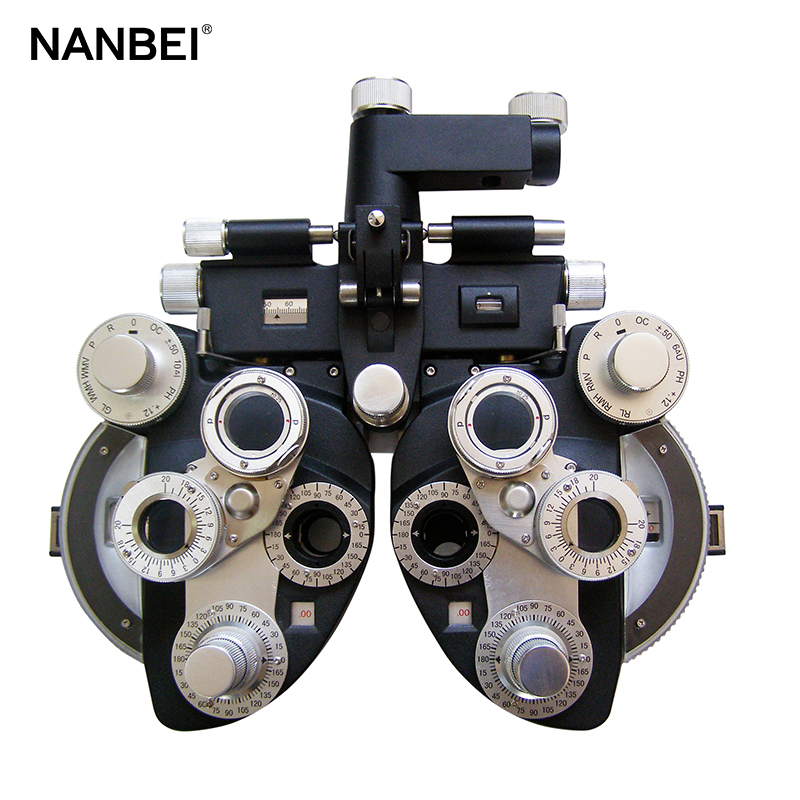

NB-Z3000 Phoropter

Adopting overall concentrated operation and large scale and improving performance.

Automatical interlock between cross -cylinder lens and lens coordinates

scanning electron microscope


● Sphere power: Range: +16.75 to -19.00D Step: 0.25D

● Cylinder power: range: 0.00D to -6.00D ( 0.00D to 8.00D with additional lens of-2.00D) Step: 0.25D

● Cylinder axis: 0 to 180°,5°steps

● Cross Cylinder: ±25 diopters

● Cross-cylinder lens: ±0.25D

● Rotary prisms: 0△ to 20△,1△ steps

● Auxiliary lens dial:

[O]-Open aperture (two positions)

[R]-Retinoscopic lens,+1.50D

[P]-Polarizing lens,(45°left eye,135°right eye)

[WMV]or[RMV]-Maddox rod,vertical

  white — left eye

  Red — right eye

[WMH]or[RMH]-Maddox rod,horizontal

  white - left eye

  Red - right eye

[GL]- Green Lens

[RL]-red Lens

[+.12]- +0.12D Sphere

[PH]- Pin hole

[10△I]or [6△U]-10△ base-in-left eye

  6△ base-up-right eye (Dissociating prisms)

  ±.50]-±0.50 fixed cross cyliner

[OC]- Occluder

● P.D.adjustment: 48-75mm,1mm steps

● Standard Accessory : One near point card with holder and rod,dust cover,face shield and case for lenses.

● Standard Accessory lens:Two-.12D and -2.00 cylinder lenses. Two plano lenses for sealing front opening

● Net Dimensions: 345×295×85(mm)

● Net weight: Approx.4.5Kg

● Package Dimensions: 380×350×155(mm)

● Gross weight: 6Kg
