Vacuum Filtration Systems

Brand:NANBEI

Model:250mL,500mL,1000mL

Application:

CONTACT NOW Chat Now

product details

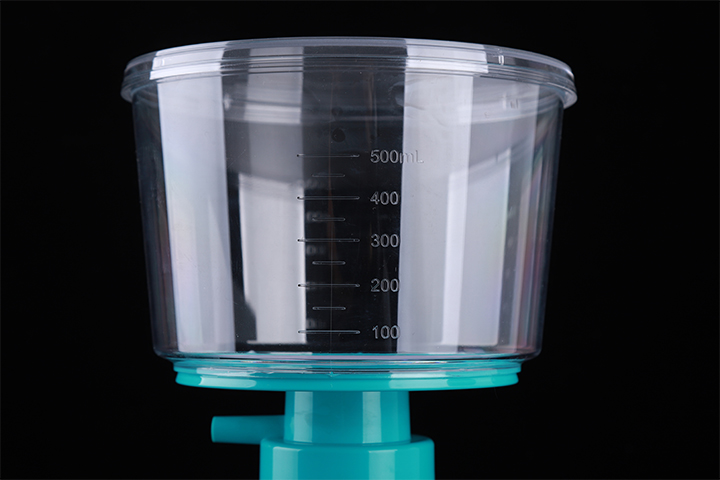

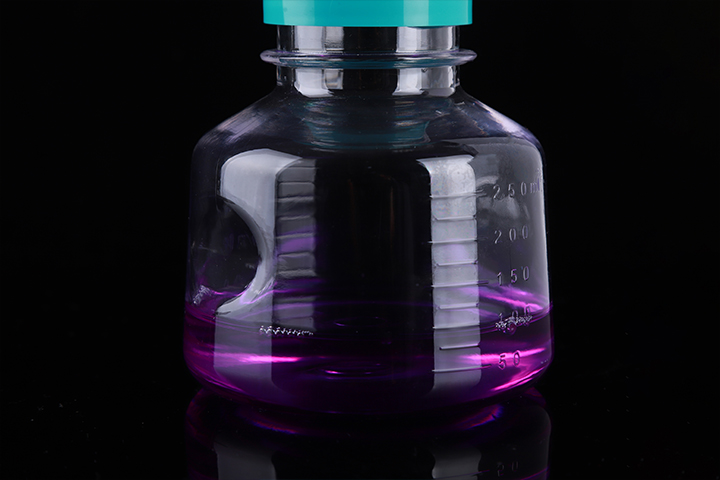

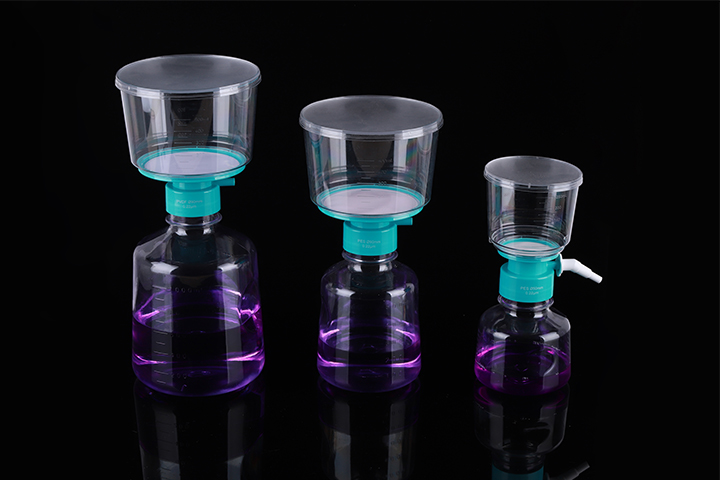

Product description:It is mainly used in tissue culture media and biological fluids for separation and purification of large volume samples. The whole set includes membrane diaphragm, a graduated, transparent polystyrene funnel connected to a receiving bottle by a connector. The disposable vacuum filter utilizes a vacuum pump to provide pressure differentials for processing large volumes of tissue culture fluids and other laboratory fluid solutions and the volume of processed samples could be up to several liters. The filtered samples can be stored directly in sterile collection bottles.

1.   High flow rates and high throughput
2.   Precise graduation on the bottle wall
3.   Various specifications：Membrane materials include: PES, PVDF、CA、MCE ; Volume: 250ml、500ml and 1000ml
4.   Low protein binding
5.   Gamma-ray sterilization
6.   Filter diameter: 250ml volume for the 50mm membrane diameter 500ml volume for the 90mm membrane diameter.

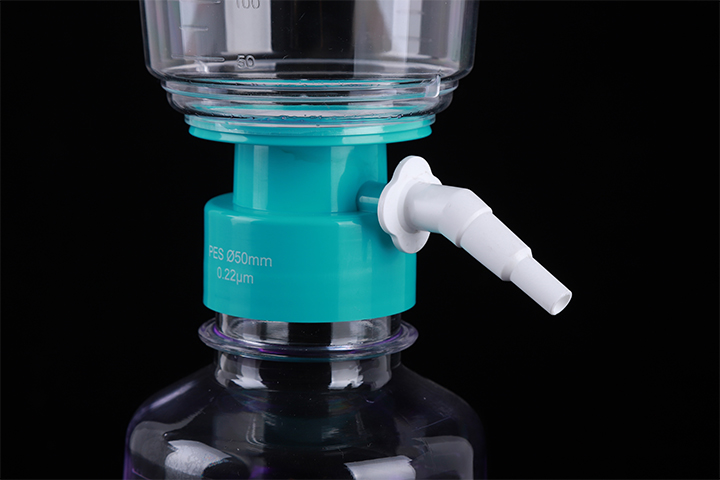

7.   The design of hose connector is adaptable to various hose diameters.
8.   Light weight and firm outer wall structure, easy to grasp

Vacuum Filtration, PVDF Memberane

Cat.No.	Volume (mL)	Pore Density (μm)	/Pack	/Case
342102	250	0.10	1	12
342101	250	0.22	1	12
342103	250	0.45	1	12
343102	500	0.10	1	12
343101	500	0.22	1	12
343103	500	0.45	1	12
344102	1000	0.10	1	12
344101	1000	0.22	1	12
344103	1000	0.45	1	12

Vacuum Filtration, MCE Memberane

Cat.No.	Volume (mL)	Pore Density (μm)	/Pack	/Case
342202	250	0.10	1	12
342201	250	0.22	1	12
342203	250	0.45	1	12
343202	500	0.10	1	12
343201	500	0.22	1	12
343203	500	0.45	1	12
344202	1000	0.10	1	12
344201	1000	0.22	1	12
344203	1000	0.45	1	12

Vacuum Filtration, PES Memberane

Cat.No.	Volume (mL)	Pore Density (μm)	/Pack	/Case
342002	250	0.10	1	12
342001	250	0.22	1	12
342003	250	0.45	1	12
343002	500	0.10	1	12
343001	500	0.22	1	12
343003	500	0.45	1	12
344002	1000	0.10	1	12
344001	1000	0.22	1	12
344003	1000	0.45	1	12

Vacuum Filtration, CA Memberane

Cat.No.	Volume (mL)	Pore Density (μm)	/Pack	/Case
342302	250	0.10	1	12
342301	250	0.22	1	12
342303	250	0.45	1	12
343302	500	0.10	1	12
343301	500	0.22	1	12
343303	500	0.45	1	12
344302	1000	0.10	1	12
344301	1000	0.22	1	12
344303	1000	0.45	1	12

Bottle Top Vacuum Filter

Cat.No.	Volume (mL)	Memberane	/Pack	/Case
342011	250	0.22 μm, PES	1	24
342111	250	0.22 μm, PVDF	1	24
343011	500	0.22 μm, PES	1	24
343111	500	0.22 μm, PVDF	1	24
344011	1000	0.22 μm, PES	1	24
344111	1000	0.22 μm, PVDF	1	24
