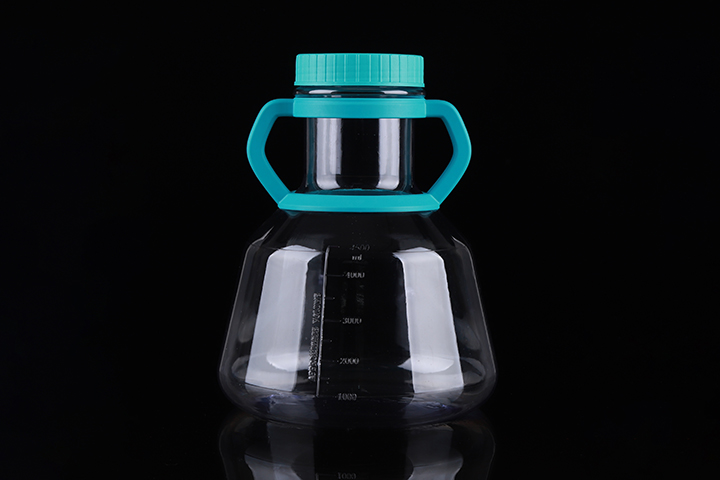

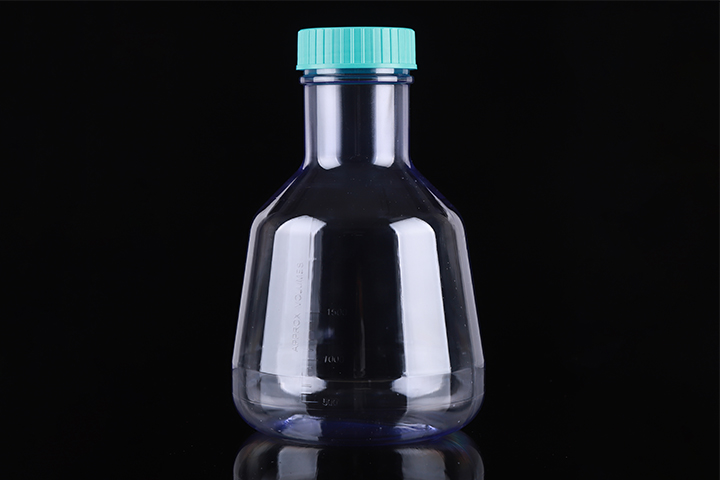

High Efficiency Erlenmeyer Flask
High Efficiency Erlenmeyer Flask

High Efficiency Erlenmeyer Flask

Brand:NANBEI

Model:2L,3L,5L

Application:

product details

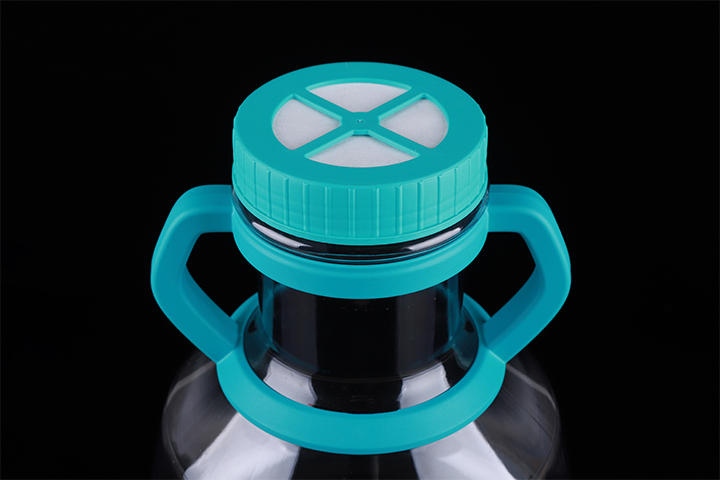

 PC Bottle & HDPE Cap, Vent caps with 0.2um hydrophobic filters for gas exchange without contamination.

Ideal for shaker culture applications.

· PC bottle : High standard of transparency and clear scale, easy to observe. Sturdy,good for transport.
· Sterilized by E-Beam
· Nonpyrogenic
· Packaged in sterile bags

Tips:
· Recommended volume :30-40% of the bottle volume;
· Rotation speed suggestion: the starting speed is 75-125RPM, you can control the rotation speed according to the situation;
· The liquid shake shaker should pay attention to the water level, the gas shake shaker should pay attention to the temperature
Transfer Cap for Shake Flask

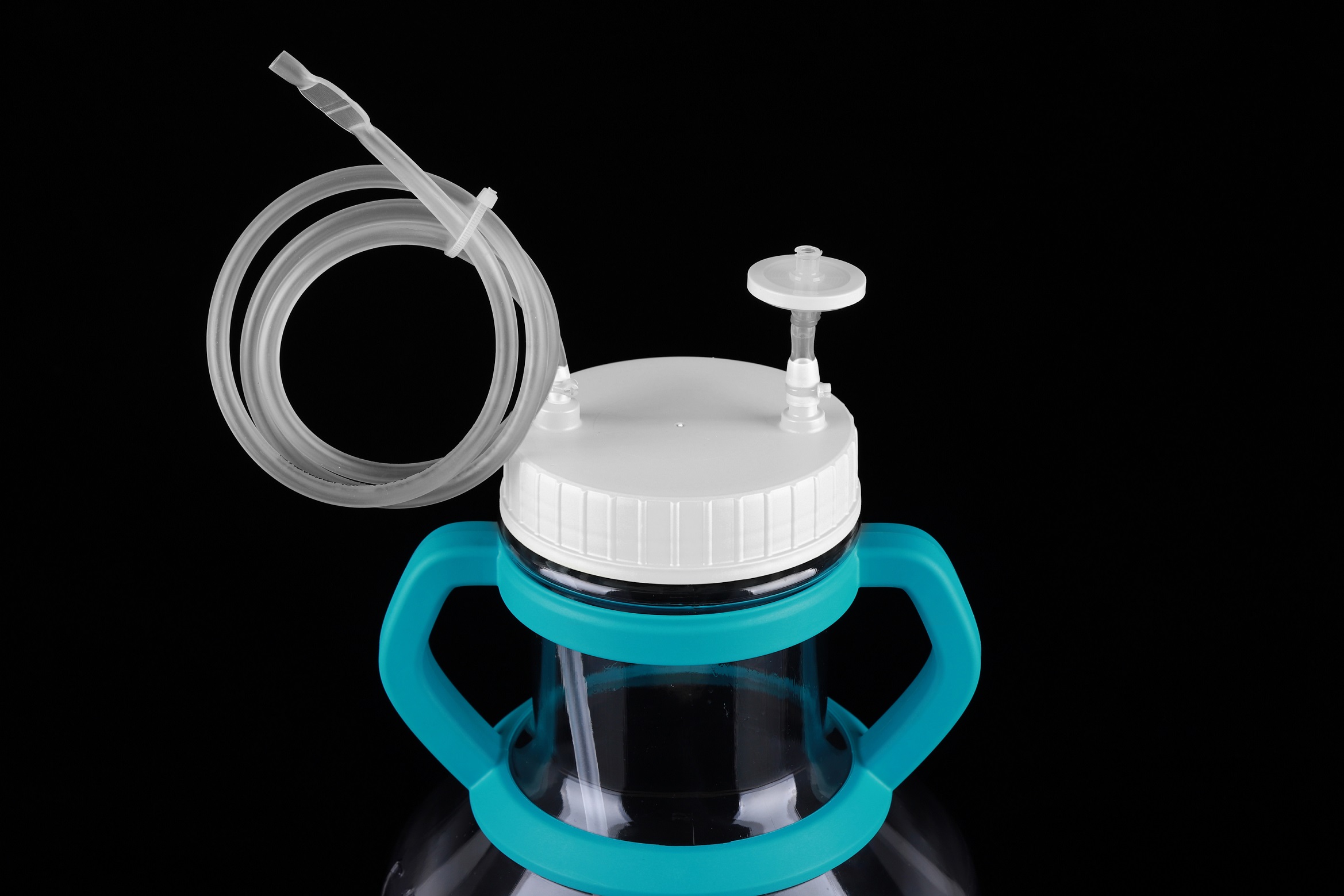

Two-Way Liquid Transfer Cap
The two-way transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet tubing with the required device. The liquid transfer is achieved by connection of a peristaltic pump between the shake flask and the device.  Upon completion of the transfer, the transfer cap can be replaced with a vent cap for culture.

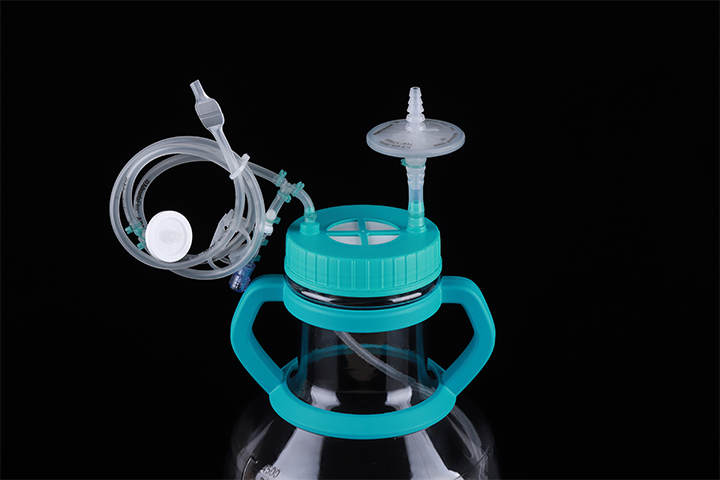

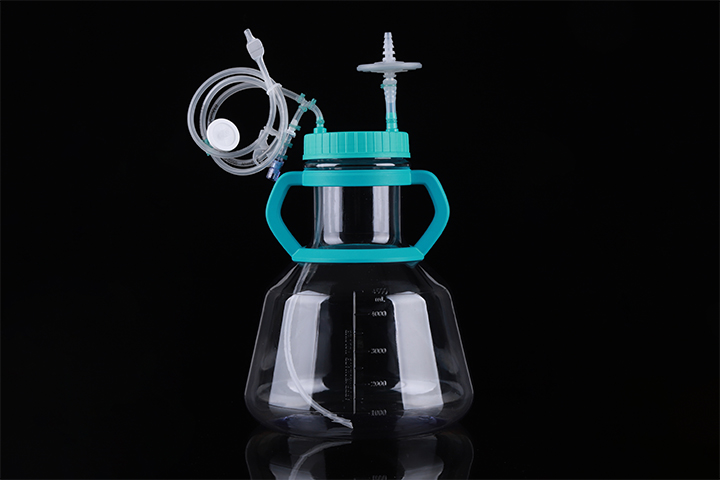

Multifunctional Liquid Transfer Cap:
Unlike the two-way liquid transfer cap, the multifunctional transfer cap can be directly placed in an incubator for culture after the liquid transfer is completed. It can reach a large air flux. The sampling part is composed of a sampling nozzle and a one-way valve, which can prevent the liquid from flowing backwards during the sampling process and ensure the aseptic sampling. The liquid inlet tubing is provided with a PTFE needle filter, which solves the issue of liquid remaining in the tubing during the feeding process.

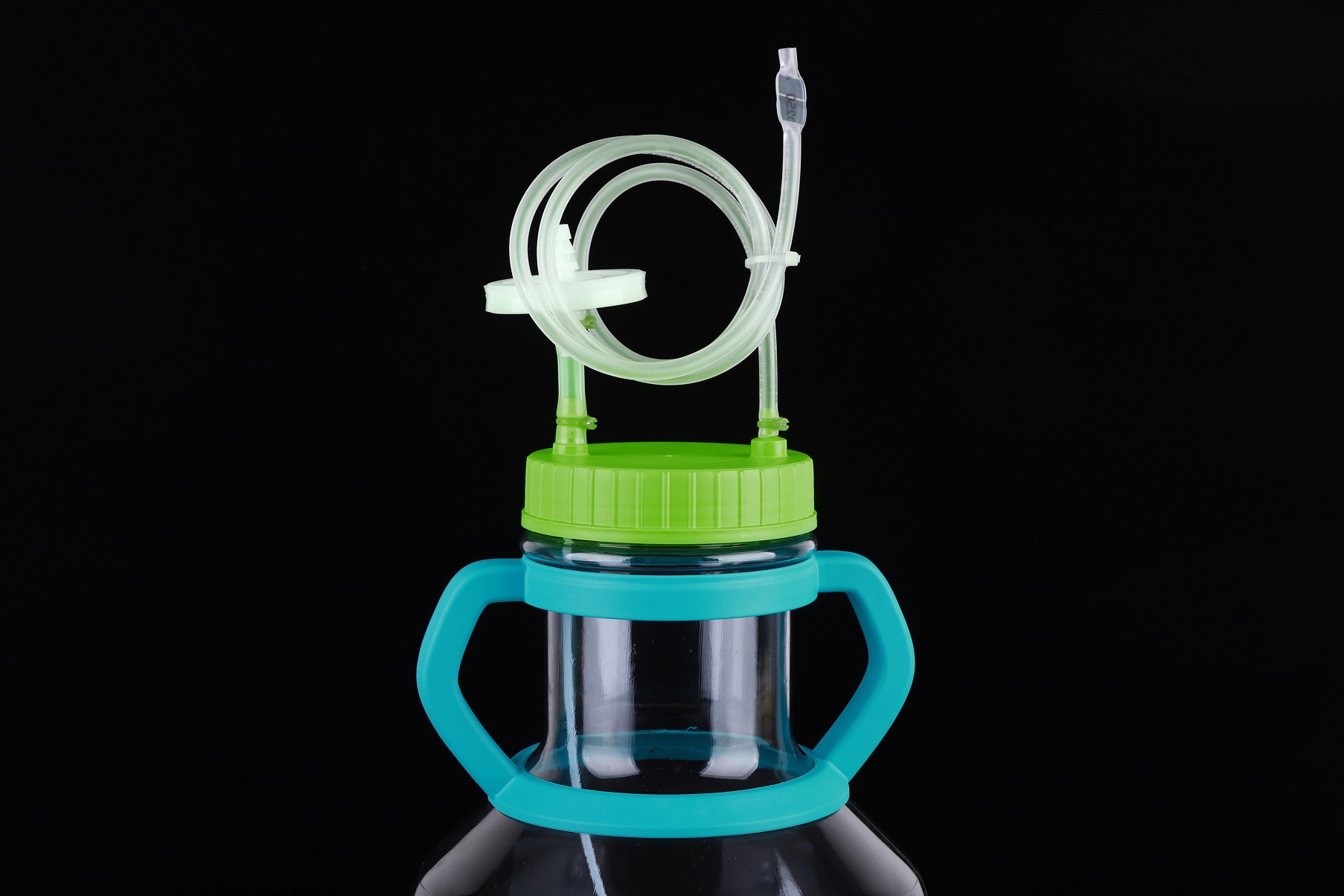

Inverted Liquid Transfer Cap:
The inverted transfer cap is used along with a 2L, 3L or 5L shake flask to connect a liquid inlet tubing with the required device. When liquid transfer is required, the liquid is transferred under gravity with the inverted shake flask.



Cat.No.
Volume
(L)
Cap Style Size(mm) /Case
Height Bottleneck Diameter Bottom Diameter
785101 2.0 Plug Seal Cap 213.5 67 162 4
785111 2.0 Vent Cap 213.5 67 162 4
786101 3.0 Plug Seal Cap 253.5 67 162 4
786111 3.0 Vent Cap 253.5 67 162 4
787001 5.0 Plug Seal Cap 285.5 90 230 4
787011 5.0 Vent Cap 285.5 90 230 4


It is applicable to liquid transfer and culture during mass proliferation of bacteria and suspension cells.

1.Closed transfer reduces the risks of contamination during liquid transfer.
2.The cap is molded and connected in an integrated manner, reducing the risks of leakage and media residues.
3.A variety of tubing diameters are available and aseptic welding of liquid inlet tubing under normal conditions is supported.
4.High-quality materials and smooth inner wall of the tubing provide an excellent transfer performance.
5.Sterility level (SAL) is maintained at 10-6.
6.Endotoxin-free, and no ingredients of animal origin.

Cat.No.

Name

Information

Pipe length

Pipe connect

/pack

/case

785931

2L Multifunctional Liquid Transfer Cap

Thermoplastics pipes, pipe diameter :⅛" ID, ¼" OD

50cm

Aseptic   welding heat-seal

1

4

786931

3L Multifunctional Liquid Transfer Cap

Thermoplastics pipes, pipe diameter:⅛" ID, ¼" OD

50cm

Aseptic   welding heat-seal

1

4

787931

5L Multifunctional Liquid Transfer Cap

Thermoplastics pipes,  pipe diameter :⅛" ID, ¼" OD

92cm

Aseptic   welding heat-seal

1

4

785921

2L Two-Way Liquid Transfer Cap

Thermoplastics pipes,  pipe diameter :⅛" ID, ¼" OD

50cm

Aseptic   welding heat-seal

1

4

786921

3L Two-Way Liquid Transfer Cap

Thermoplastics pipes,  pipe diameter :⅛" ID, ¼" OD

50cm

Aseptic   welding heat-seal

1

4

787921

5L Two-Way Liquid Transfer Cap

Thermoplastics pipes ,  pipe diameter :⅛" ID, ¼" OD

92cm

Aseptic   welding heat-seal

1

4

785941

2L Inverted Liquid Transfer Cap

Thermoplastics pipes,   pipe diameter :⅛" ID, ¼" OD

50cm

Aseptic   welding heat-seal

1

4

786941

3L Inverted Liquid Transfer Cap

Thermoplastics pipes,   pipe diameter :⅛" ID, ¼" OD

50cm

Aseptic   welding heat-seal

1

4

787941

5L Inverted Liquid Transfer Cap

Thermoplastics pipes ,  pipe diameter :⅛" ID, ¼" OD

92cm

Aseptic   welding heat-seal

1

4
