Laboratory Freeze Dryer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LGJ-30S standard type
Application:

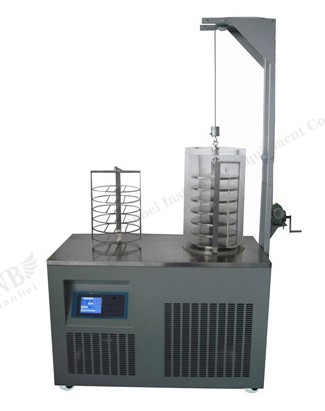

LGJ-30S Freeze Dryer ( standard type )
LGJ-30S vertical freezing dryer is suitable for experiment in laboratory and a small amount production.
This machine has heating shelves and programmable function.
Main features
CFC Free refrigeration
Big opening condenser has pre-freeze function
Low noise compressor, good efficiency,long service life
Condenser and operation panel are all stainless steel
Small volume , easy and convenient operation
Eutectic point test device is optional
Communication interface is available
Cascade refrigeration is optional for -80℃ device
LCD displays sample temperature curve, condenser temp.curve, shelf temp. Curve, vacuum degree curve and compound curves.
16 programs ca be stored, and each program can be set up 32 segments
Program can be altered during running process, final drying curves stored
Electrical system uses PID control, more precise control
RS232 interface adopted, connecting with computer to display real-time drying curves
Technical parameter
Model | LGJ-30S standard type |
Freeze drying area | 0.43 ㎡ |
Condenser capacity | 8 kg /24h |
Condenser temperature | -55℃ (-80 ℃ optional ) |
Vacuum degree | < 10 Pa |
Material tray | Ф280mm , 7 layers |
Bulk capacity | 4.3L, 10mm thickness |
Vial capacity Φ12mm | 3500 pcs |
Vial capacity Φ16mm | 1980 pcs |
Vial capacity Φ22mm | 960 pcs |
Cooling | Air，draughty ambient temperature≤25℃ |
Voltage | 220V, 50Hz |
Power | 2200W |
Dimension | 1230×630×2090 mm |
Host weight | 193 kg |
Remark: This product is for civilian use only
