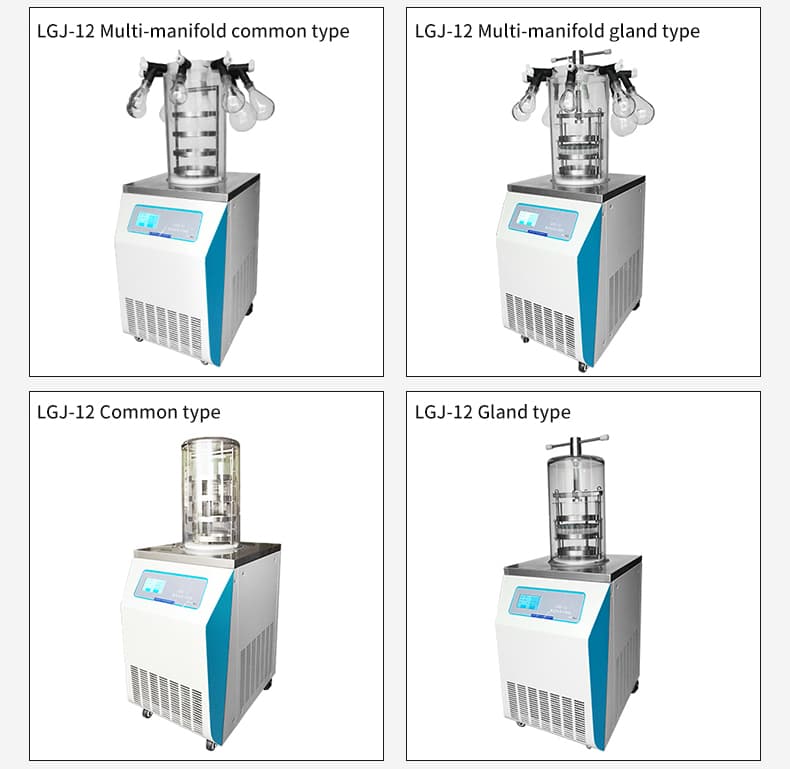

LGJ-12 Top Press Type Freeze Dryer
LGJ-12 Top Press Type Freeze Dryer

LGJ-12 Top Press Type Freeze Dryer

Brand:NANBEI

Model:LGJ-12 top press type freeze dryer

Application:

product details

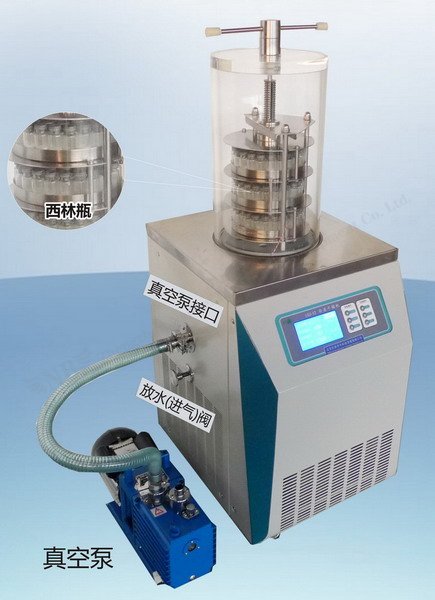

LGJ-12 top press type freeze dryer

Application:

LGJ-12 top press freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.


Main Characteristics:

1. Match the green environmental protection of international standard

2. Liquid crystal display, Chinese interface, display drying curve

3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function

4. Imported compressor, high capability of water-capture, low noise

5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying

6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright

7. Transparent bell-cap drying room is safe and visual

8. Stainless steel sample shelf, the space of common sample tray can be adjusted

9. Small volume, convenient operation

pilot freeze dryer

Technical parameter:

Model
LGJ-12
Specification
Top-press type
Freeze-drying area
0.08㎡
Cold trap temperature
<-55℃
Vacuum degree
<10 Pa
Water-capture capacity
3-4 Kg/24h
Material tray
¢180mm*3
Power
1070 W
Dimension
560*460*(710+430)mm
Material
0.8L
12mm exiling bottle
560
16mm exiling bottle
285
22mm exiling bottle
165

Notice: The temperature of cold trap may reach -80℃ according to the user’s needs

1 (1).jpg

3 (1).jpg

Remark: This product is for civilian use only
