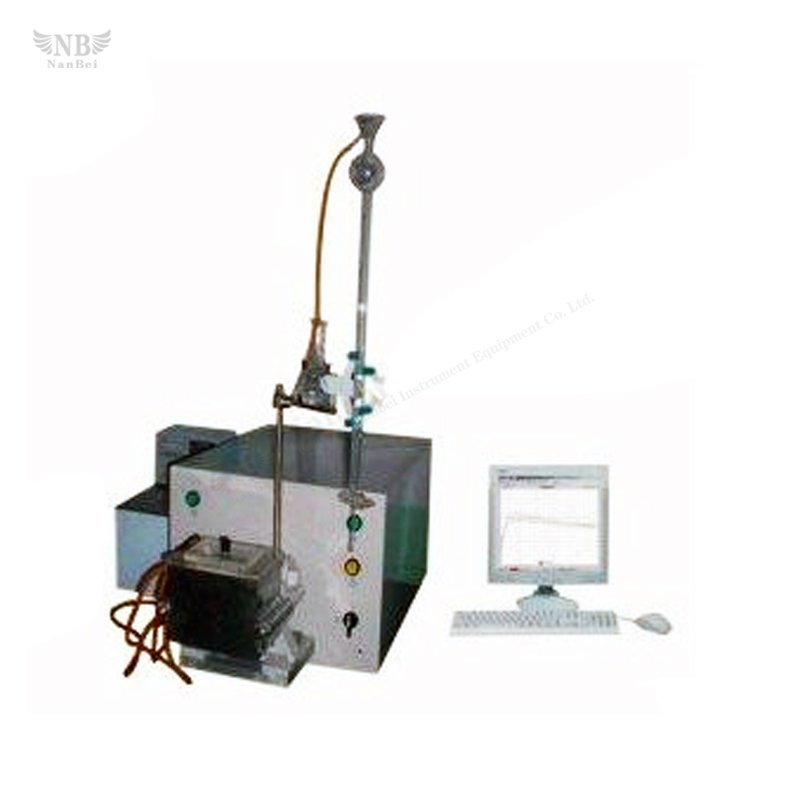

Name: Flour Analyzer/Flour Quality Analyzer/Flour Tester/Flour Quality Tester
Flour Analyzer/Flour Quality Analyzer/Flour Tester/Flour Quality Tester characteristics:
Flour-rubbing bowl can be changed at will: 300g and 50g flour-rubbing bowl optional exchange, program automatic identification to bowl type and automatic adjust to corresponding program, without the operator choice.
Overload protection function: alarm and shutdown when the mixing torque is too large, protect instrument and people.
One-button automatic water system, instead of hand-press rubber ball, control water adding to the weeping pipe, energy-saving and efficient.
Simultaneously display up to 10 flour quality charts, which facilitates contrasting their differences.
Results saved in Access database, the consult is convenient.
Multiple security measurements: double-button to start; open the cover, machine will stop automatically.
Intelligent programs respond to instrument movement, start drawing automatically.
Flour Analyzer/Flour Quality Analyzer/Flour Tester/Flour Quality Tester technical parameters:
Motor power: 200W
Power: AC220V, 50Hz or AC380V, 50Hz
Computer connector mode: USB
Torque testing mode: electronic torque sensor
Weight: 75kg (with 300g bowl)/ 70kg (with 50g bowl)
Accuracy: no more than 0.5% measuring range
Main douching cutter rotating speed: 63r/min±2r/m
Sub-douching cutter rotating speed: 94.5r/min±3r/m
Coordinate scale ranges: horizontal axis: 0-20min, vertical axis: 0—1000FU
Horizontal axis speed: 10mm/min
Sample weight 300g (300g bowl) or 50g(50g bowl) Shape size: 95(L)x53(W)x62(H)cm
