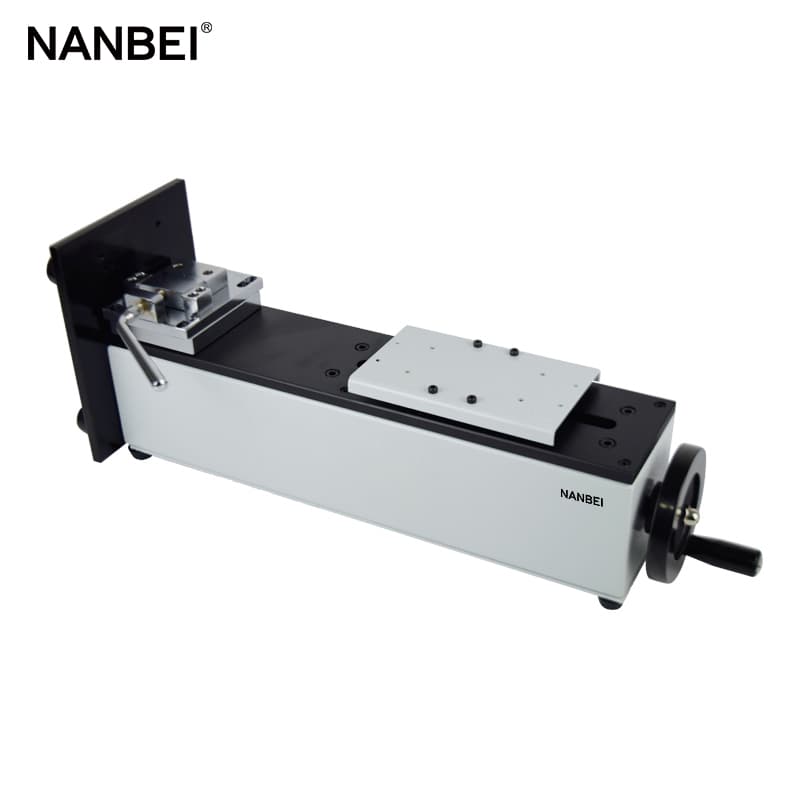

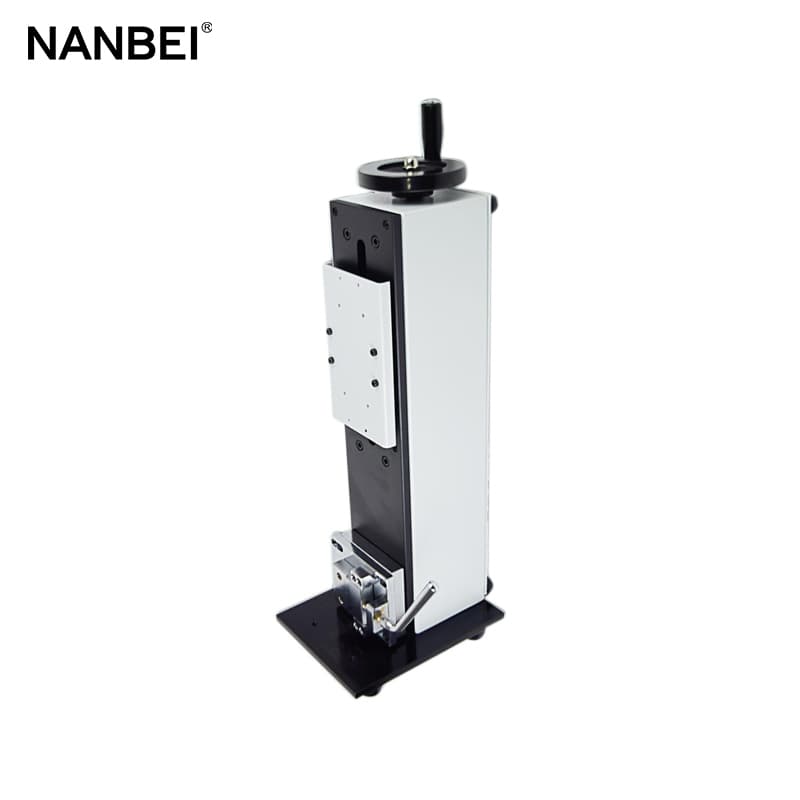

ASL Manual Vertical (Horizontal) Dual Test Stand



ASL Manual Vertical (horizontal) dual test stand is specially equipped for NK and HF series of mechanical force gauge, which can be combined to a test machine for different purposes and carry out accurate plug force, pressure force and other destructive tests. While displaying the force values, it can be equipped with the gauge to display its displacement and carry out comparison test on different parts under the same displacement.

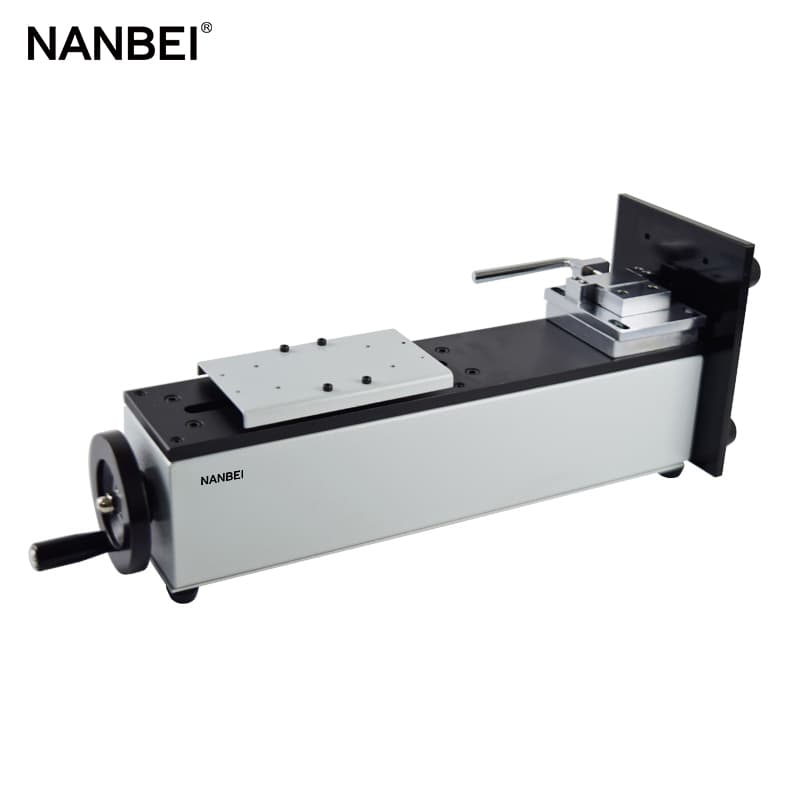

65f14a97caa7a.jpg  65f14a9231b62.jpg

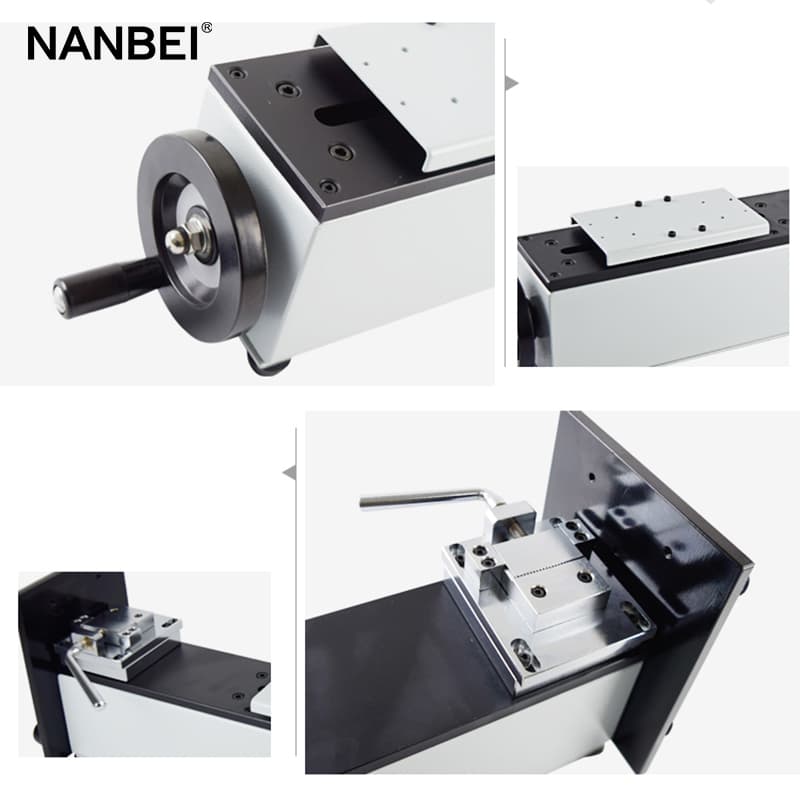

1:For vertical-horizontal dual use

2:Manual operation, easy and convenient

3:This machine should be installed on the table to allow the rack more stable

4:Equipped with digital gauge, can collect travel data at any time(AST-S)

ASL_03 不动.jpg

Specifications and Parameters

1:Maximum load:500N

2:Effective stroke:140 mm

3:Length × width × height:200×160×540 mm

4:Net weight:15 kg

vertical test stand

Other product we can supply as follows:

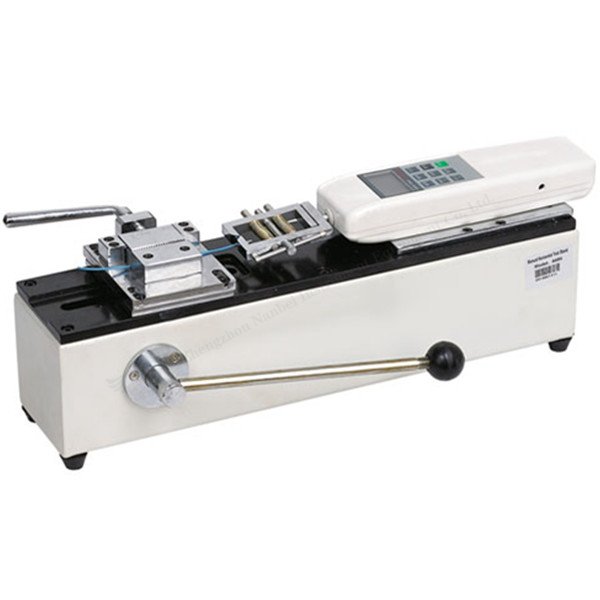

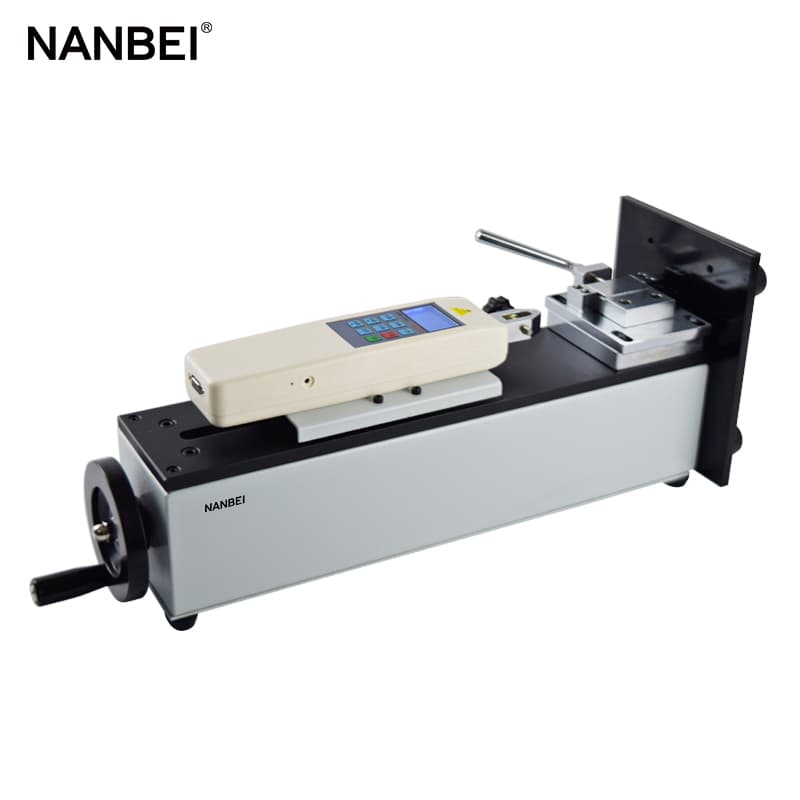

ADL Terminal Pulling
Force Tester
ABQ Button Tester
ALX Screw Test Sand
test stand for force gauge
horizontaltest stand
push pull test stand

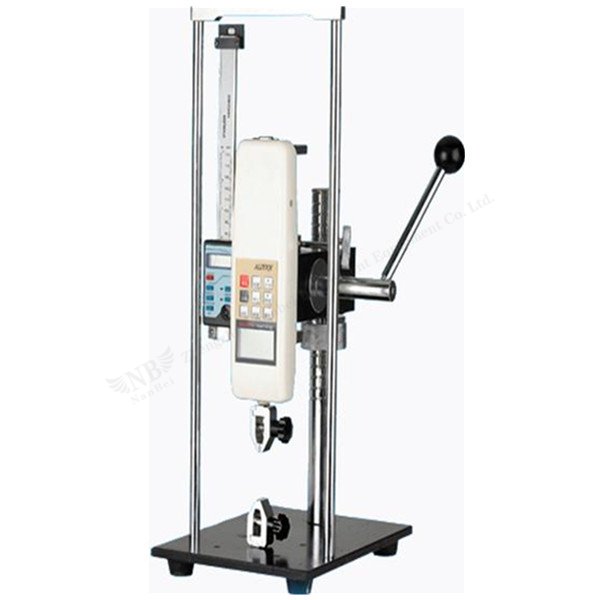

AST-S Manual Push/
