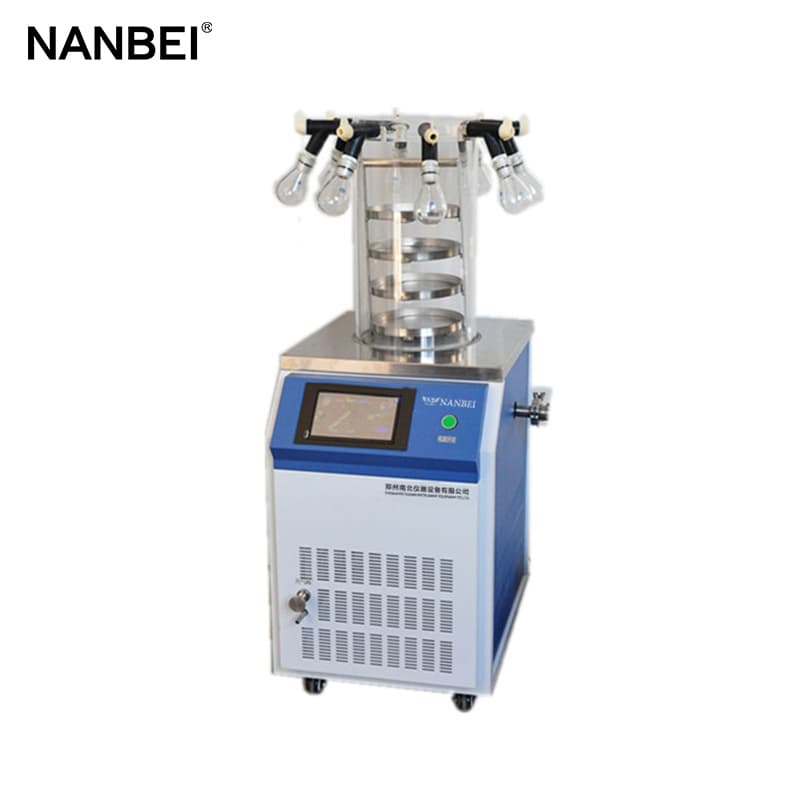

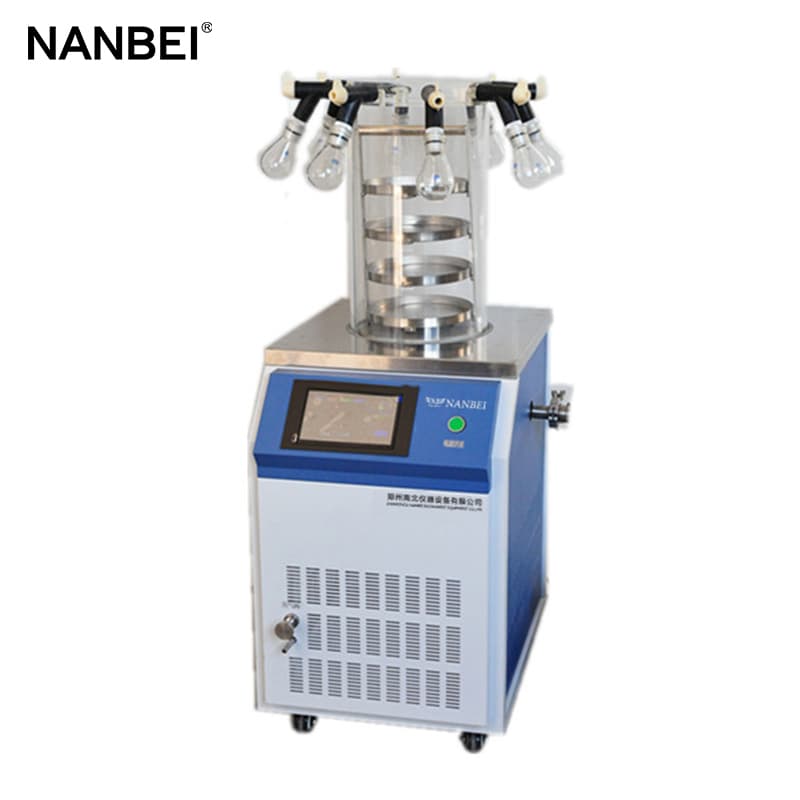

NB-10N,NB-12N,NB-18N Lyophilizer Manufacturers Vacuum Function Freeze Dryer
NB-10N,NB-12N,NB-18N Lyophilizer Manufacturers Vacuum Function Freeze Dryer

NB-10N,NB-12N,NB-18N Lyophilizer Manufacturers Vacuum Function Freeze Dryer

Brand:NANBEI

Model:NB-10N,NB-12N,NB-18N

Application:

product details

NB-10N,NB-12N,NB-18N Lyophilizer Manufacturers Vacuum Function Freeze Dryer

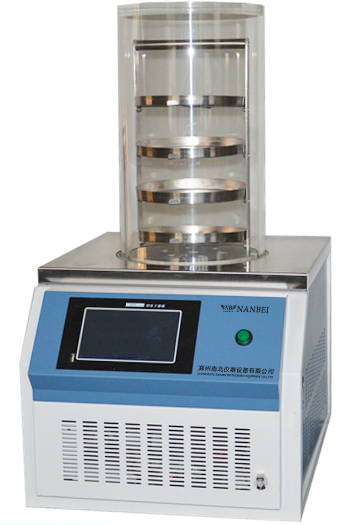

NB-10N Freeze Dryer
Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate

● Nitrogen inflation valve within

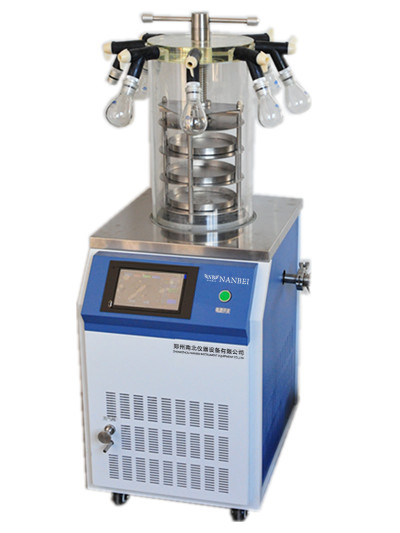

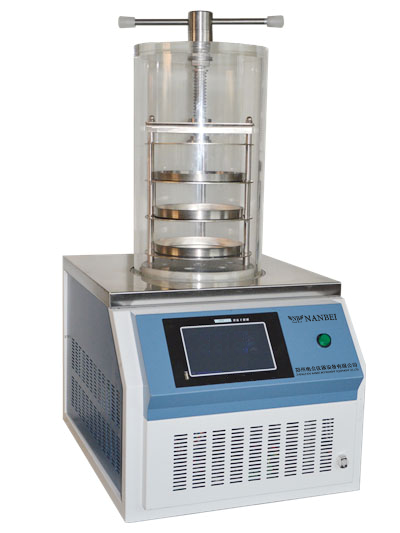

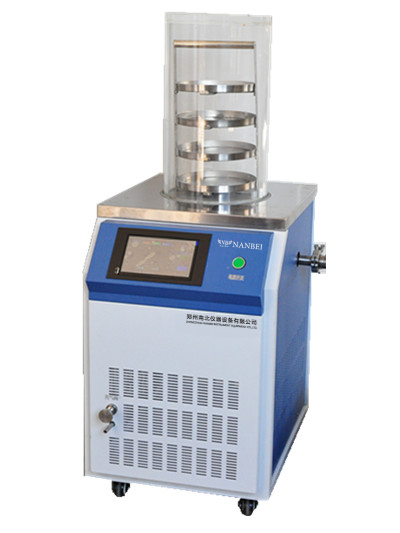

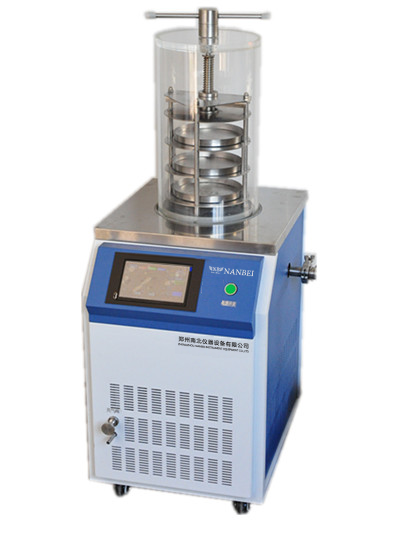

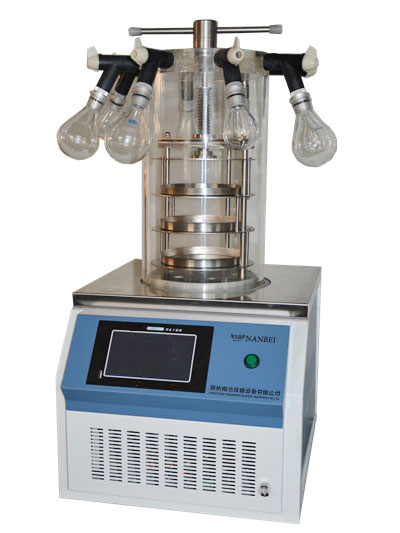

NB-10NOrdinary  Top-Press Ordinary Multi-ManifoldsTop-Press Multi-Manifolds
No-load Temperature <-56℃ <-56℃ <-56℃ <-56℃
Freeze Area 0.12 m2 0.08 m2 0.12 m2 0.08 m2
Plate Load Capacity 1.5 L 1 L 1.5 L 1 L
Ability to Capture Water 3Kg 3 Kg 3 Kg 3 Kg
Vacuum Degree <10Pa <10Pa <10Pa <10Pa
Machine Dimension W450×D580×H(380+450) mm W450×D580×H(380+450) mm W450×D580×H(380+450) mm W450×D580×H(380+450) mm
Sample Tray Size 4×Φ200mm Ø 3×180 mm 4×Φ200mm Ø 3×180 mm
Power 950W 950W 950W 950W
Power Supply 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz
interlayer spacing 70 mm 70 mm 70 mm 70 mm
Cold trap size Ø215×160 mm Ø215×160 mm Ø215×160 mm Ø215×160 mm
The number of Schering bottles Ø22: 260 Ø22: 165 Ø22: 260 Ø22: 165
Ø16: 480 Ø16: 285 Ø16: 480 Ø16: 285
Ø12: 920 Ø12: 560 Ø12: 920 Ø12: 560





    tabletop freeze dryer lyophilizer  food freeze dryer machine  lab freeze dryer  vacuum freeze dryer

NB-12N Freeze Dryer

Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within

NB-12NOrdinary  Top-Press Ordinary Multi-ManifoldsTop-Press Multi-Manifolds
No-load Temperature <-56℃ <-56℃ <-56℃ <-56℃
Freeze Area 0.12 m2 0.08 m2 0.12 m2 0.08 m2
Plate Load Capacity 1.5 L 1 L 1.5 L 1 L
Ability to Capture Water 4Kg 4Kg 4Kg 4Kg
Vacuum Degree <10Pa <10Pa <10Pa <10Pa
Machine Dimension W600×D460×H(720+450) mm W600×D460×H(720+450) mm W600×D460×H(720+450) mm W600×D460×H(720+450) mm
Sample Tray Size 4×Φ200mm Ø 3×180 mm 4×Φ200mm Ø 3×180 mm
Power 950W 950W 950W 950W
Power Supply 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz
interlayer spacing 70 mm 70 mm 70 mm 70 mm
Cold trap size Ø215×216 mm Ø215×216 mm Ø215×216 mm Ø215×216 mm
The number of Schering bottles Ø22: 260 Ø22: 165 Ø22: 260 Ø22: 165
Ø16: 480 Ø16: 285 Ø16: 480 Ø16: 285
Ø12: 920 Ø12: 560 Ø12: 920 Ø12: 560





lab scale freeze dryerbench top freeze dryermedium home freeze dryerfood vacuum freeze dryer

NB-18N Freeze Dryer
Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within

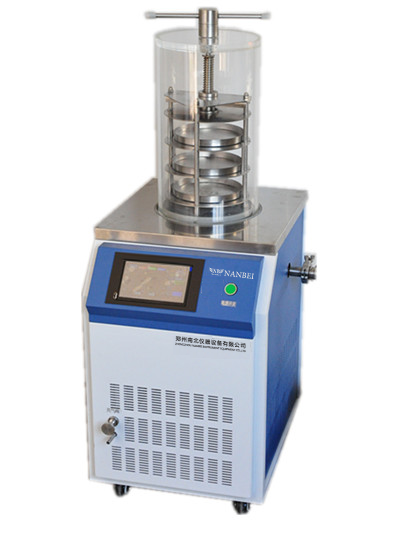

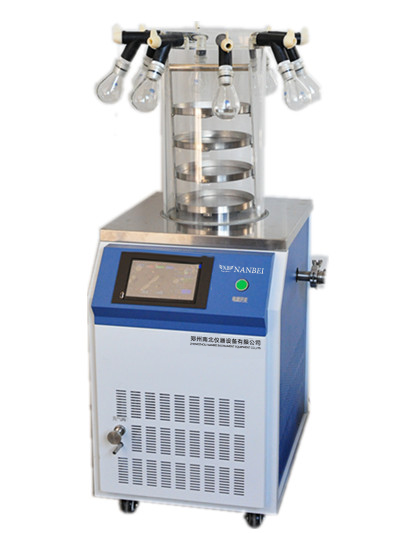

NB-18NOrdinary  Top-Press Ordinary Multi-ManifoldsTop-Press Multi-Manifolds
No-load Temperature <-56℃ <-56℃ <-56℃ <-56℃
Freeze Area 0.18 m2 0.09 m2 0.18 m2 0.09 m2
Plate Load Capacity 2 L 1 L 2 L 1 L
Ability to Capture Water 6Kg 6Kg 6Kg 6Kg
Vacuum Degree <10Pa <10Pa <10Pa <10Pa
Machine Dimension W670×D530×H(800+450) mm W670×D530×H(800+450) mm W670×D530×H(800+450) mm W670×D530×H(800+450) mm
Sample Tray Size 4×Φ240mm Ø 3×200 mm 4×Φ240mm Ø 3×200 mm
Power 1300W 1300W 1300W 1300W
Power Supply 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz 110V/60Hz or 220V/50Hz
interlayer spacing 70 mm 70 mm 70 mm 70 mm
Cold trap size Ø270×410 mm Ø270×410 mm Ø270×410 mm Ø270×410 mm
The number of Schering bottles Ø22: 360 Ø22: 270 Ø22: 360 Ø22: 270
Ø16: 740 Ø16: 560 Ø16: 740 Ø16: 560
Ø12: 1320 Ø12: 990 Ø12: 1320 Ø12: 990





vertical freeze dryerlyophizer freeze dryerfreeze dryer 4lfreeze dryer manufacturer

Remark: This product is for civilian use only
