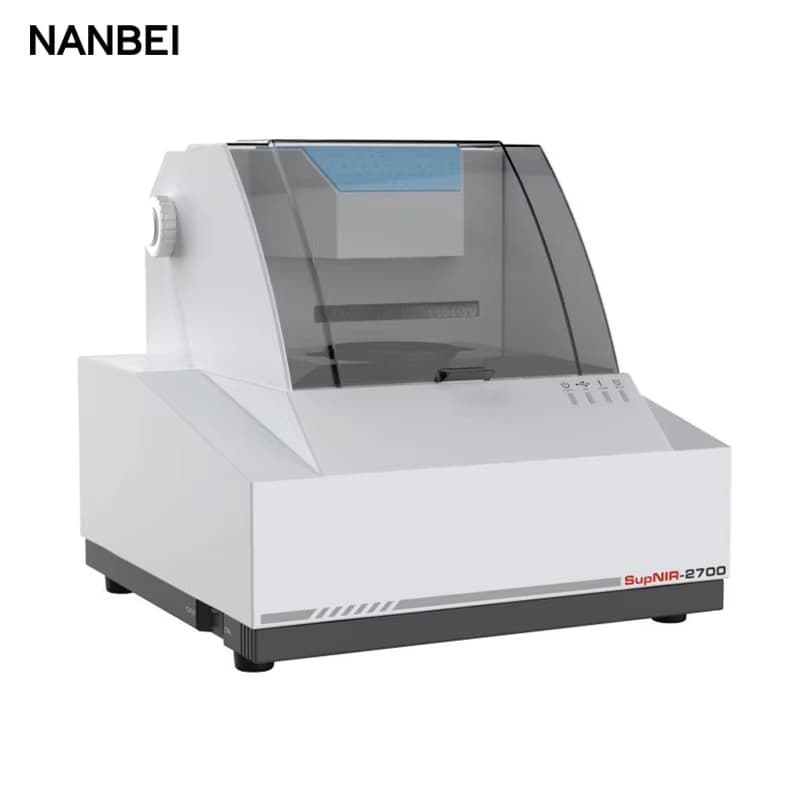

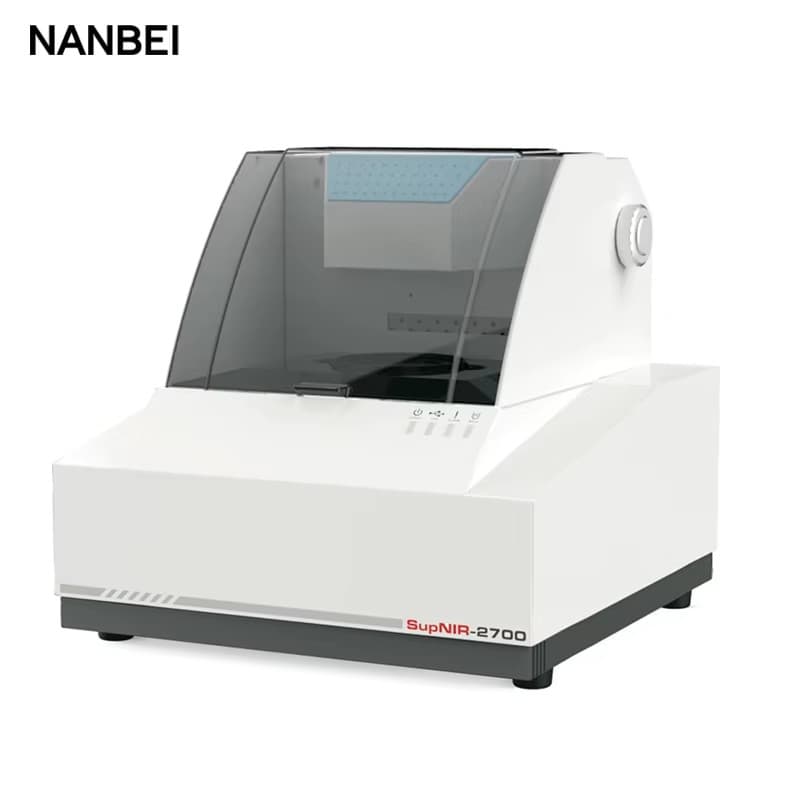

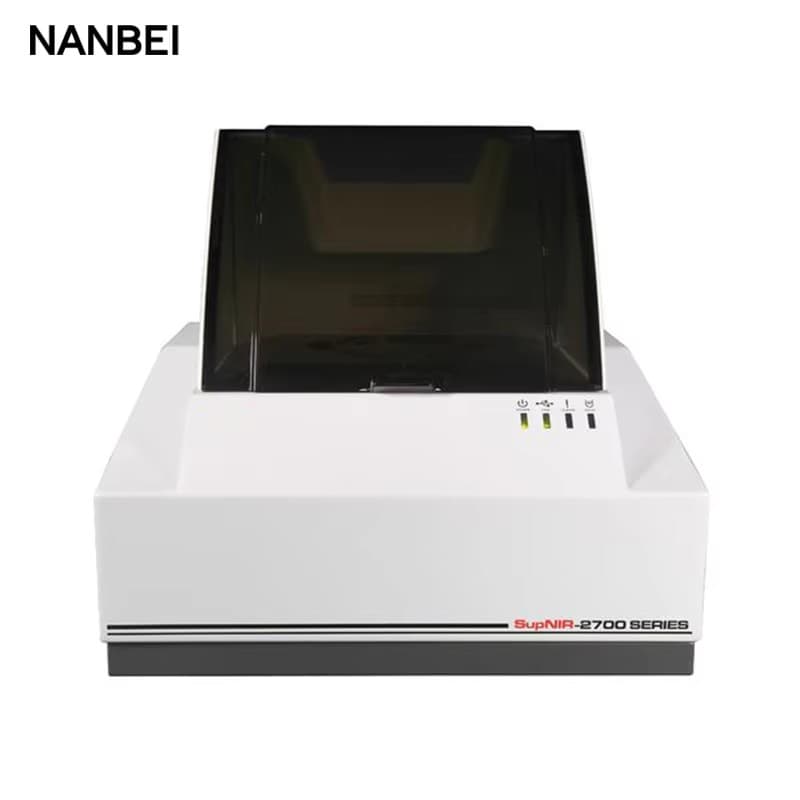

Benchtop NIR Analyzer 2720 Lab Near Infrared Spectrophotometer

SupNIR2720 Near-infrared Spectrometers

Introduction

SupNIR2720 belongs to the 2700 series concentrating near-infrared analyzers. It adopts an optical design that combines a holographic digital grating and a high-sensitivity indium gallium arsenide detector (TEC cooling and constant temperature) to analyze samples based on diffuse reflection.

The wavelength range covers 1000- 1800nm. The non-destructive and rapid detection of some physical and chemical components in solid particles, flakes and powder samples can be achieved through an external computer and RIMP software.

The whole system is easy to operate, just put the sample tray on the sample table, click to measure, and the instrument will automatically complete the measurement and analysis.

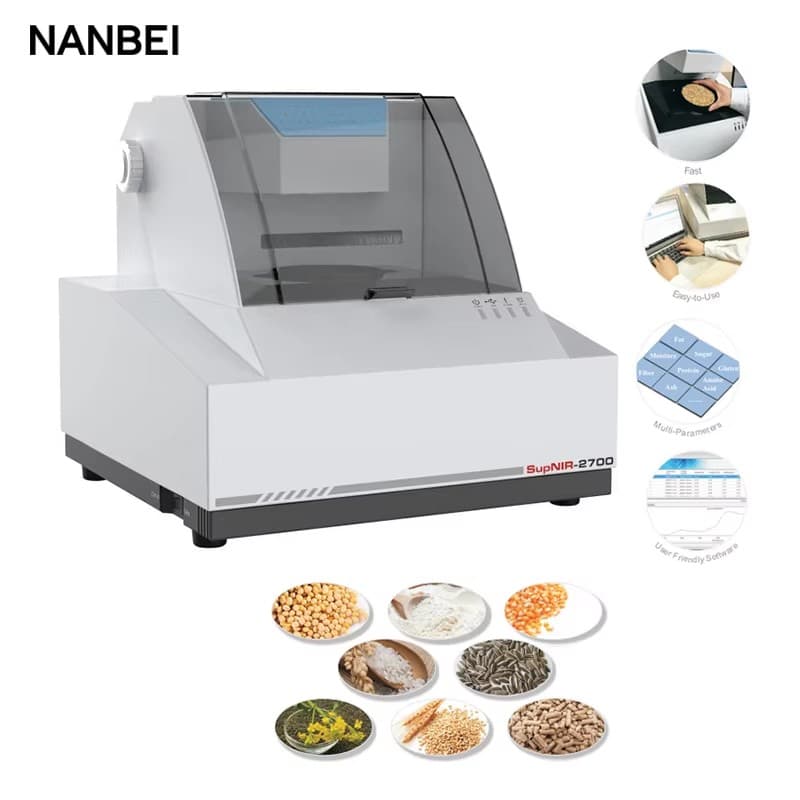

It has a wide range of applications in feed production, grain and oil processing, grain acquisition, breeding research and other fields.Daily operation software: RIMP software, full English operation interface, user-friendly interface, simple operation and professional software integrating instrument operation, modeling and data processing, the software supports the mainstream chemometrics technology in the industry including Quantitative analysis of PLS partial least squares regression analysis, ANN neural network method, and SIMCA method for qualitative analysis, cluster analysis and other algorithms. The functions of measurement data storage, viewing, exchange, statistics and report output are realized through the database.

Networked operation, through intuitive graphical operation and user guidance interface, users can easily perform spectral processing, modeling operations, data management and other functions.

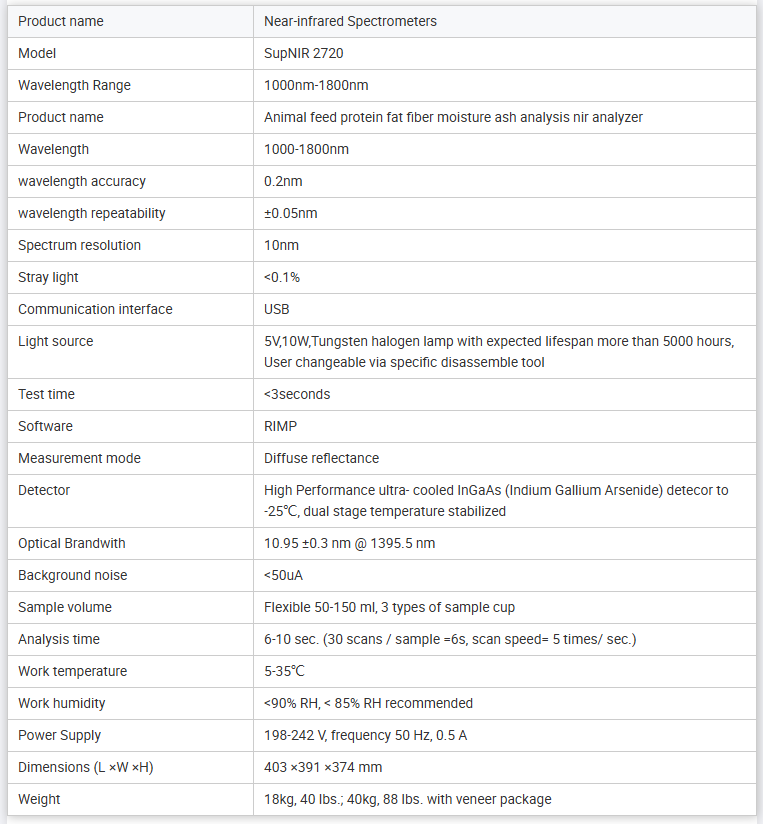

Parameters

More Images
