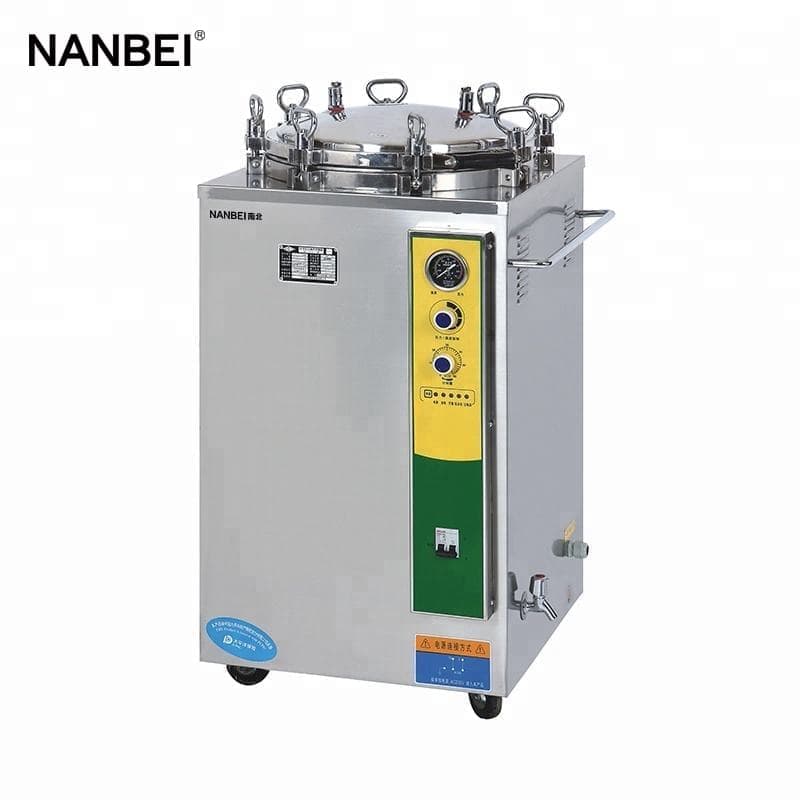

LS-150LJ 150L Vertical Steam Sterilizer
LS-150LJ 150L Vertical Steam Sterilizer

LS-150LJ 150L Vertical Steam Sterilizer

Brand:NANBEI

Model:LS-150LJ

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

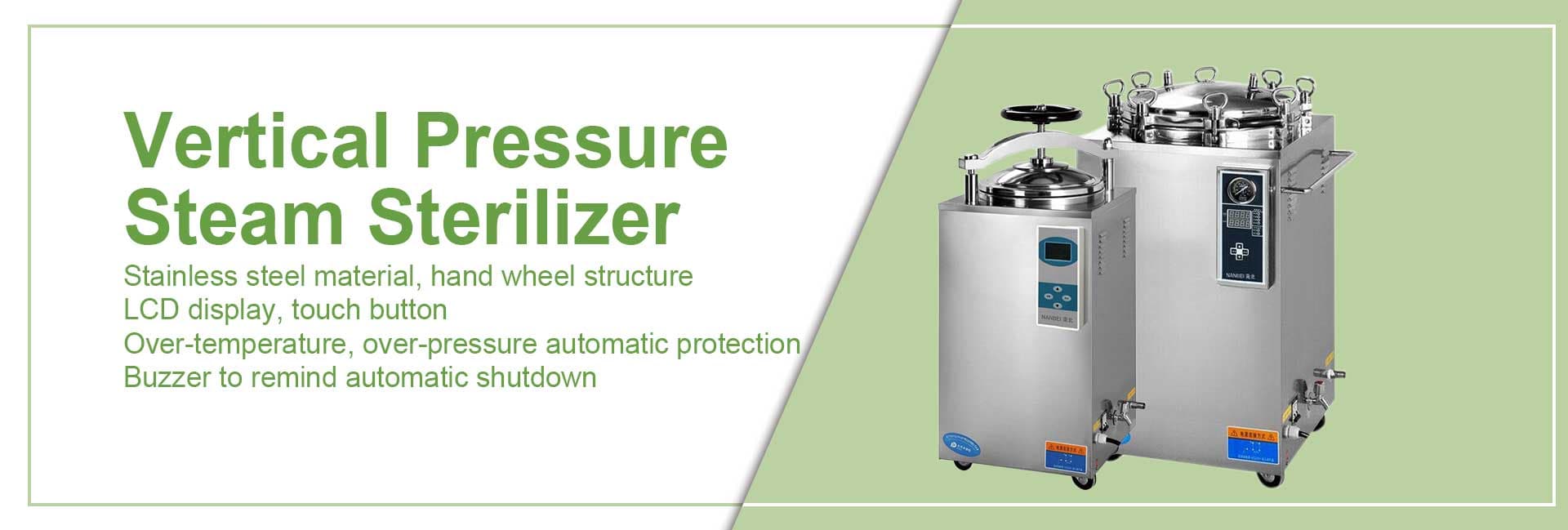

Vertical pressure steam sterilizer

Characteristics:

1.Fully stainless steel structure

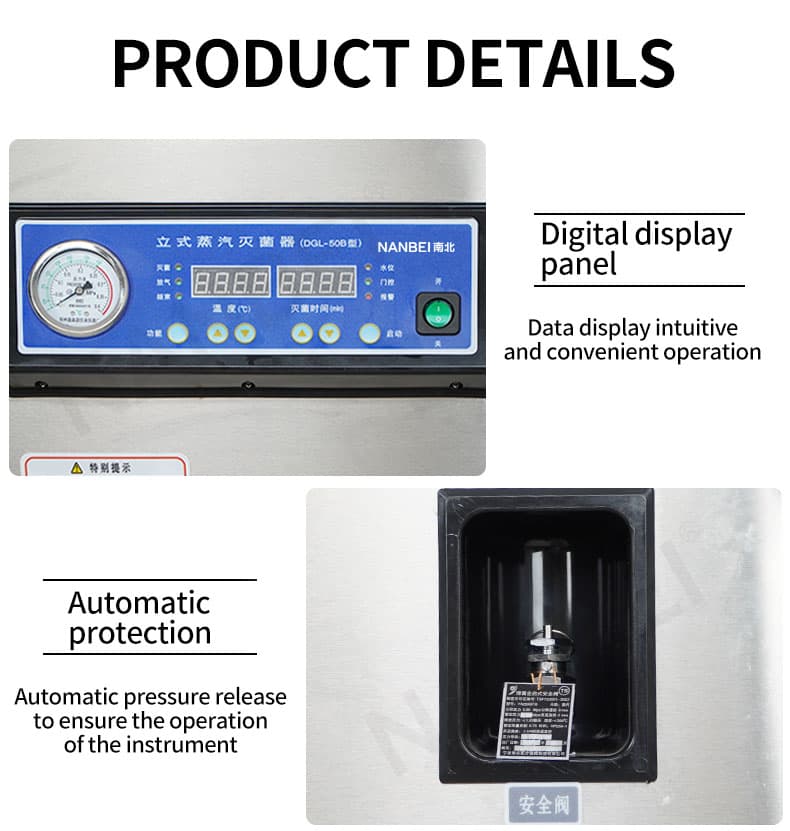

2.Indicator light indicates working state

3.Over temperature&over pressure auto-protection

4.Double scale indication pressure gauge

5.Safe protection of water lacking

6.Automatically shut off with beep reminding after sterilization

7.Easy to operate,safe and reliable

8.With two stainless steel sterilizing baskets


Technical Data:

Model
Technical data
LS-35LJ
LS-50LJ
LS-75LJ
Chamber volume
35L(φ318×450) mm
50L( φ340×550) mm
75L(φ400×600) mm
working pressure
0.22MPa
Working temperature
134℃
Max working pressure
0.23 Mpa
Heat average
≤±1℃
Timer scope
0~60min
Temperature scope
105~134℃
Power
2.5KW/AC220V.50Hz
3KW /AC220V.50Hz
4.5KW /AC220V.50Hz
Overall dimension
480×460×850(mm)
520×520×980(mm)
560×560×980(mm)
Transport dimension
570×550×970(mm)
590×590×1110(mm)
650×630×1150(mm)
G.W/N.W
56Kg/ 42Kg
68Kg/ 50Kg
90Kg/70Kg

Model
Technical data
LS-150LJ
LS-120LJ
LS-100LJ
Chamber volume
150L( φ510×740) mm
120L(φ480×660) mm
100L(φ440×650) mm
working pressure
0.22MPa
Working temperature
134℃
Max working pressure
0.23 Mpa
Heat average
≤±1℃
Timer scope
0~60min
Temperature scope
105~134℃
Power
6KW /AC220V.50Hz
4.5KW /AC220V.50Hz
Overall dimension
670×690×1130(mm)
600×640×1140(mm)
590×590×1080(mm)
Transport dimension
760×760×1270(mm)
730×730×1270(mm)
680×650×1220(mm)
G.W/N.W
135Kg/ 110Kg
125Kg/100Kg
105Kg/85Kg
