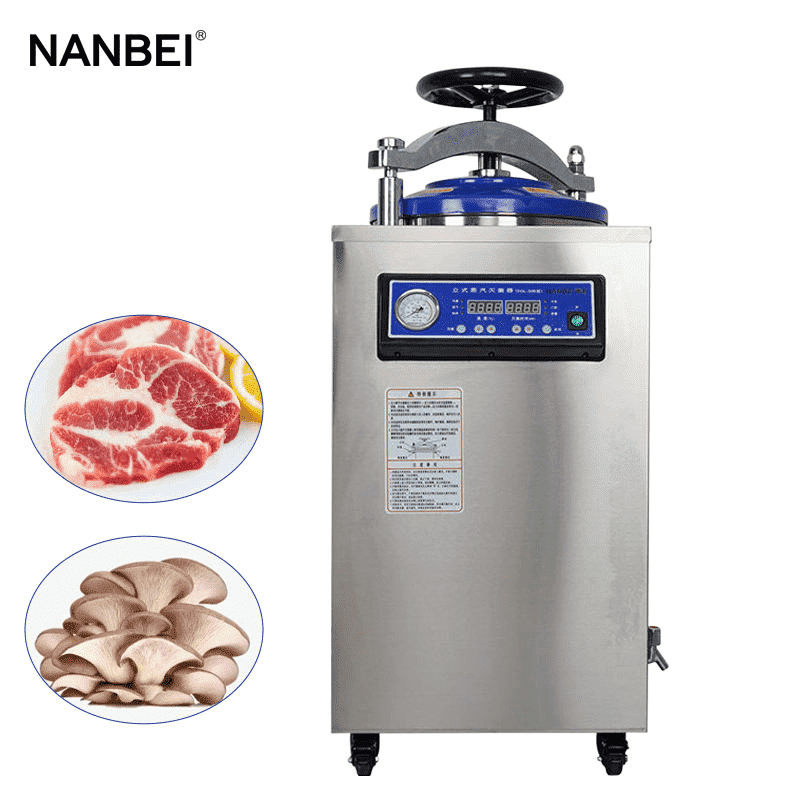

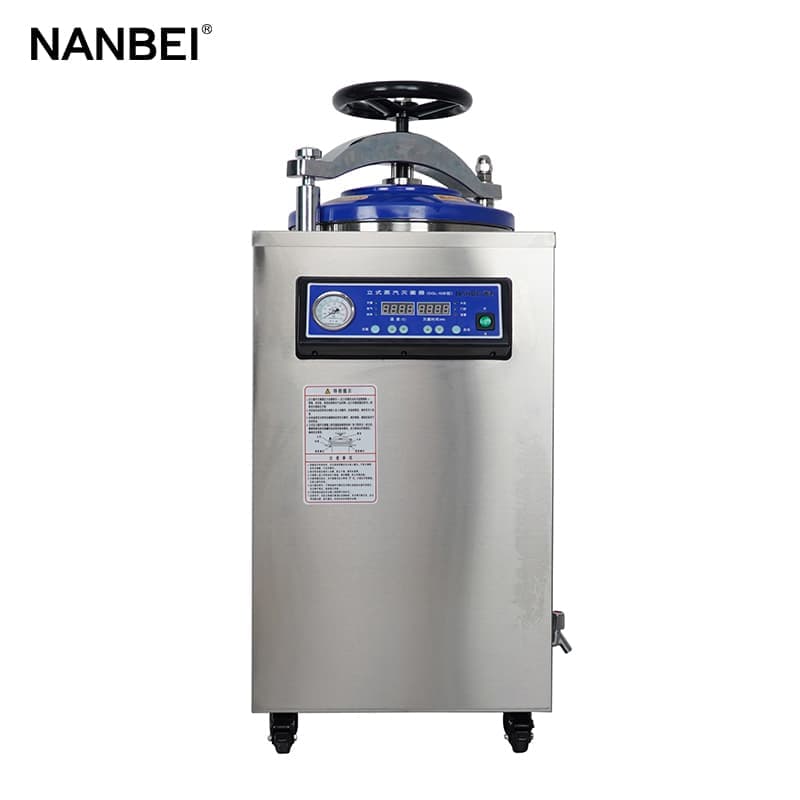

LS-100HD 100L Hand Round Automatic Vertical Pressure Steam Sterilizer
LS-100HD 100L Hand Round Automatic Vertical Pressure Steam Sterilizer

LS-100HD 100L Hand Round Automatic Vertical Pressure Steam Sterilizer

Brand:NANBEI

Model:LS-100HD

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

Digital display automatic vertical pressure steam sterilizer


Characteristics:

l .Fully stainless steel structure

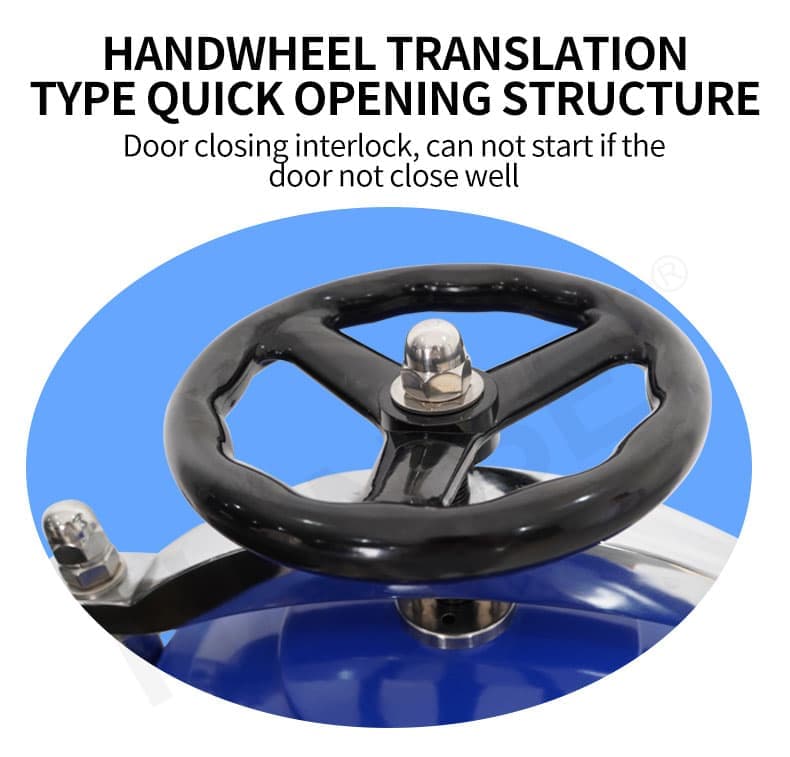

2.Hand wheel type of quick-open door structure

3.Door safety lock system

4.Digital display of working status,touch of key

5.Auto discharge the cool air,and steam discharging auto matically after sterilization

6.Over temperature&over pressure auto-protection

7.Safe protection of water lacking

8.Self-inflating type seal

9.Automatically shut off with beep reminding after sterilization

10.Used for sterilization of medical instruments, medical cotton products.

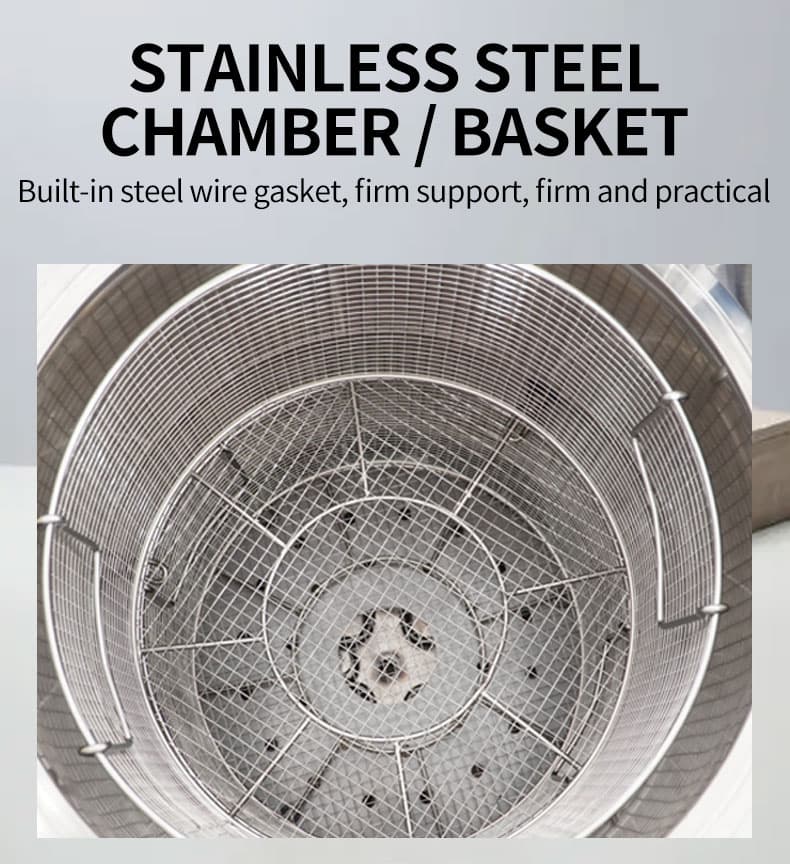

11.Fully stainless steel  SUS304/AISI 304 -3mm

12.24 months warranty

13.Possible to install drying system according request


Technical Data:

Model
Technical data
LS-35HD
(Automatic)
LS-50HD
(Automatic)
LS-75HD
(Automatic)
LS-100HD
(Automatic)
Chamber volume
35L
(φ318×450)mm
50L
(φ340×550) mm
75L
(φ400×600) mm
100L
(φ440×650) mm
 working pressure
0.22MPa
0.14 MPa
Working temperature
134℃
126℃
Max working pressure
0.23 Mpa
0.165 Mpa
Heat average
≤±1℃
Timer
0~99min  or 0~99hour59min
Adjustment of temperature
105~134℃
 105~126℃
Power
2.5Kw/AC220V.50Hz
3Kw/AC220V.50Hz
4.5Kw/AC220V.50Hz
Overall dimension
450×450×1010(mm)
510×470×1130(mm)
560×560×1120(mm)
540×560×1250(mm)
Transport dimension
570×550×1150(mm)
590×590×1280(mm)
650×630×1280(mm)
680×630×1370(mm)
G.W/N.W
72Kg/56Kg
88Kg/ 68Kg
100Kg/ 80Kg
110Kg/ 85Kg
