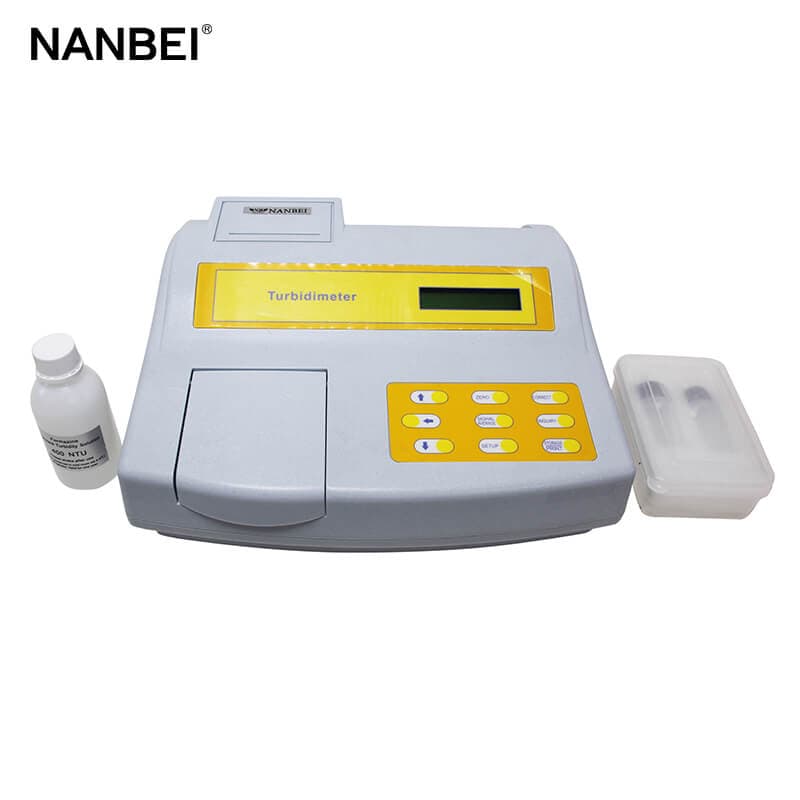

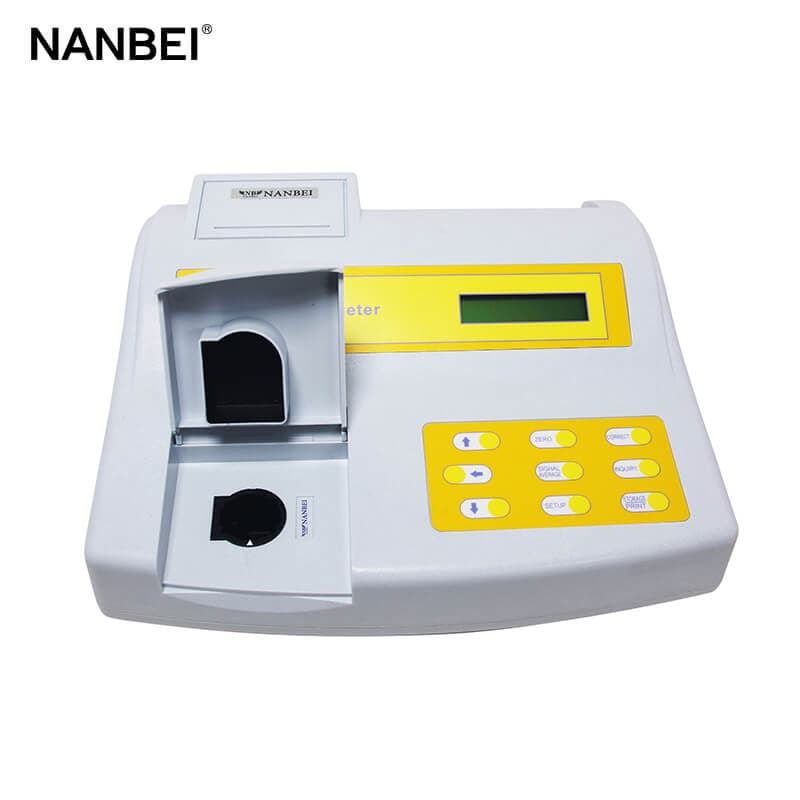

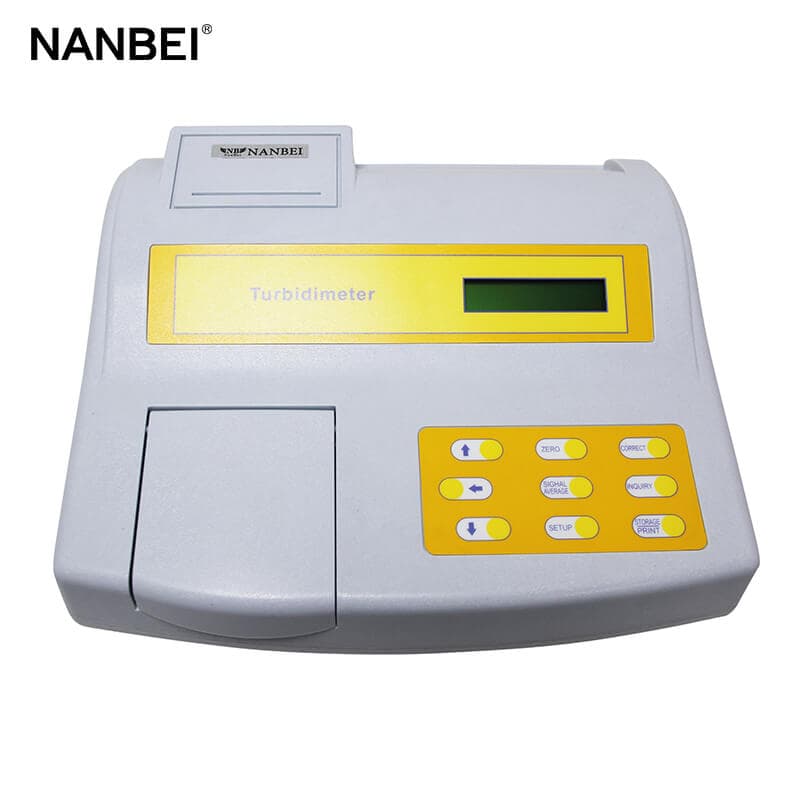

WGZ-3A/3AP Turbidity Meter with Printer
WGZ-3A/3AP Turbidity Meter with Printer

WGZ-3A/3AP Turbidity Meter with Printer

Brand:NANBEI

Model:WGZ-3A/3AP

Application:

product details

Summary  of  functions

WGZ Series scattered light turbidity meter is used for measuring the scattering degree of the lights generated by the insoluble grain matters suspended in water or transparent liquids, with capability to characterize the content of these suspended grain matters

It can be broadly applied in the measurement of turbidity in power plants, waterworks, treatment stations of domestic sewage, beverage factories, environmental protection departments, industrial water, wine and pharmacy industries, epidemic prevention divisions, hospitals, and etc.

Product  characteristics

▶Microcomputer, touch keyboard, backlight LCD, standard parallel RS232 data communication interface

▶Custom-made high strength long service life lamp-house, provided with data storage and inquiry function, can meet GLP requirements

▶Data nonlinear processing and data smoothing function, quick and automatic multi-points calibration, self-diagnostic information prompt, selectable span ¨C automatic or manual switch

▶Set average measuring mode with shortcut to obtain correct data within quickest time, applicable particularly to measure extreme-low turbidity and can be used to measure unstable water sample

▶Precise light route system, reliable positioning structure, effective tone compensation, direct turbidity reading

Specifications

Model

WGZ-200A

WGZ-200AP



WGZ-2

WGZ-2P



WGZ-2A

WGZ-2AP



WGZ-100

WGZ-100P



WGZ-3

WGZ-3P



WGZ-3A

WGZ-3AP



Minimum Principle

90º scattered light

Minimum readout NTU

0.01

0.001

0.01

0.001

0.01

0.001

Measuring range NTU

0-20 /0-200

0-10 /0-100

0-500



0-50/0-500



0-10 /0-100



0-10  0-100  0-500  0-1000

Basic error F.S

±6%(±2%F.S)

Repeatability

≤0.5%

Zero draft NTU

±0.5%F.S

Characteristics

Microcomputer configuration, with average measurement mode, on time display, data storage and query functions, range switch, automatic zero, 1-5 automatic calibration, equipped with RS232 communication interface,  “P” means there is printer inside the host.
