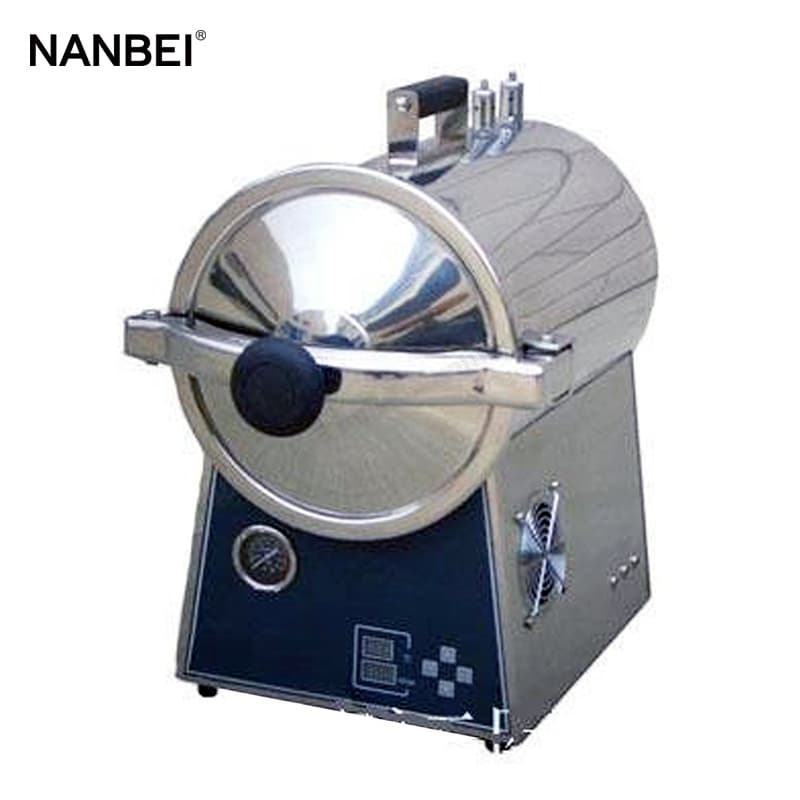

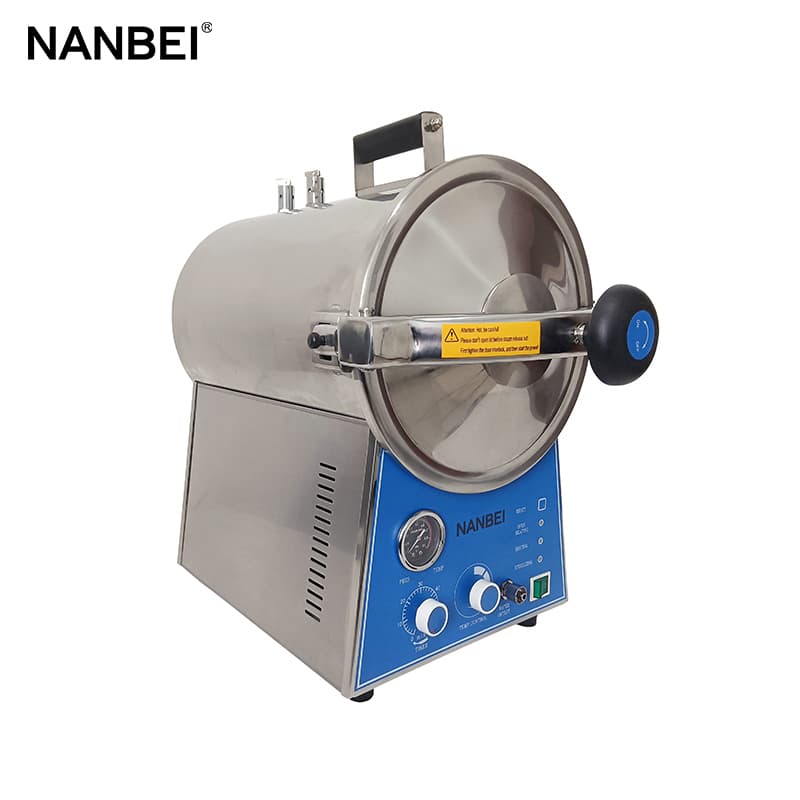

TM-T24D 24L Automatic Steam Sterilizer
TM-T24D 24L Automatic Steam Sterilizer

TM-T24D 24L Automatic Steam Sterilizer

Brand:NANBEI

Model:TM-T24D

Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.

product details

Automatic steam sterilizer


Characteristics:

1.Sterilizing course: Automatic sterilization controlled by computer, easy to operate.

2. Maximum temperature: up to 134 ℃, suit for 4-6 minutes rapidly sterilizing.

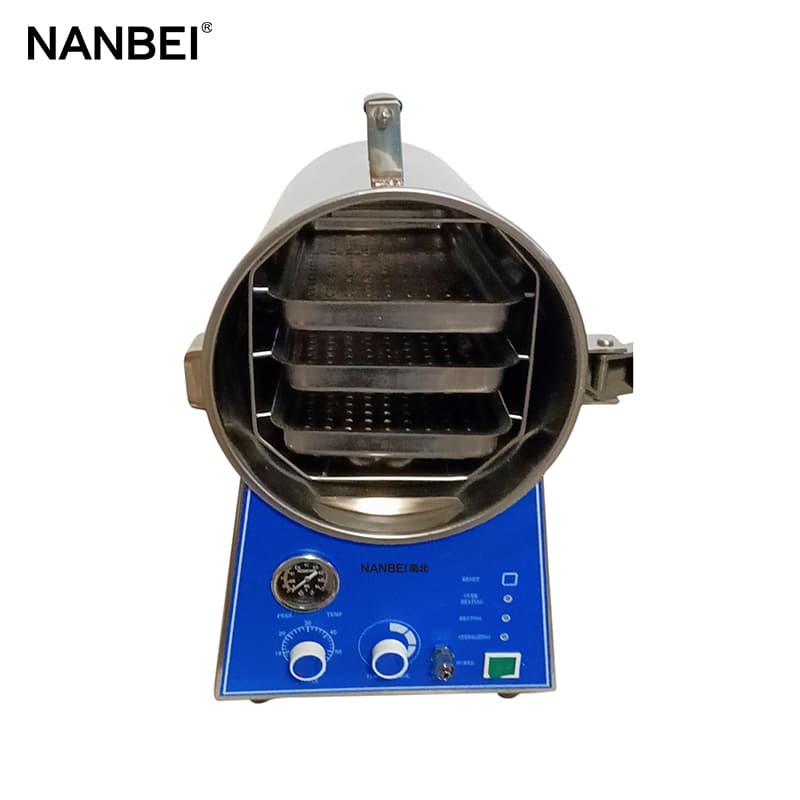

3.The drum is netting wire type.

4.With over-temperature, over-pressure auto-protect device:

5. All the sterilizer body made by stainless steel and can be use for a long time.


Technical data:

 MODEL    TECHNICAL DATA
TM-T24D
Sterilizing chamber volume
24L(φ270×410 mm)
Maximum working pressure
0.22Mpa
Maximum working temperature
134℃
Adjustment of temperature
105-134℃
Timer
0-99 min
Heat average
≤ ± 1℃
Power
1.5 KW / AC 220V 50Hz
Sterilizing plate
340×200×30 mm (3 pieces)
Dimension
560×350×500 mm
Package dimension
620×410×570 mm
G. W/N.W
20/18kg
