YDS-60B-210 Transport-type Liquid Nitrogen Biological Container
YDS-60B-210 Transport-type Liquid Nitrogen Biological Container

YDS-60B-210 Transport-type Liquid Nitrogen Biological Container

Brand:NANBEI

Model:TDS-60B-210

Application:Long distance biological samples refrigerated transport

product details

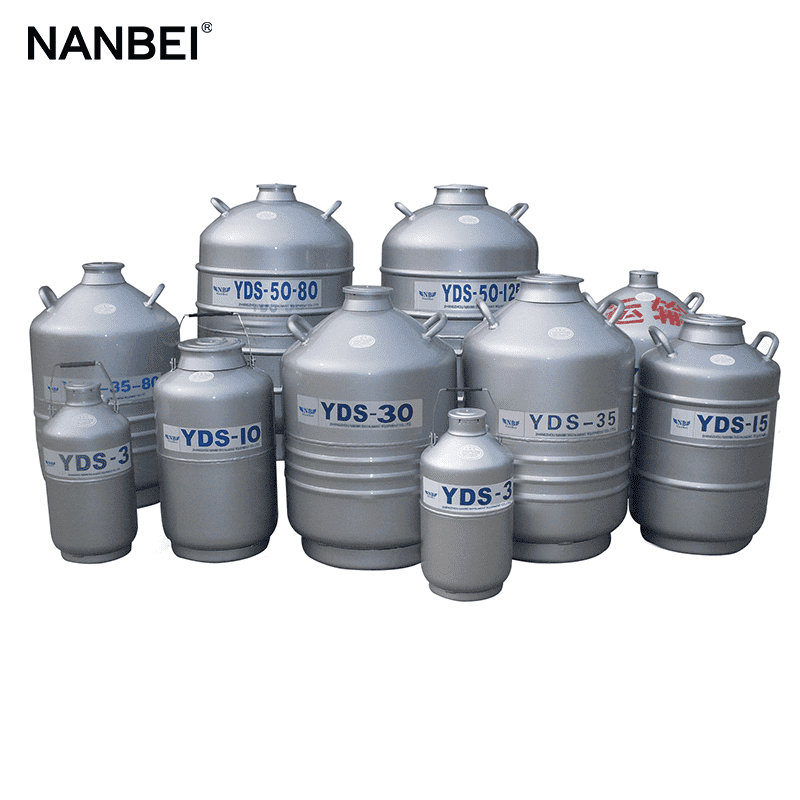

Liquid nitrogen tank divided into the following types, please choose the right model

1.  Storage-type Liquid Nitrogen Biological Containers

2.  Large-diameter liquid nitrogen biological containers

3.  Transport-type liquid nitrogen biological caontainer

4.  50 Liters liquid nitrogen biological containers

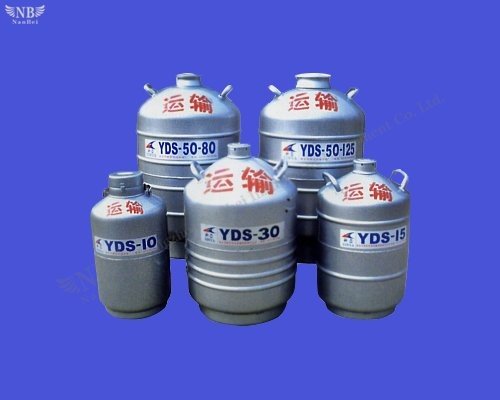

Transport-type liquid nitrogen biological caontainers

The family of products is the need for manual transfer or transport of biological samples in liquid nitrogen, especially in mountainous areas, grasslands and the design of the user. With a compact and lightweight, easy to carry. Static evaporation of liquid nitrogen on low, the use of economic advantages.

1. The use of high-strength aluminum alloy air standards(GBn168-82) manufacturing, therefore light weight products.

2. The products are tailor-made earthquake structure, sturdy and durable, not easily damaged.

3. Cylinders can be numbered to facilitate identification of the storage of samples.

4. With a set of products to protect and prevent the use of products in the bump, bruises.

5. Product key parts neck tube, thermal conductivity at low temperature low, high mechanical strength, color, beautiful, easy to identify.

6. Products from the high vacuum multi-layer insulation designed to provide a vacuum of not less than five years of quality assurance.

Parameters:

Model

Volume

(L)

Neck diameter

≤mm

External Diameter

≤mm

Height ≤mm

Net weight ≤kg

Liquid stored time(days)

Liquid evaporationL/day

B

A

B

A

YDS-10B

11.2

50

305

550

6.5

52

64

0.208

0.172

YDS-15B

16

50

365

600

9

65

85

0.208

0.172

YDS-30B

32

50

446

670

14.5

159

191

0.24

0.2

YDS-35B

35.5

50

446

695

16

179

215

0.223

0.187

YDS-50B-80

50

80

500

850

22

147

189

0.400

0.33

TDS-50B-125

50

125

500

850

22

110

134

0.476

0.4

TDS-60B-210

63

210

560

900

32

63

74

1.000

0.851

stainless steel liquid nitrogen tank

Liquid nitrogen biological containers Accessories

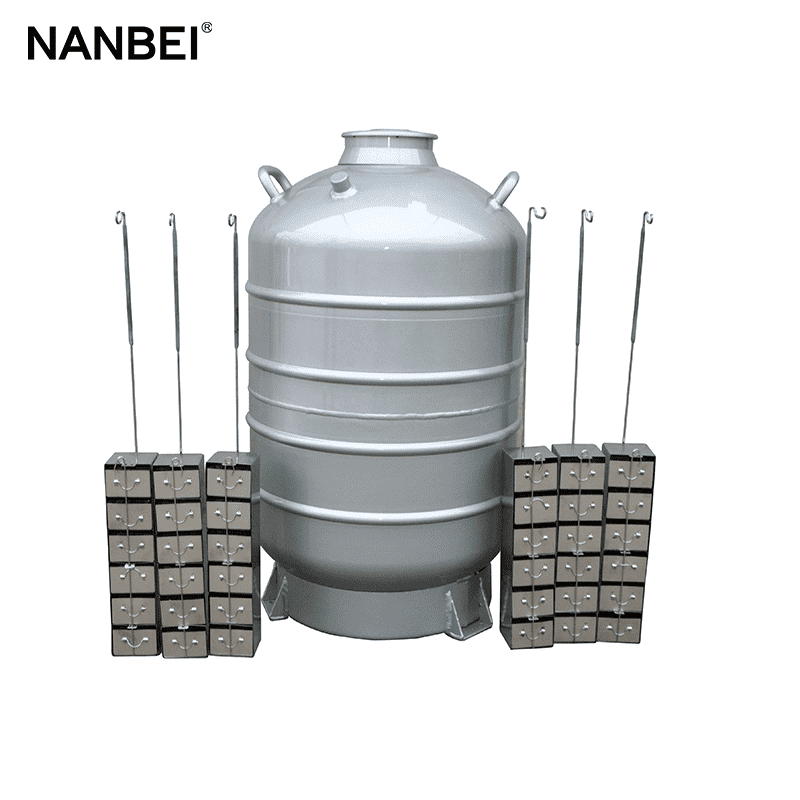

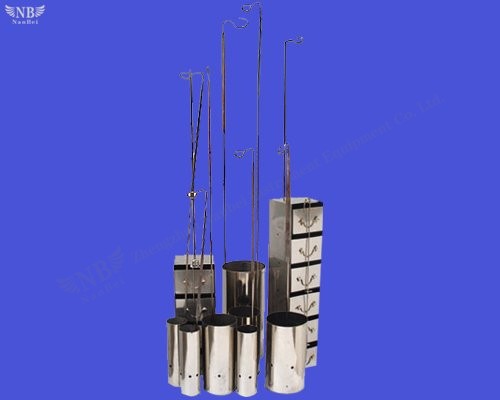

1.Canister:

Made by stainless steel,designed for access to sample much more easier and safe.It can be numbered and easy to identify,has cylinder type,square type.The multi-layer square canister designed for biological instifutes, the design of the hospital store.

20l liquid nitrogen container

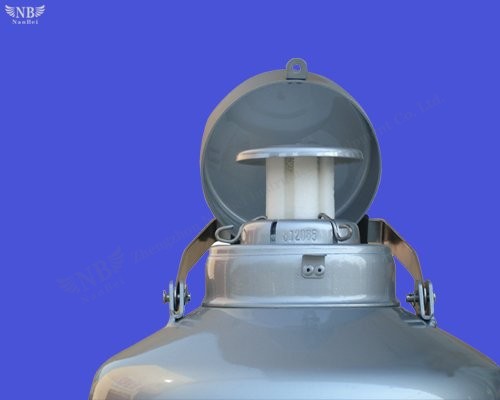

2.Locked cover:

1.made by high-strong alluminum alloy.

2.Have advantages of anti-corrosion,low temperature resistance,provent from frost crack and frozen collapse.

3.Combined with up and down flip cover

liquid nitrogen tank cryogenic

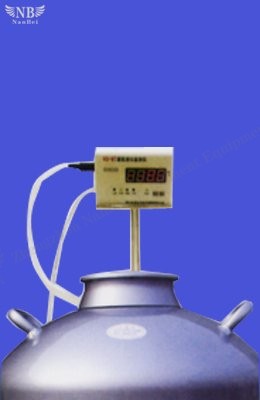

3.Liquid level alarm:

Automatically monitoring biological samples temperature, when the temperature over the range of temperature controlled,sound and light alarm, ensure the safety of stocked samples. Adjustable temperature control range of products 0-196℃, Resolution 1℃.

small liquid nitrogen container

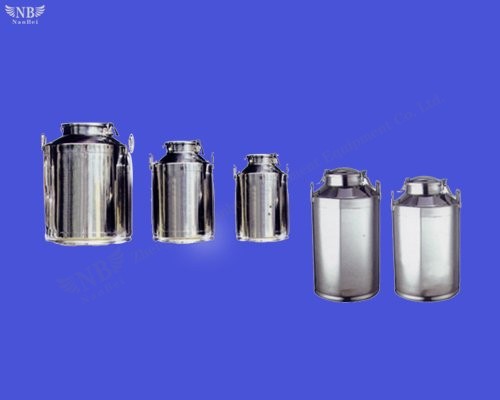

4.Stainless steel storage with milk barrels:

This series product adopt stainless steel production, suitable for storage of liquid milk and transportation, short-term operation relatively large caliber. With nice appearance, the intensity is high, easy to clean thoroughly and reliable sealing advantages.

1.Full stainless steel products, high strength and durability

2.Milk barrels outside surface uses the polishing treatment, concise and easy.

3.The pail inside surface grind arenaceous technology adopted, easy to clean thoroughly.

4.Barrel used for sealing, foodstuff rubber ring with health and safety requirements.

liquid nitrogen tank 1800l
