Introduction:
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Applicable standards:
*National standard( Chinese codex ) /2010
*Corporate standard(Dissolution tester )Q/12XQ0187-2010

Model :RC-8DS
Features:
It has eight vessels and eight poles, with four vessels and four poles in front and other at back.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (680*540*480)mm3


Model :RC-8D
Features:
It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (960*520*480)mm3


Model :RC-8
Features:
It has eight vessels and six poles, with six vessels and six poles in front and other two vessels at back.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (960*440*480)mm3


Model :RC-6D
Features:
It has six vessels and six poles arranged on one line.
The head moves up/down automatically.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of' Chinese codex 2010' are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (960*400*480)mm3


Model :RC-6
Features:
It has six vessels and six poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
It can test by self and alarm automatically. The dissolution parameters of'Chinese codex 2000'are stored in and can be taken out at anytime.
Time can be preset at many points. The beeper sounds automatically to any point, and then the tester automatically runs to the next one.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (1~999)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/1200W or 110V/60Hz/1200W
Dimension (960*320*480)mm3


Model :RC-3
Features:
It has three vessels and three poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (5~900)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/600W or 110V/60Hz/600W
Dimension (510*300*480)mm3


Model :RC-1
Features:
It has one vessels and one poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.

Specifications:
Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (5~900)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/600W or 110V/60Hz/600W
Dimension (260*300*480)mm3

The other models we supply:

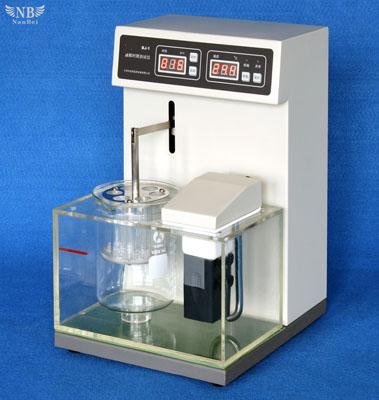

Disintegration tester

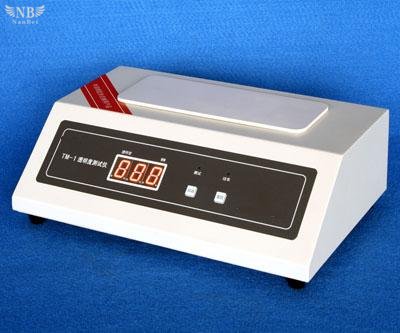

Transparency tester

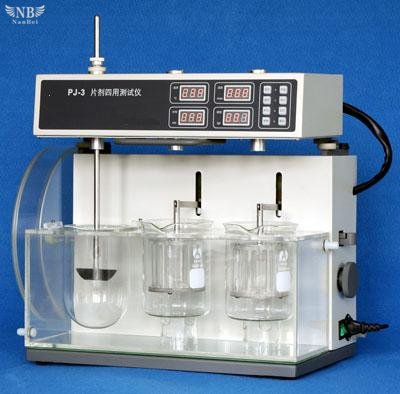

Tablet four-usage tester

disintegration tester apparatus

 transparency tester tm2

 tablet tester

Please click to details

Please click to details

Please click to details

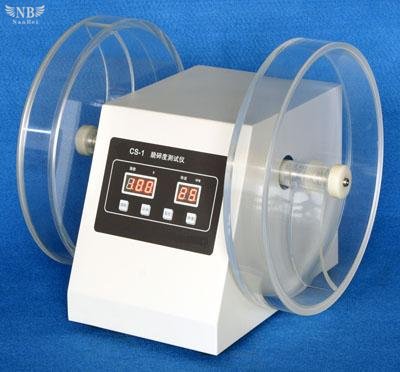

Tablet friability tester

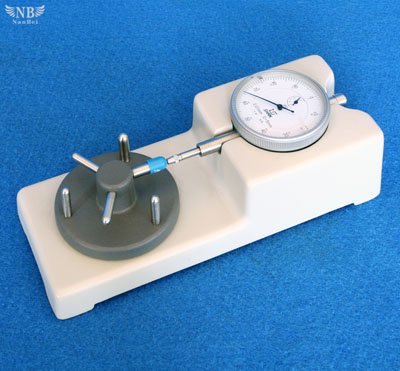

Tablet thickness tester

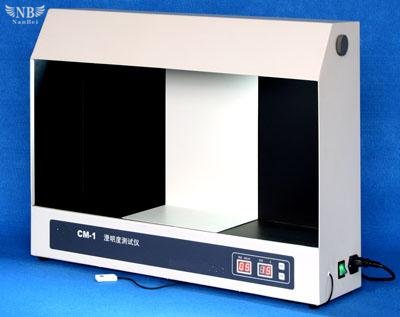

Clarify tester

 cs1 tablet friability tester

 tablet thickness tester hd4

 clarify tester cm1

Please click to details

Please click to details

Please click to details

Bloom viscosity testerTablet hardness tester

Gelatin strength tester

 nd1 bloom viscosity tester

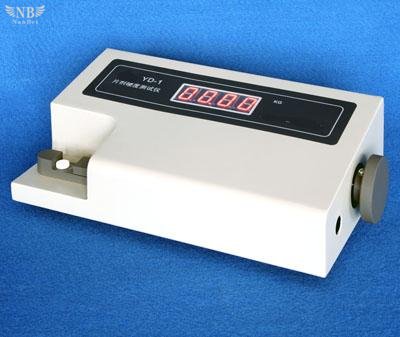

 tablet hardness tester yd1
