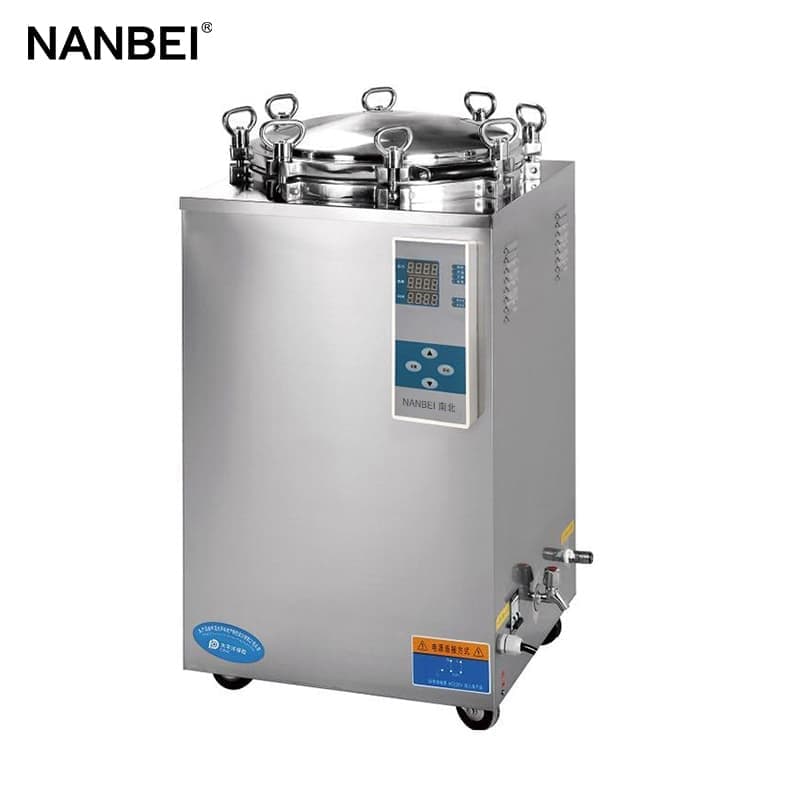

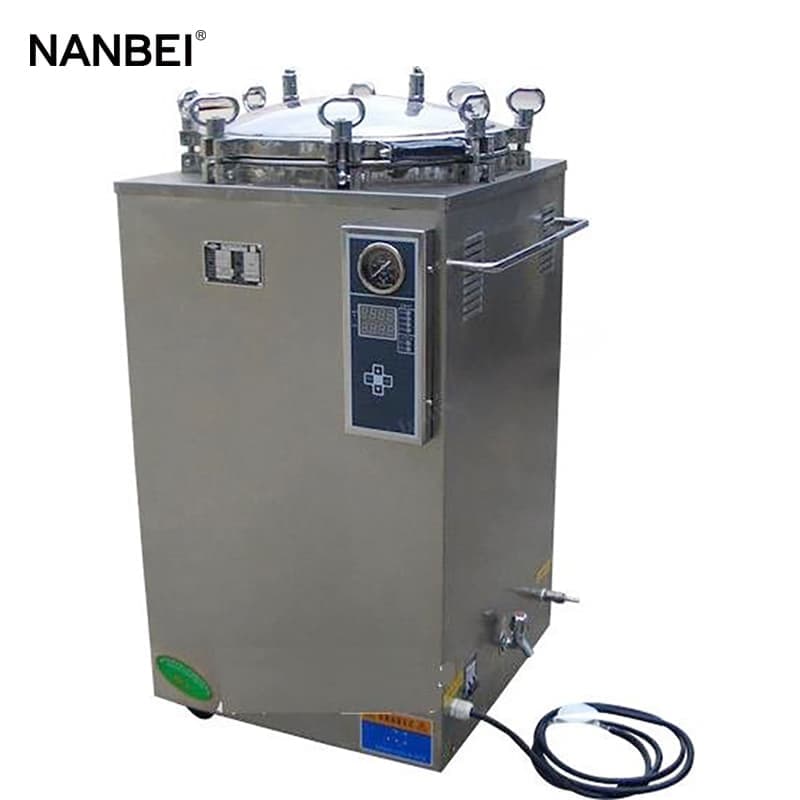

Vertical Pressure Steam Sterilizer
NANBEI Is Professional On Providing One-step Solution Of Laboratory Instruments And Equipment
Brand:NANBEI
Model:LS-100LD
Application:It is ideal equipment for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Digital Automatic Vertical Steam Sterilizer With Drying System
Characteristics:
1 Fully stainless high-alloy steel structure
2 Digital display of working status, touch of key
3 Manual or semi-automatic control
4 Auto discharge the cool air, and steam discharging automatically after sterilization
5 Automatically shut off with beep reminding after sterilization
6 The accident protection system
7 Automatic off of heating elements at reducing of a water level
8 Blocking top cover at working
9 Blockage of starting at opening
10 Heater protection sensor
11 Pressure and water level control
12 With three stainless steel sterilizing baskets
13 Easy to operate, safe and reliable
14 The drying system is optional, which can be equipped according to the customers request
Technical Data：
Model Technical data | LS-35LD (Automatic) | LS-50LD (Automatic) | LS-75LD (Automatic) | LS-100LD (Automatic) |
Chamber volume | 35L(φ318×450) mm | 50L(φ340×550) mm | 75L(φ400×600) mm | 100L(φ440×650) mm |
Working pressure | 0.1-0.22MPa | |||
Working temperature | 120-134℃ | |||
Max working pressure | 0.23 Mpa | |||
Heat average | ≤±1℃ | |||
Timer | 0～99min or 0～99hour59min | |||
Adjustment of temperature | 105～134℃ | |||
Power | 2.5Kw/AC220V. 50Hz | 3Kw /AC220V. 50Hz | 4.5KW AC220V.50Hz | |
Overall dimension | 480×460×850 (mm) | 520×520×980 (mm) | 560×560×980 (mm) | 590×590×1080 (mm) |
Transport dimension | 570×550×970 (mm) | 590×590×1110 (mm) | 650×630×1150 (mm) | 680×650×1220 (mm) |
G.W/N.W | 56Kg/ 42Kg | 68Kg/50Kg | 90Kg/70Kg | 105Kg/85Kg |
