LGJ-18 Ordinary Vacuum Freeze Dryer
LGJ-18 Ordinary Vacuum Freeze Dryer

LGJ-18 Ordinary Vacuum Freeze Dryer

Brand:NANBEI

Model:LGJ-18 standard type

Application:

product details

LGJ-18 series of freeze-dryer:

Application:

LGJ-18 freezing dryer is suitable for freeze-drying experiment in laboratory or a small amount production. So they may meet some conventional needs of laboratory.


Main Characteristics:

1. Match the green environmental protection of international standard

2. LCD display, Chinese interface, display drying curve

3. Big openings of the cold trap, without coil pipe inside, have pre-freeze function

4. Imported compressor, high capability of water-capture, low noise

5. The pre-cooling shelf can be used as draft tube, so it can accelerate the speed of drying

6. Cold trap and operation pane are all stainless steel, corrosion-resistant and bright

7. Transparent bell-cap drying room is safe and visual

8. Stainless steel sample shelf, the space of common sample tray can be adjusted

9. Small volume, convenient operation

vertical freeze dryer

Technical parameter:

Model
LGJ-18
Specification
Ordinary type
Freeze-drying area
0.18㎡/0.27㎡
Cold trap temperature
<-55℃
Vacuum degree
<10Pa
Water-capture capacity
6Kg/24h
Material tray
¢240mm*4/¢240mm*6
Power
1400w
Dimension
635*540*(970+430)mm
Material
1.8L/2.7L
12mm exiling bottle
1320/1980pcs
16mm exiling bottle
740/1110pcs
22mm exiling bottle
360/540pcs

Notice: The temperature of cold trap may reach -80℃ according to the user’s needs.

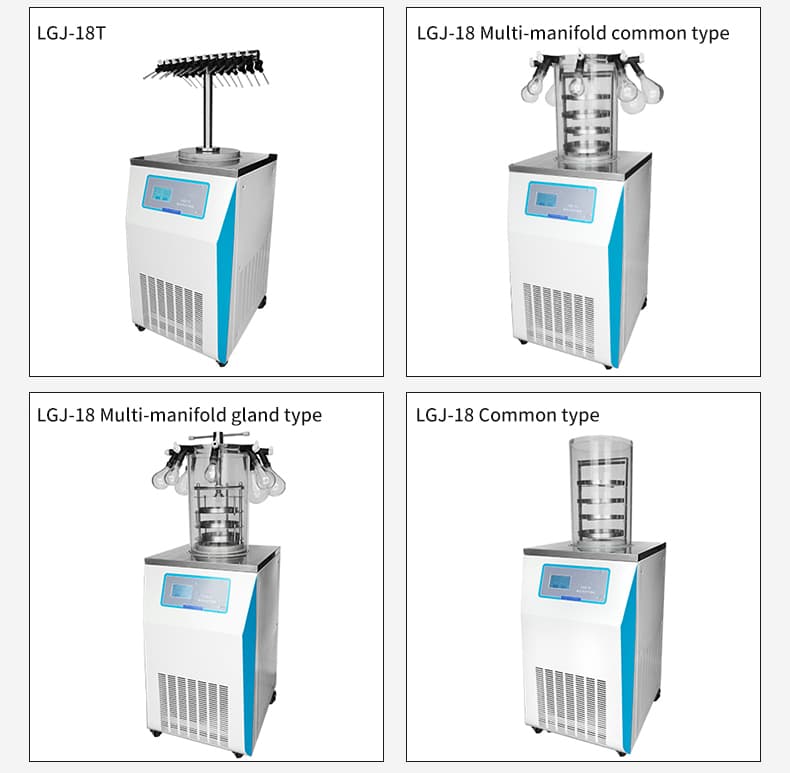

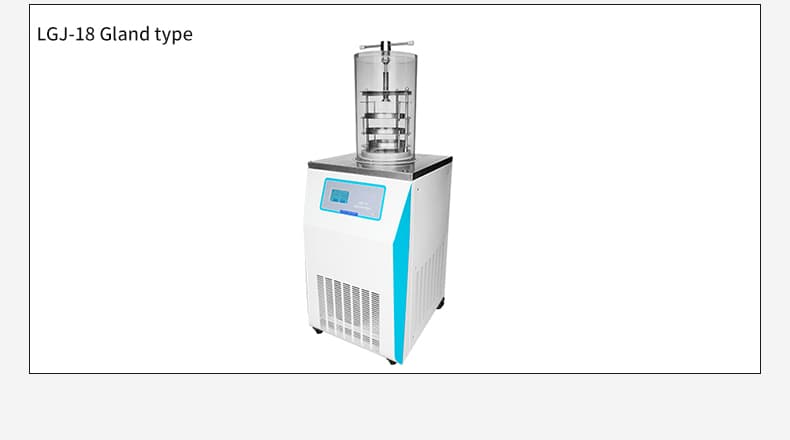

More options

4 (1).jpg

5 (1).jpg

Remark: This product is for civilian use only
