LGJ-10F Top Press
LGJ-10F Top Press

LGJ-10F Top Press

Brand:NANBEI

Model:LGJ-10F top press

Application:

product details

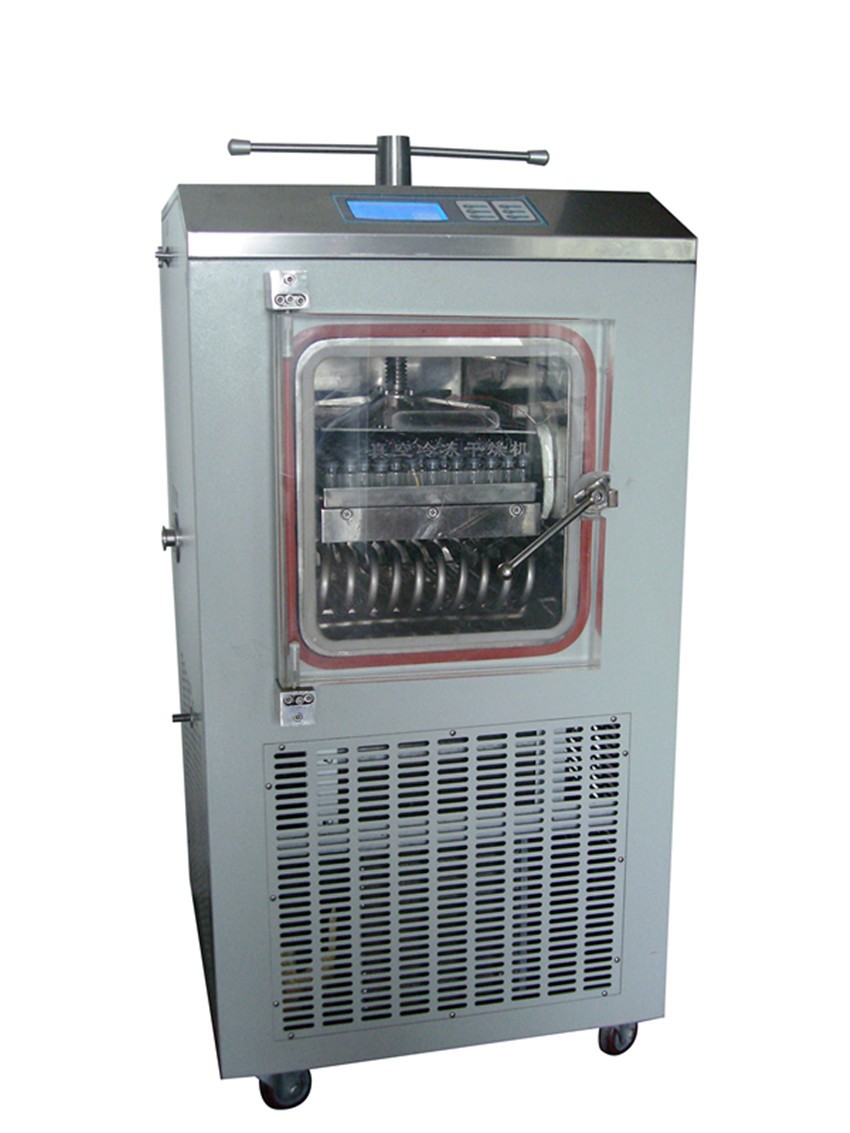

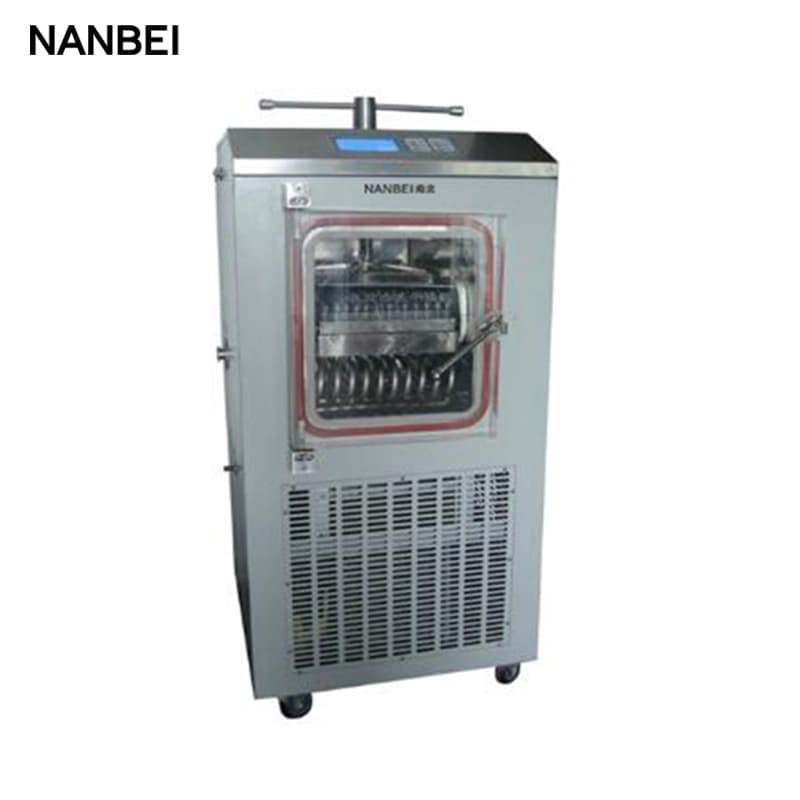

LGJ-10F Vacuum Freeze Dryer

LGJ-10F Freeze Dryer is suitable for freeze drying experiment in laboratory or

pilot scale .This series is our patent products.This series of dryers have electric

heating shelf.Freezing and drying process are finished in the same place. It changes

traditional complicated operation and prevents the product from pollution.


Main Features

With electric heating shelf and PID control standard,with programmable function

16 programs can be stored, each program can be set up 32 segments

LCD display and record drying curves

Stopper by hand is available, vacuum sealing for vials can be completed.

RS232 interface is optional, computer connected to display freeze-drying curve

Air-let-in valve with nitrogen is optional

Eutecticpoint test device is optional

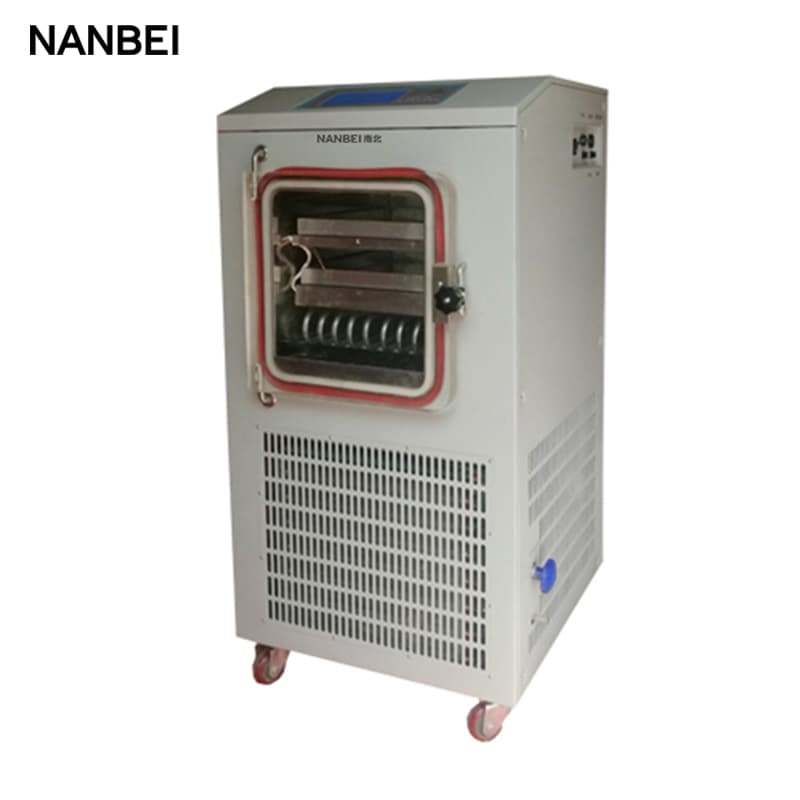

650c1a8b43314.jpg  650c1a9b0eefe.jpg

Technical Parameter

Model

LGJ-10F  (stopper type)

Drying area

0.1 ㎡

shelf

1 layer

Shelf spacing

70 mm

Shelf size

265x400x25 mm

Condenser temperature

Min.≤-80℃

Shelf temperature

-50~+65℃

Bulk capacity

1 Liter

Vacuum degree

≤10 Pa

Condenser capacity

3kg/24 hours

Voltage

220v ,50 Hz

Cooling

Air,draughty, ambient temperature≤25℃

Vial capacity Φ12mm

777 Pcs

Vial capacity Φ16mm

434 Pcs

Vial capacity Φ22mm

220 Pcs

Style of press

by hand

Host Dimension

605x610x(1200+130)mm

Host weight

195kg

Power

1700W

Remark: This product is for civilian use only
