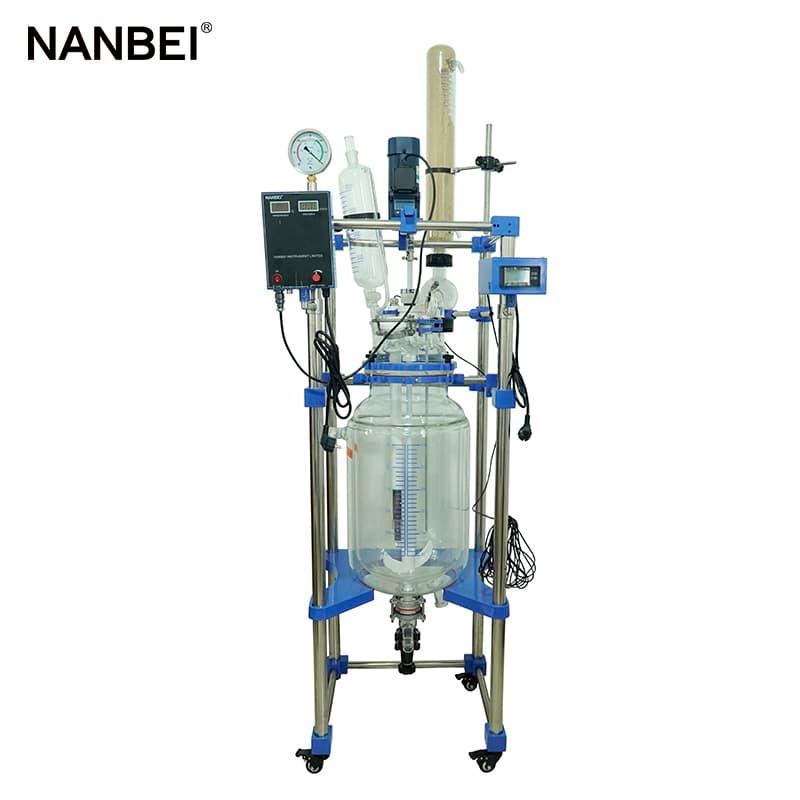

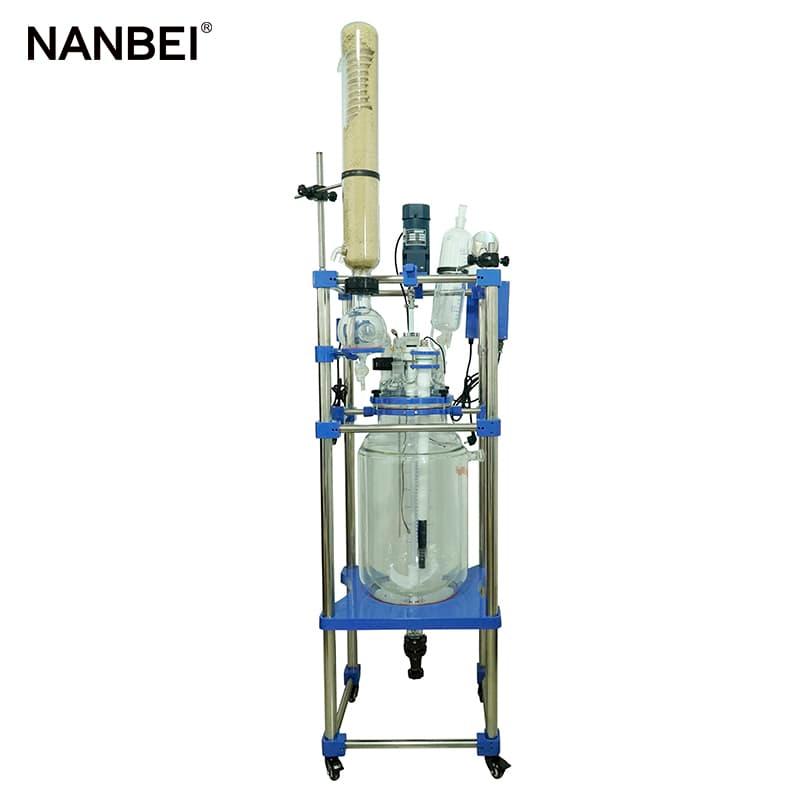

30L Jacketed Glass Reactor
30L Jacketed Glass Reactor

30L Jacketed Glass Reactor

Brand:NANBEI

Model:NB-30L

Application:

product details

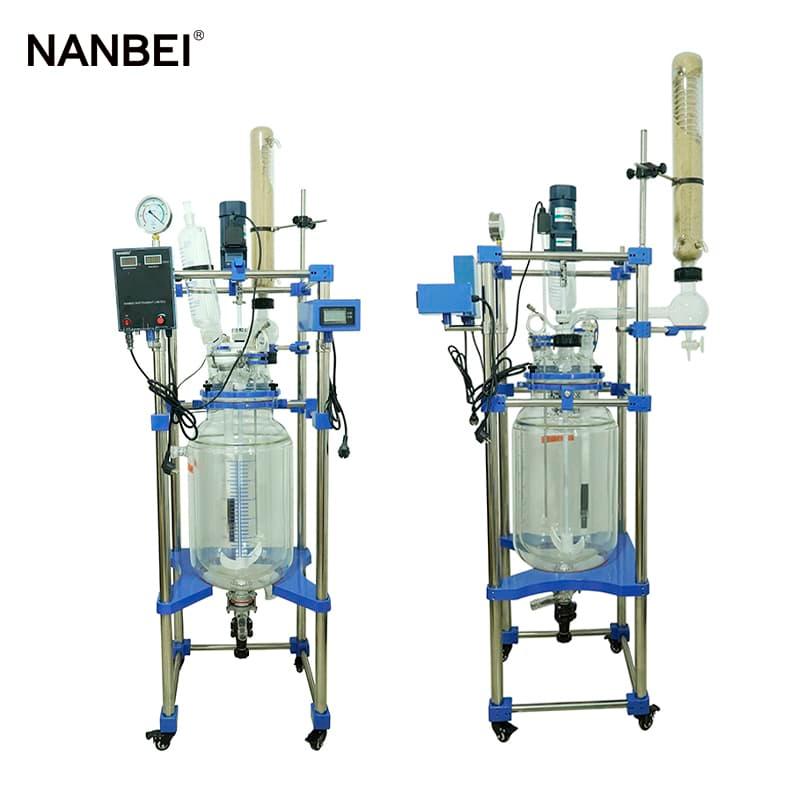

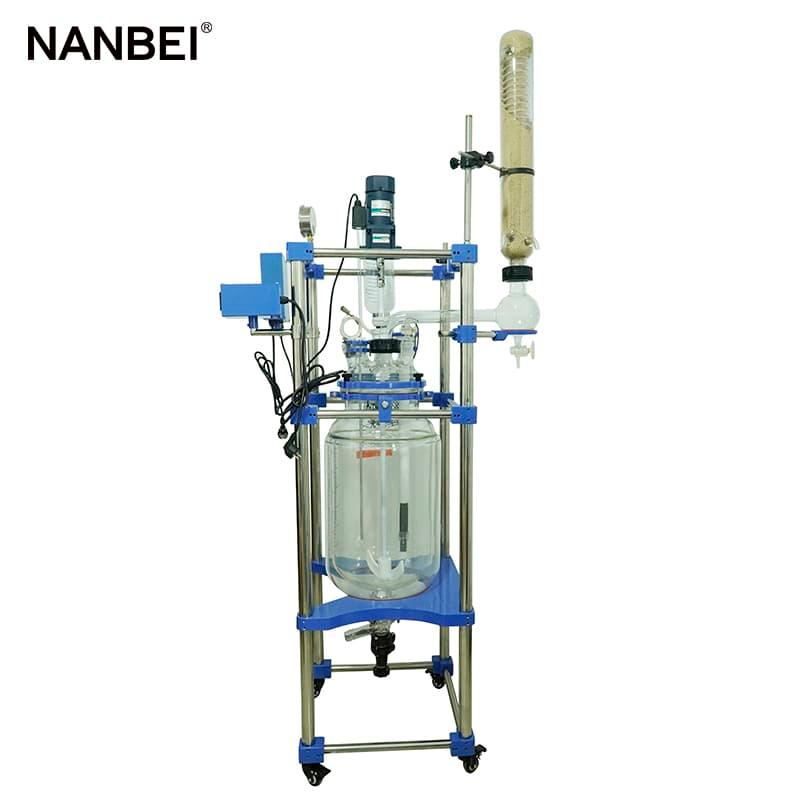

30L Jacketed Glass Reactor

Brief introduction:

The kettle body is designed by double glazing glass reactor, the inner layer into the reaction solution to do the reaction was stirred interlayer can pass into the type of the cold heat source circulating heating or cooling the reaction can also be used in high temperature, low temperature, or vacuum experiment reflux and distillation of the reaction solution. It is the ideal equipment for primary and secondary schools of modern chemistry experiments, biopharmaceutical and synthesis of new materials.


Features:

1. A full set of glassware with GG3.3 borosilicate glass production with good chemical and physical properties

2. Limit temperature of 250°C for high temperature experiments, and limit temperature of -60°C for low temperature experiments.

3. Titanium ring, new titanium alloy mechanical seal, sealing 0.098Mpa.

4. The PT100 temperature, and is a liquid crystal display. More accurate temperature measurement and more convenient.

5. Frequency control, AC induction motor. Constant speed, brushless, no spark, security and stability, and continuous work.

6. Quality 304 stainless steel all-inclusive PTFE stirring rod and a three-bladed propeller structure.

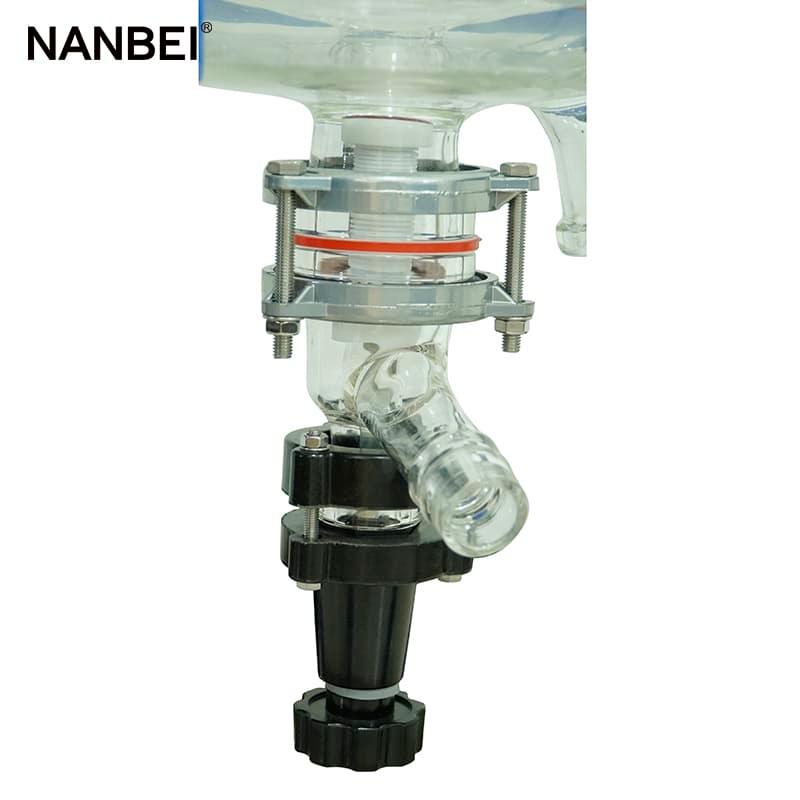

7. The bottom flanged discharge port with a Teflon value, aluminum parts flange fixed container no dead ends.



Technical parameter:

NB-100L
NB-80L
NB-50L
NB-30L
NB-20L
NB-10L
Volume(L)
100
80
50
30
20
10
Power(w)
200
120
120
90
90
90
Speed(rpm)
20-600
Mixing torque(1300r/min)
22000g.cm
22000g.cm
22000g.cm
15000g.cm
15000g.cm
7200g.cm
Inside and outside tube diameter
460*500
420*450
360*405
315*360
315*360
245*260
Size(mm)
880*650*2800
850*650*2700
840*620*2500
820*600*2400
800*500*2100
650*550*2000

 Remark: This product is for civilian use only

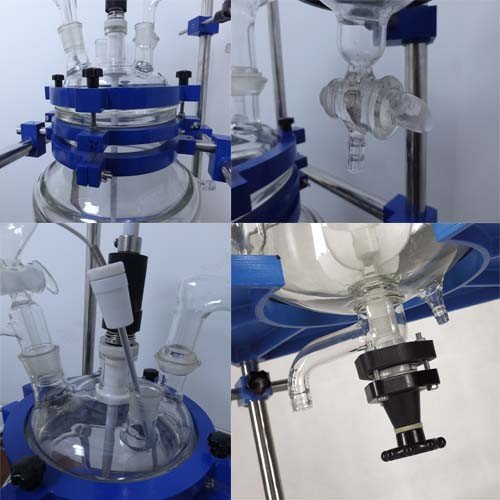

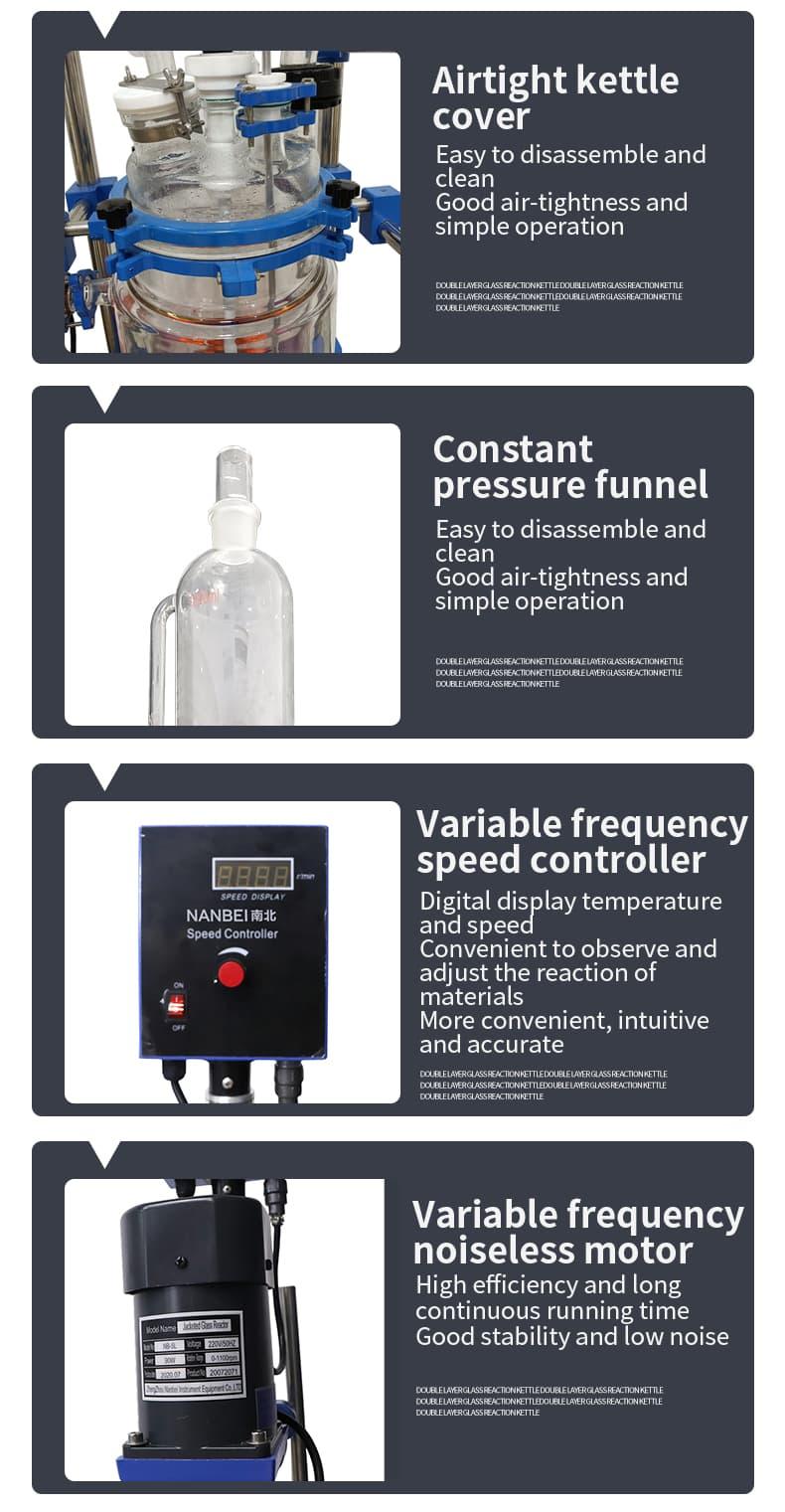

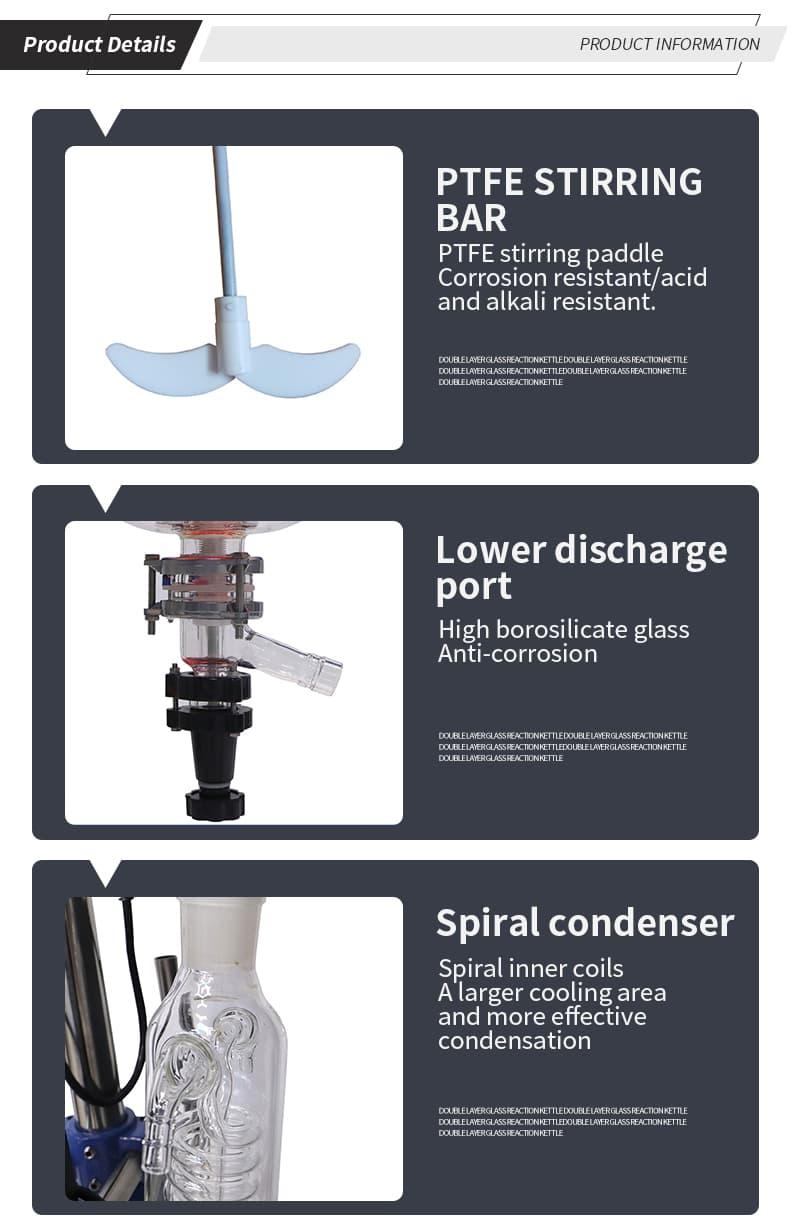

Detail image:
