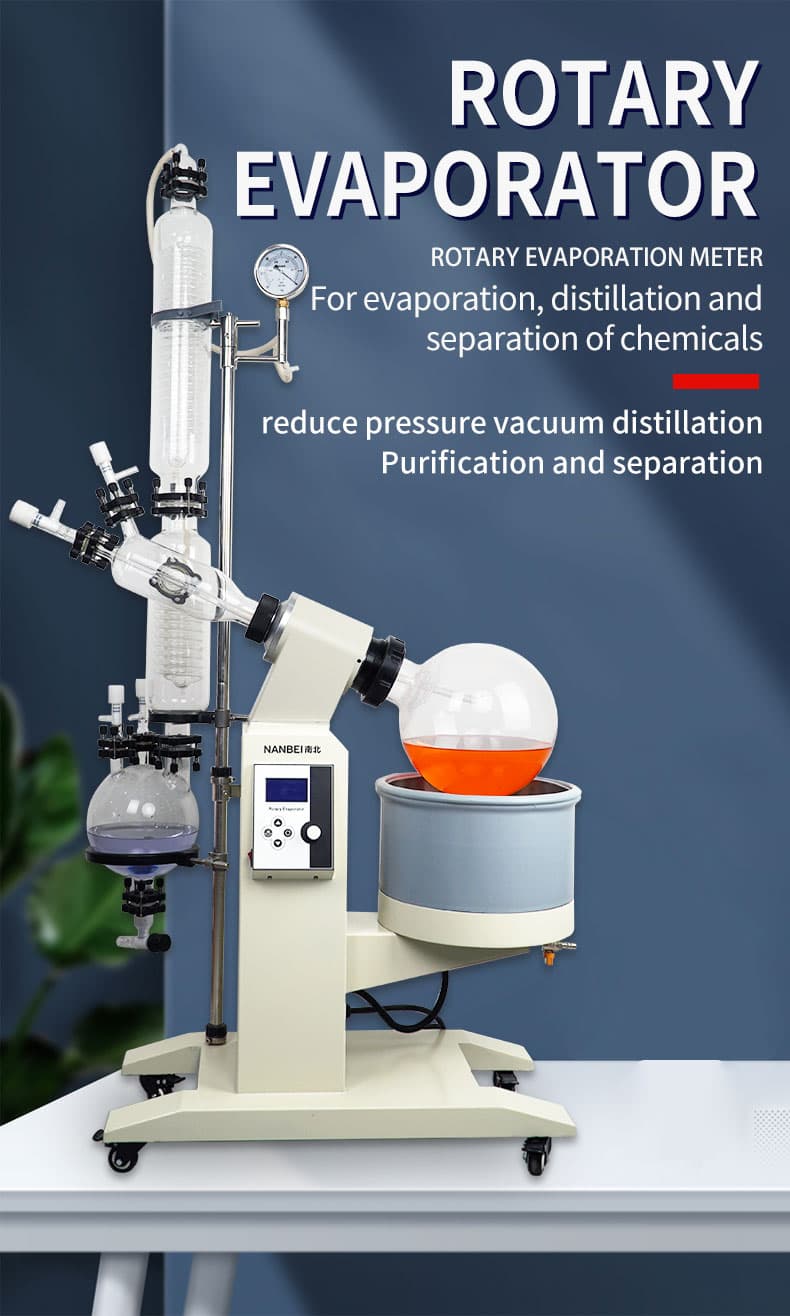

10L Rotary Evaporator
Working principle: Under the condition of vacuum negative pressure, the rotating bottle is rotated at a constant speed by using a speed-regulating rotary twist. The material forms a large area uniform film on the bottle wall. The intelligent constant temperature water (oil) bath pot heats the material in the rotating bottle uniformly and at high speed. After evaporation, the generated solvent vapor passes through the cooling coil of the glass condenser and is quickly cooled and recovered in the collection bottle.
The main capacity of the rotary evaporator (device) produced by NANBEI Company is 1-2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L. Each capacity has different grade models for customers to choose. This product can be used with a vacuum pump to improve the evaporation efficiency (required); it can be used with a low-temperature coolant circulation pump to improve the recovery efficiency. Customers should purchase matching equipment as appropriate.
Parameters
Model | 10L | 20L | 50L |
Glass meterial | GG-17 | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 490*430*540mm | Spray anti-corrosion 630*534*638mm | Spray anti-corrosion 710*620*700mm |
Pot bravery | Stainless steel 350*220mm | Stainless steel 450*250mm | Stainless steel 550*320mm |
Plate size | 474*474 | 534*504 | 804*574 |
Evaporator flask | 10L flange mouth:Φ95mm | 20L flange mouth:Φ95mm | 50L flange mouth:Φ125mm |
Collect flask | 5L flange mouth:Φ50mm | 10L flange mouth:Φ60mm | 20L flange mouth:Φ60mm |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM | 0-110RPM |
Rotary power | 120W | 120W | 180W 220V/50HZ |
Heating power | 3KW | 5KW | 8KW 380V/50HZ |
Heating temp. | 0-400 | 0-400 | 0-400 |
Temp. accuracy | -1 | -1 | -1 |
Lifting stroke | 180mm | 180mm | 180mm |
Voltage | 220V/50HZ | 220V/50HZ | |
Dimension | 970*480*1950 | 1170*540*2200 | 1520*620*2470 |
Packing size | 1350*350*400 1280*570*660 | 1370*700*680 700*680*740 | 1450*390*440 1150*840*660 790*730*790 |
Packing weight | 100 | 123 | 170 |
