50L Rotary Evaporator
50L Rotary Evaporator

50L Rotary Evaporator

Brand:NANBEI

Model:NBRE-50L

Application:

product details

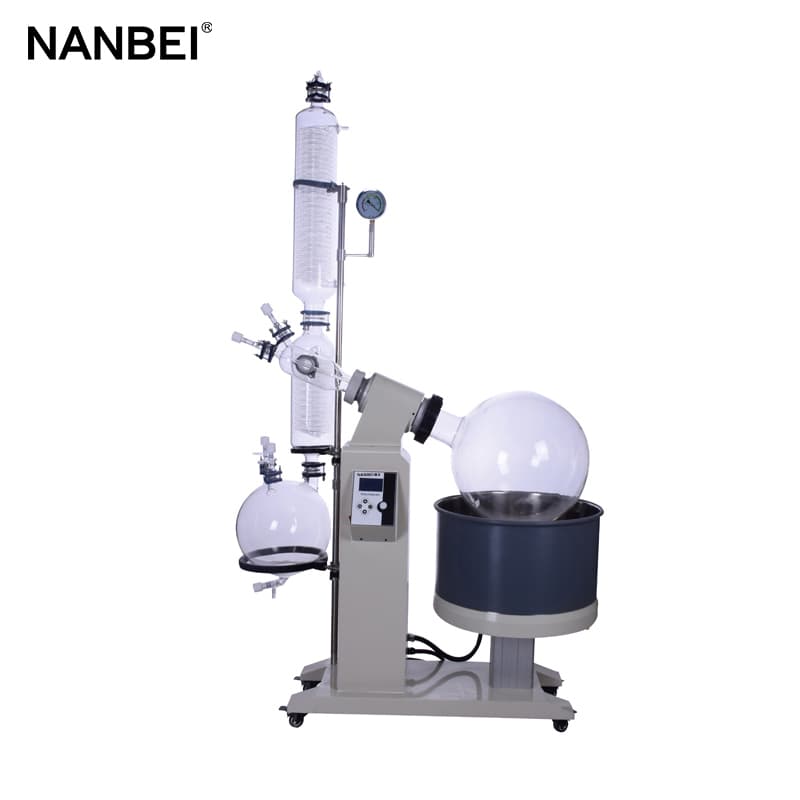

50L Rotary Evaporator

Rotary evaporator (equipment) series products are mainly used in the testing, research and development and production of pharmaceutical, chemical, biological products and other industries. This product uses the principles of constant temperature heating and thin film evaporation to perform evaporation, concentration, crystallization, drying, separation, solvent recovery and other operations under vacuum negative pressure conditions. All parts in contact with the material are resistant to high temperatures and corrosion. Borosilicate glass and polytetrafluoroethylene materials are particularly suitable for the concentration and purification of biological products that are easily decomposed and denatured, and are not easy to produce chemical reactions with various materials.


Working principle:

Under the condition of vacuum negative pressure, the rotary bottle is rotated at a constant speed by using a speed-regulating rotary twist. The material forms a large area uniform film on the wall of the bottle. After evaporation, the generated solvent vapor passes through the cooling coil of the glass condenser and is quickly cooled and recovered in the collection bottle.

The main capacity of the rotary evaporator (device) produced by NANBEI is 1-2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L. Each capacity has different grade models for customers to choose.

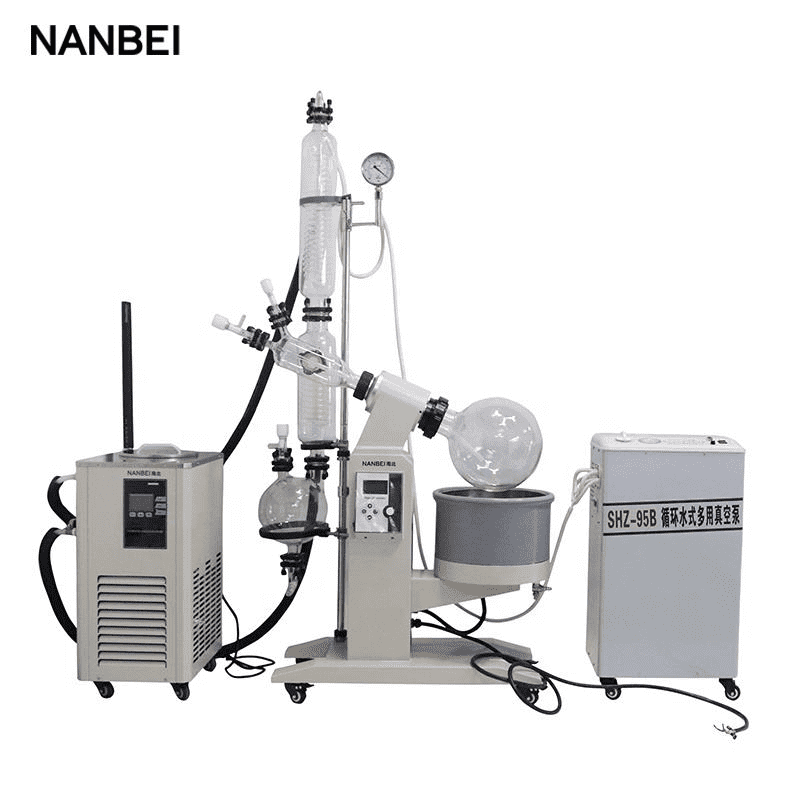

This product can be used with a vacuum pump to improve the evaporation efficiency (required); it can be used with a low-temperature coolant circulation pump to improve the recovery efficiency. Customers should purchase matching equipment as appropriate.


Parameters:

Model

NBRE-5003

NBRE-100L

Glass meterial

GG-17

GG-17

Holder material

Stainless steel

Stainless steel

Pot shell

 Material

Spray anti-corrosion

 710*620*700mm

50L:54*64*66cm 18.4kg  Spray anti-corrosion.

820*820mm

Pot bravery

Stainless steel

550*320mm

Stainless steel

795*330mm

Plate size

804*574mm

1600*830mm

Evaporator

flask

50L

flange mouth:Φ125mm

100L

flange mouth:Φ180mm

Collect flask

20L

flange mouth:Φ60mm

50L

ball mouth:Φ40mm

Vacuum degree

0.098Mpa

0.098Mpa

Rotary speed

0-110RPM

0-110RPM

Rotary power

180W 220V/50HZ

400W 220V/50HZ

Heating power

8KW 380V/50HZ

12KW 380V/50HZ

Heating temp.

0-400℃

0-400℃

Temp. accuracy

±1℃

±1℃

Lifting stroke

180mm

180mm

Dimension

1520*620*2470mm

1700*850*2600mm

Packing size

1450*390*440mm

1150*840*660mm

790*730*790mm



Packing weight

170kg

400kg

Speed mode

Frequency Control

 speed

Frequency Control

 speed

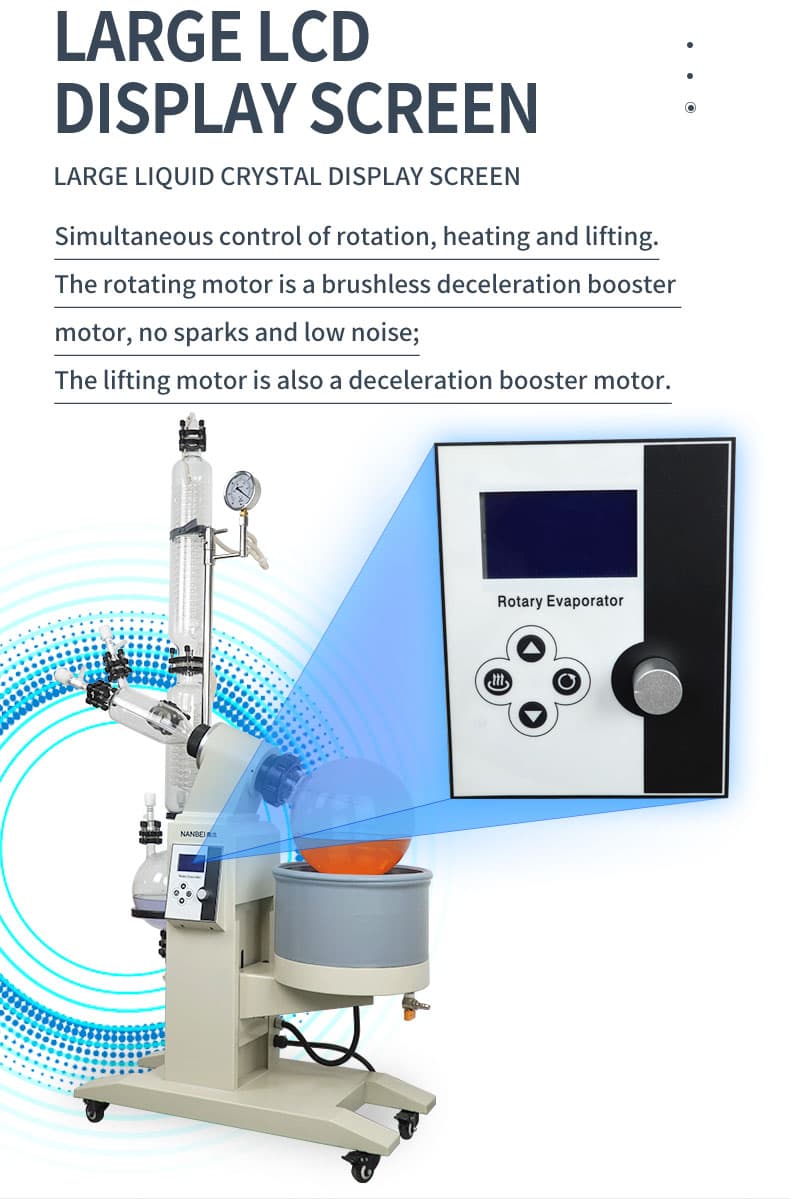

Speed Display

digital

LCD

Temp. display

K type sensor

digital display

K type sensor

digital display

Temp. control

intelligent temp. control

intelligent temp. control

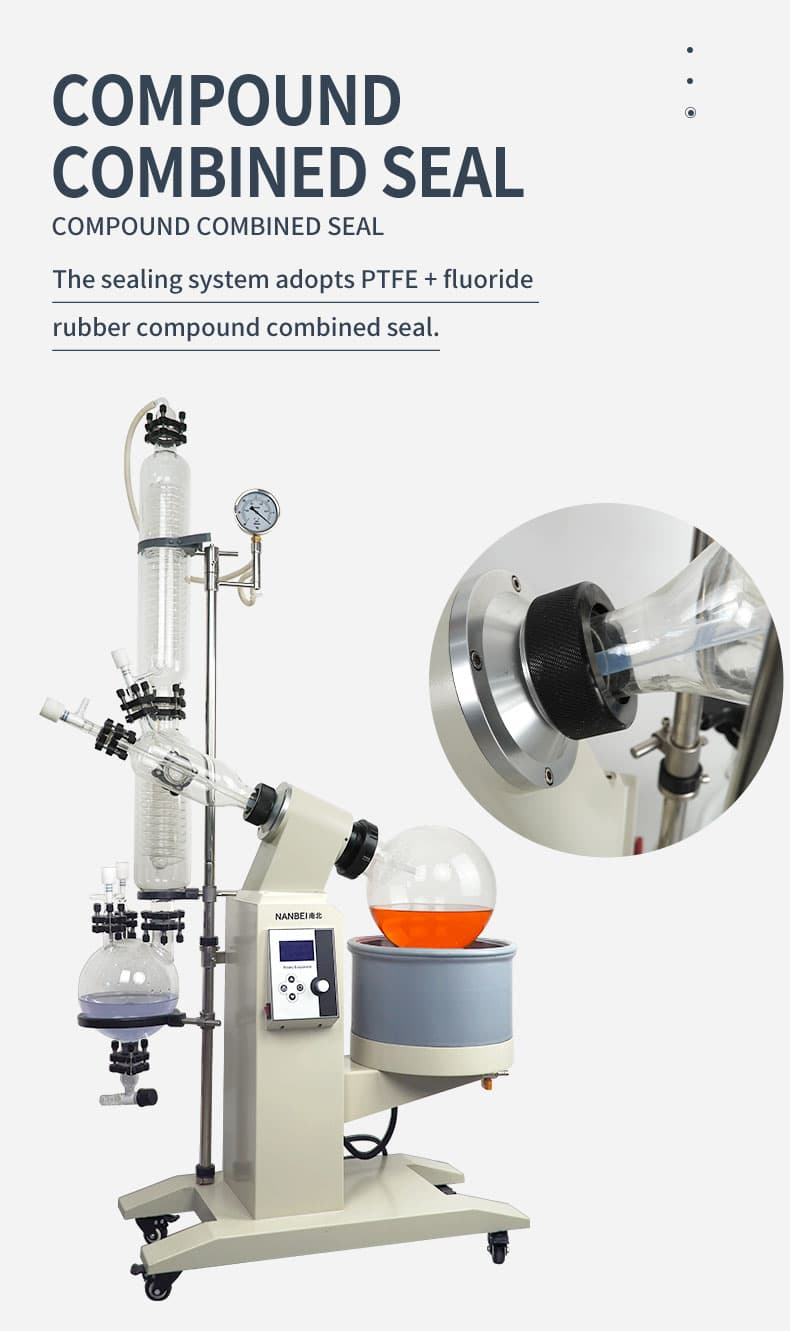

Sealing method

PTFE

PTFE

Condenser

Vertical efficiency three

 reflux condenser

Main:160*840mm
  Deputy:160*530mm

Vertical efficiency three

 reflux condenser

Main:230*950mm
  Deputy:230*530mm

Continuous

collection

non-return valve control

non-return valve control

Lifting mode

Manual lifting

Automatic lifting

Temp.

measurement methods

19#



Continuous

feed

40# Standard mouth

 feed valve

29# Standard mouth

 feed valve

Discharge

mode

PTFE Discharge valve

 flange mouth:Φ60mm

PTFE Discharge valve

 flange mouth:Φ60mm

Vacuum Display

Vacuum gauge

Vacuum gauge
