2000kg/24h Flake ice machine
2000kg/24h Flake ice machine

2000kg/24h Flake ice machine

Brand:NANBEI

Model:ZNPB2.0Z-DF/F

Application:

product details



Application Field:

● Supermarkets, hotels, bars, etc

● Slaughtering industry

● Fishery cooling and packing

● Food processing

● Fresh preservation for fruit, vegetable, etc

● Pharmaceutical application



Commercial Flake Ice Machine Features:

Reasonable Design

NANBEI ice machine is with integrated structure design for saving installation space, and commercial flake ice machine equips with corrosion-resistant ice storage bin.

Stability

NANBEI always aims at researching and manufacturing high efficient and energy-saving refrigeration system; the flake ice machine adopted international ice machine processing technology and experience, and it can produce quality flake ice and constantly operate over 20,000 hours without failure.

Sanitation

NANBEI flake ice machine is made of stainless steel, pure aluminium alloy or PE material; flake ice is made inside evaporator so it is not exposed to ambient conditions and it drops into ice bin without mechanical handling, its hygiene level reaches international standards of HACCP and FDA.

Water & Energy Saving

NANBEI flake ice machine recycles all unfrozen water back to the ice machine so as to ensure all water is converted to ice and save water resources; Our unique evaporator processing technology makes it better heat exchange efficiency and saves more energy, moreover our patented internally-scraping ice scraper can help reduce energy consumption.



Commercial Flake Ice Machine Technical Specifications

Model

Capacity (tons/24h)

Refrigeration Capacity (kw)

Total Power

Weight

Dimension (L*W*H)(mm)

ZNPB0.5Z-DF/F

0.5

3.05

2.27 KW

160 kg

1310*1050*1882

ZNPB1.0Z-DF/F

1

6.25

4.21 KW

210 kg

1310*1050*2055

ZNPB1.5Z-DF/F

1.5

8.15

5.42 KW

330 kg

1650*1460*2044

ZNPB2.0Z-DF/F

2

10.32

6.72 KW

360 kg

1650*1460*2076

ZNPB2.5Z-DF/F

2.5

13.12

8.52 KW

390 kg

1650*1460*2095

ZNPB3.0Z-DF/F

3

19.17

9.82 kW

470 kg

1650*1460*2186



★Note:

1) Standard Supply Power: 380V/50Hz/3Phase. Ice machine can be customized upon non-standard power.

2) Cooling System: Air Cooling System

3) Supply Water: Fresh Water

4) Refrigerant: R22/R404a

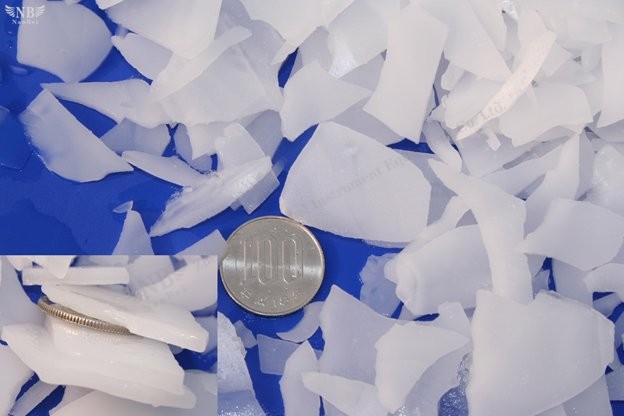

5) Ice Thickness: 1.5~2mm

6) Standard Working Condition: Ambient temperature: 25; Water supply temperature: 16; Evaporation temperature: -20.

7) Applicable Working Condition: Ambient temperature: 5~40; Water supply temperature: 0~40.

8) The dimension includes flake ice machine and ice storage bin.

9) Specifications are subject to change without notice.
